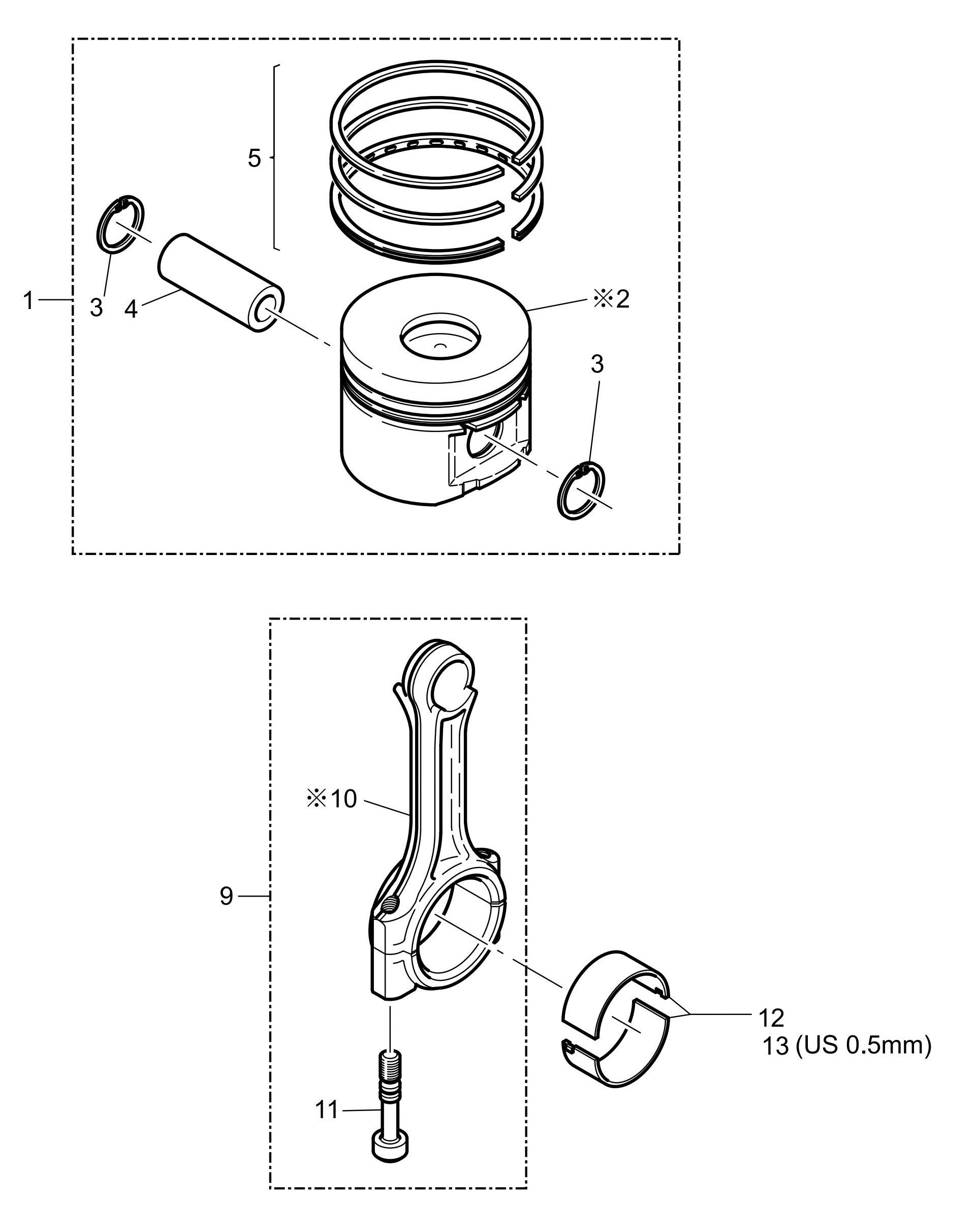

MVH408DZ HATZ 1B50 Engine Piston, Conrod, Cylinder Assembly Parts

MVH408DZ HATZ 1B50 Engine Piston, Conrod, Cylinder Assembly Parts

  • MVH408DZ HATZ 1B50 Engine Piston, Conrod, Cylinder Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
01384320 Piston Assy. 93Mm for Multiquip Mikasa Plate Tamper Compactor
$2.19
3
50482300 Circlip 22X1 for Multiquip Mikasa Plate Tamper Compactor
$13.01
4
50566400 Gudgeon Pin 22X13X60 for Multiquip Mikasa Plate Tamper Compactor
$2.19
5
01384410 Piston Ring Set 93Mm for Multiquip Mikasa Plate Tamper Compactor
$2.19
9
01343500 Connecting Rod Assy. for Multiquip Mikasa Plate Tamper Compactor
$454.40
11
04100500 Screw, Connecting Rod for Multiquip Mikasa Plate Tamper Compactor
$18.03
12
01679800 Big End Bearing for Multiquip Mikasa Plate Tamper Compactor
$65.63
13
01692700 Big End Bearing Us -0.5 for Multiquip Mikasa Plate Tamper Compactor
$112.42
View full details
