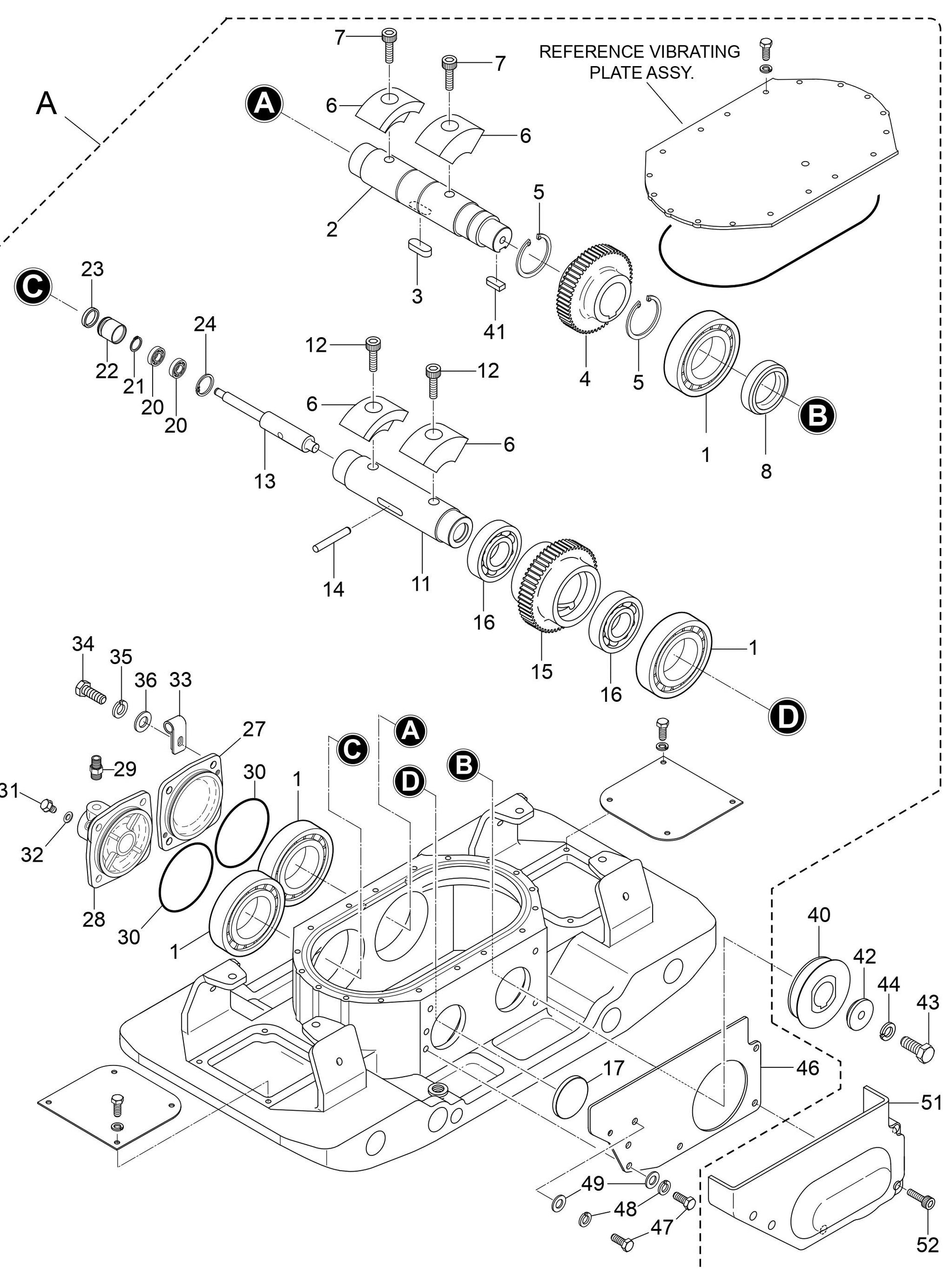

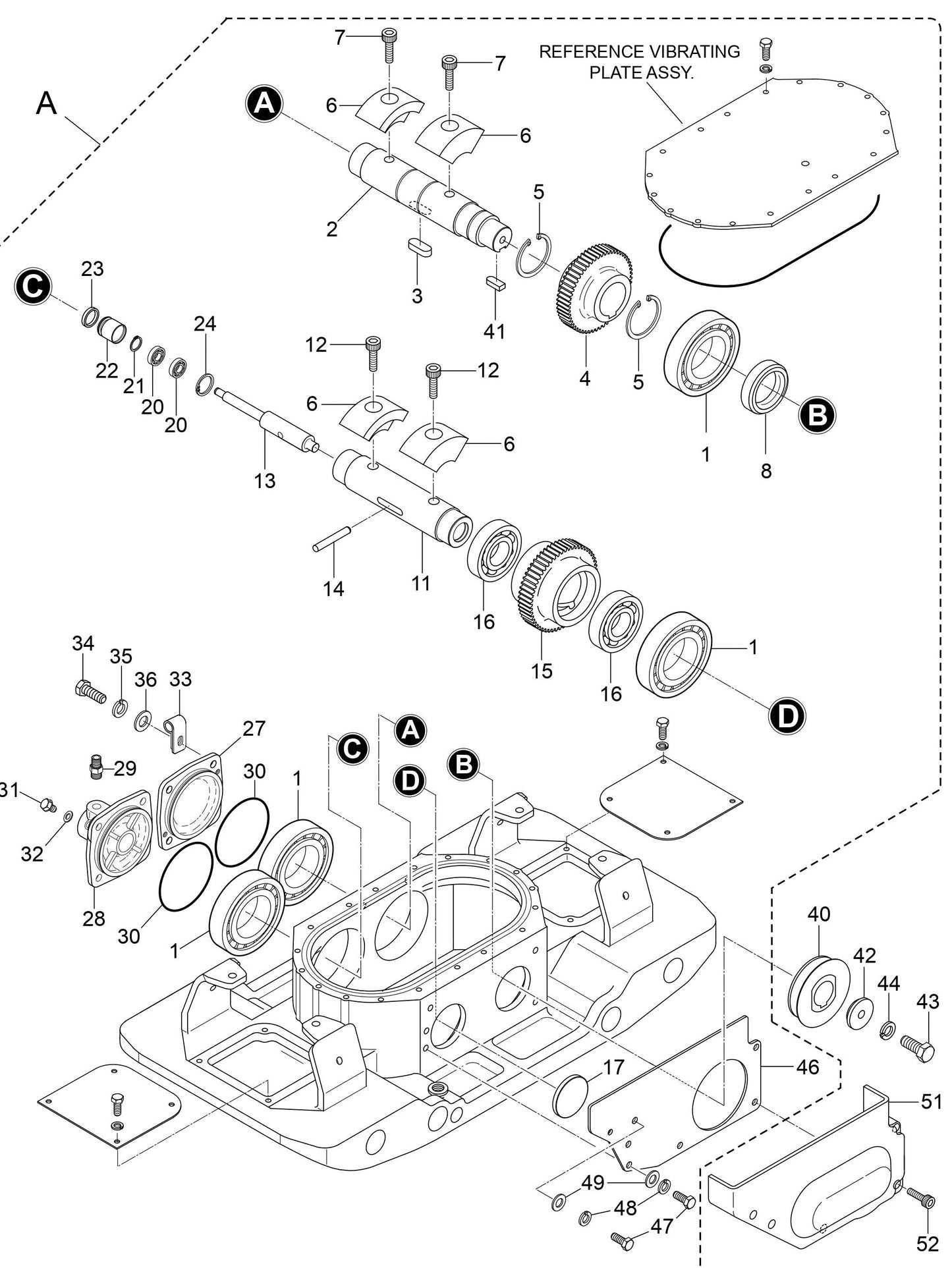

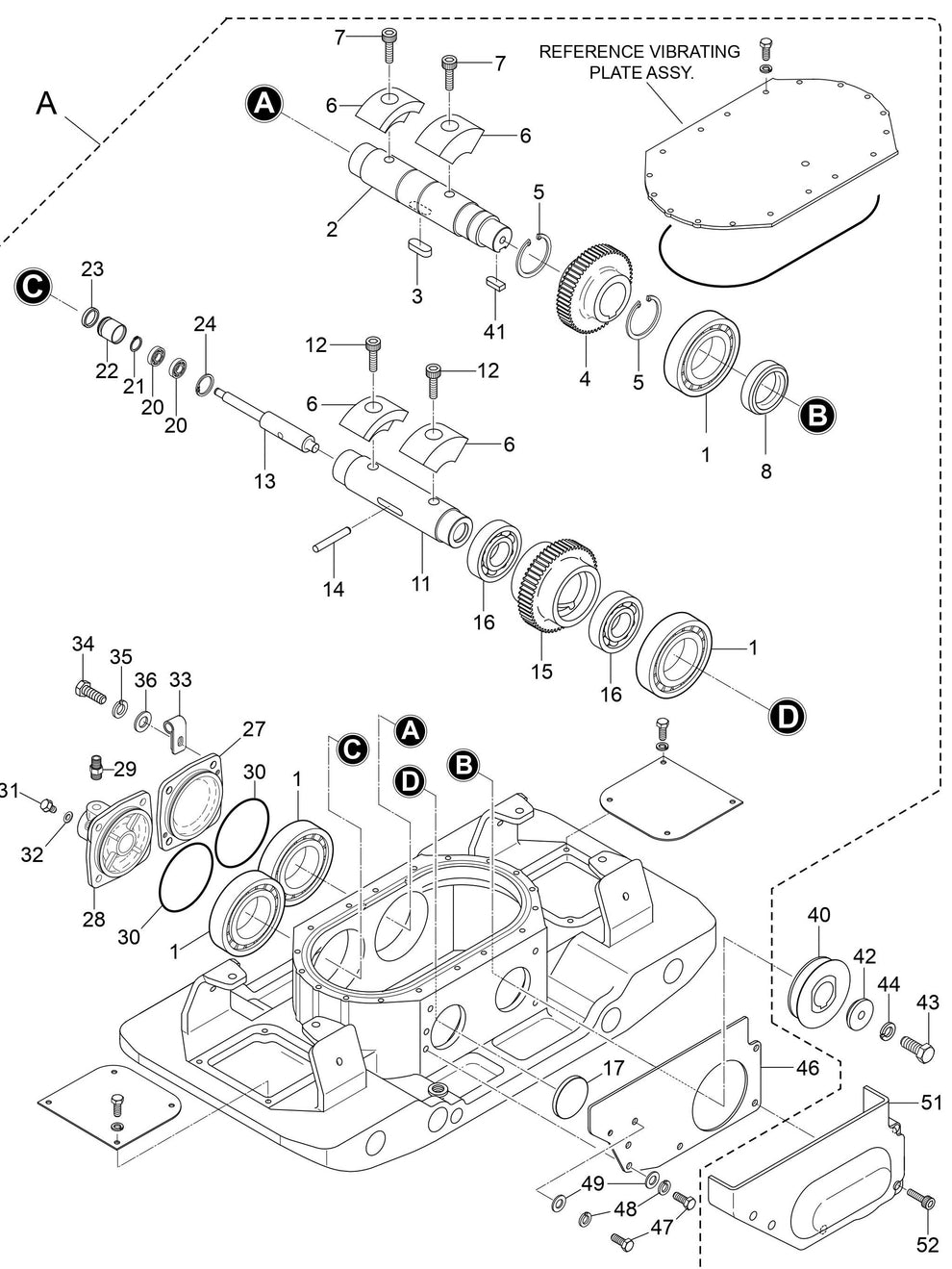

MVH408DZ Vibrator Assembly Parts

MVH408DZ Vibrator Assembly Parts

  • MVH408DZ Vibrator Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
A
468910040 Vibrating Plate Assy. (Old) . for Multiquip Mikasa Plate Tamper Compactor
$4,086.70
A
468910041 Vibrating Plate Assy. (New for Multiquip Mikasa Plate Tamper Compactor
$4,086.70
1
047920120 Roller Bearing for Multiquip Mikasa Plate Tamper Compactor
$222.31
2
456331060 Rotary Shaft, Drive for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$648.11
2
467355910 Rotary Shaft, Drive for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$422.87
3
951405370 Key 15X10X39 Rr for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$17.52
4
456327150 Gear, Drive for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$821.01
5
080200550 Stop Ring for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$8.36
6
468352210 Eccentric Rotator for Multiquip Mikasa Plate Tamper Compactor
$128.25
7
009120301 Socket Head Bolt 16X40 for Multiquip Mikasa Plate Tamper Compactor
$36.40
8
060105030 Oil Seal for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
8
060405040 Oil Seal for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$29.50
11
456337670 Rotary Shaft, Driven for Multiquip Mikasa MVH306D Plate Tamper Compactor
$723.92
12
009120302 Socket Head Bolt 16X30 for Multiquip Mikasa Plate Tamper Compactor
$29.20
13
456337380 Piston Rod for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$208.80
14
456010010 Knock Pin 10X70 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$10.41
15
467351910 Gear (Driven) for Multiquip Mikasa Plate Tamper Compactor
$1,026.06
16
040006911 Bearing 6911 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
Call for Price call for price call for price
17
953010030 Seal Cap for Multiquip Mikasa Plate Tamper Compactor
$13.97
20
042506000 Bearing 6000Zzsg for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$18.66
21
0080000010 Stop Ring for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$2.19
22
455435051 Piston for Multiquip Mikasa Plate Tamper Compactor
$90.41
23
455010070 Packing for Multiquip Mikasa Plate Tamper Compactor
$27.58
24
080100260 Stop Ring for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$6.59
27
467352540 Bearing Cover for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$85.51
28
467219070 Cylinder (R) for Multiquip Mikasa Plate Tamper Compactor
$395.03
29
954010020 Connector Pt, Pf1/4 for Multiquip Mikasa Plate Tamper Compactor
$12.22
30
050101050 O- Ring G- 105 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.02
31
001720812 Flange Bolt 8X12 for Multiquip Mikasa Plate Tamper Compactor
$3.29
32
953404600 Copper Packing 8 X 16 X 2 for MVH200GH Reversible Plate Compactor by Multiquip Mikasa
$5.75
33
959408880 Clip 15 (M10) for Multiquip Mikasa Plate Tamper Compactor
$4.99
34
0105091025 Bolt 10X25 for Multiquip Mikasa Plate Tamper Compactor
$2.19
35
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
36
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
40
465345090 Pulley for Multiquip Mikasa Plate Tamper Compactor
$106.53
41
951404970 Key 12X8X30 for Multiquip Mikasa Plate Tamper Compactor
$16.87
42
456437920 Washer, Pulley for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$68.40
43
012212035 Bolt 12X35 for Multiquip Mikasa Plate Tamper Compactor
$5.49
44
030212300 Washer Sw M12 for Multiquip Mikasa MT75HS Jumping Jack Rammer
$1.21
46
467351920 Guide, Belt Cover for Multiquip Mikasa Plate Tamper Compactor
$60.35
47
014208020 Bolt for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$4.39
48
030208200 Lock Washer M8 for Multiquip Mikasa MT62HS Jumping Jack Rammer
$8.66
49
401450080 Flat, Washer for QP3THX Trash Pump by Multiquip
Call for Price call for price call for price
51
468218960 Belt Cover, Lower for Multiquip Mikasa Plate Tamper Compactor
$304.41
52
001520856 Socket Head Bolt 8X80 for Multiquip Mikasa Plate Tamper Compactor
$4.35
A
Call for Price call for price call for price
2
Call for Price call for price call for price
42
Call for Price call for price call for price
View full details
