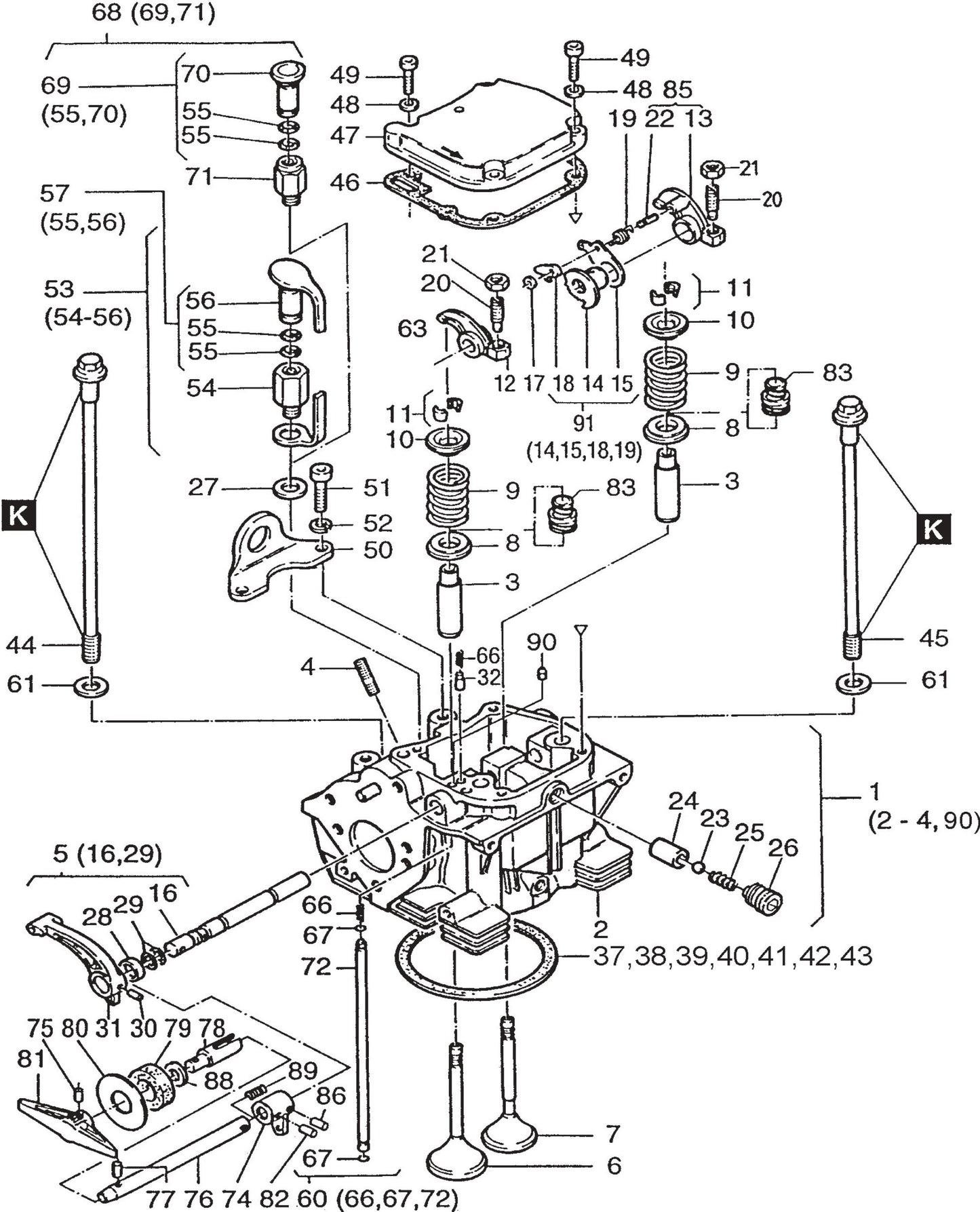

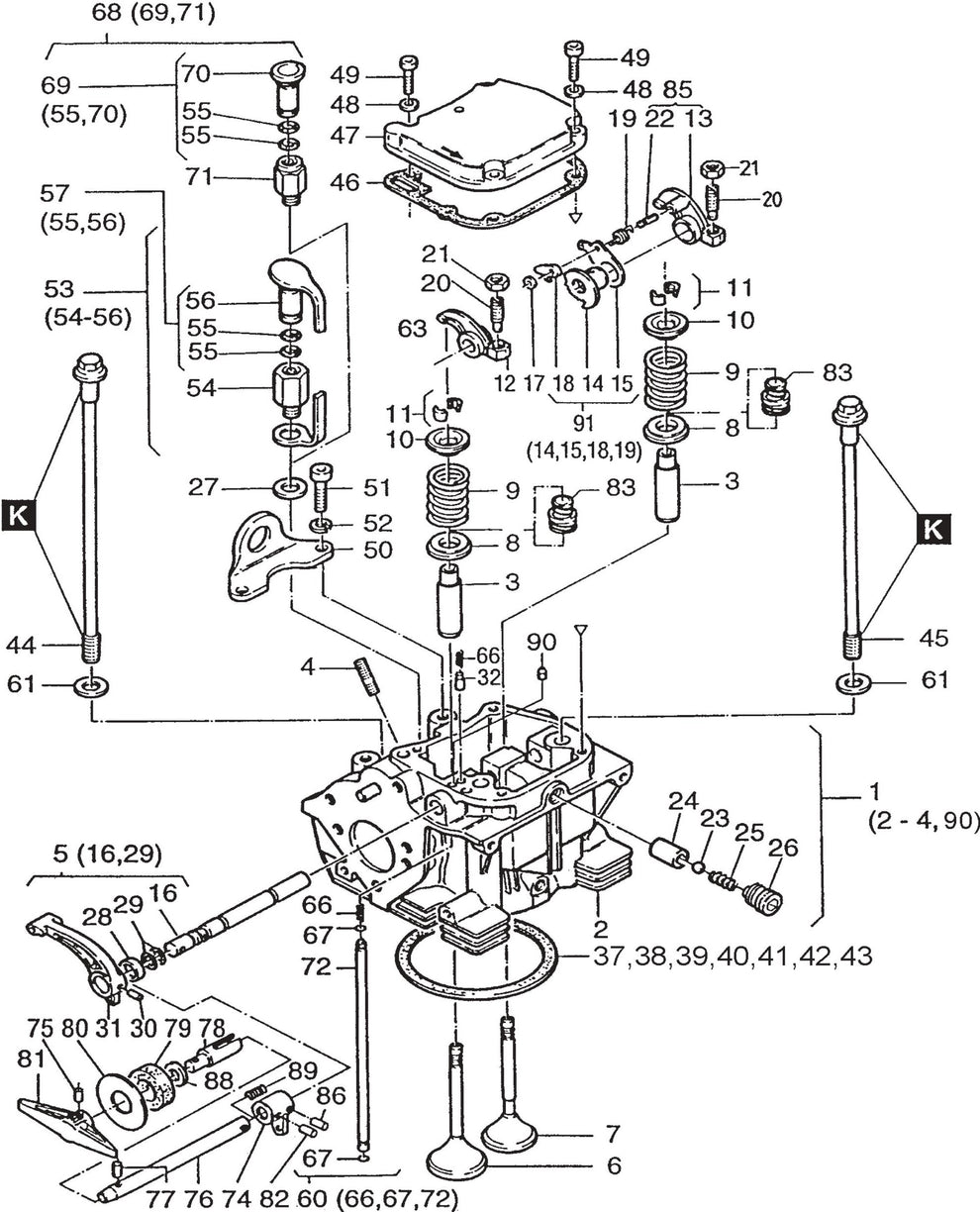

MVH502DSB HATZ 1D81S Engine Cylinder Head Assembly Parts

MVH502DSB HATZ 1D81S Engine Cylinder Head Assembly Parts

  • MVH502DSB HATZ 1D81S Engine Cylinder Head Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
01264810 Cylinder Head Assy. for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$1,641.26
1
01499610 Cylinder Head Assy for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.19
3
04008710 Valve Guide for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$127.27
4
50038400 Studm8X35 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$4.91
5
04068910 Rocker Shaft Assy "C" for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.19
5
04068920 Rocker Shaft Assy for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$229.55
6
04005001 Valve Inlet for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$81.83
6
04091001 Valve Inlet for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$80.43
7
04005101 Valve Exhaust for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$87.43
7
04091100 Valve Exhaust for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$85.22
8
04005201 Washer for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$18.13
9
04005300 Valve Spring for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$18.57
10
04005401 Cup for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$31.38
11
03786300 Valve Collet for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$11.79
12
04003710 Rocker Inlet for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$164.75
15
03778401 Spring Sheet for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$3.29
17
50117200 Circlip for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$2.19
18
03365710 Ratchet F. Decompr. for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$29.61
19
03366001 Spring for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
Call for Price call for price call for price
20
03783000 Adjusting Screw for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$20.32
21
03173100 Hexagon Nut for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$4.35
23
50123800 Ball 7Mm Iii for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.99
24
04004700 Bush for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$48.61
25
04004800 Pressure Spring for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$4.35
26
01245200 Adjusting Screw for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$33.94
27
50001100 Joint A 12 X 15.5 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.89
28
04048900 Rubber Ring for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$8.55
29
40022401 O-Ring 8 X 2 Gray for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$4.99
30
50034700 Pin4X22 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.39
31
04009810 Handle for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$15.76
32
04004100 Pin for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.19
35
04068800 Gask. F. Cyl. Head 0.5 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$19.28
36
04036800 Gask. F. Cyl. Head 0.6 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$19.87
37
04036500 Gask. F. Cyl. Head 0.7 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$20.32
38
04036600 Gask. F. Cyl. Head 0.8 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$22.59
39
04002700 Gask. F. Cyl. Head 0.9 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$39.11
40
04002800 Gask. F. Cyl. Head 1.0 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$26.48
41
04002900 Gask. F. Cyl. Head 1.1 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$28.05
42
04003000 Gask. F. Cyl. Head 1.2 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$30.51
43
04003100 Gask. F. Cyl. Head 1.3 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$32.22
44
04003200 Cyl. Head Screw 305 Mm for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$88.00
45
04003300 Cyl. Head Screw 258 Mm for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$90.88
46
04006111 Valve Cover Gasket 16> for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$9.42
47
01245410 Valve Cover for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$117.77
48
50081200 Lock Washer A6 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.19
49
50170800 Allenscrewm6X25 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.99
50
04008100 Lifting Bracket for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$44.21
51
50366300 Allen Screw M 8X 20 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$3.95
52
50208500 Lock Washer 8 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.39
53
01493200 Device Housing for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$53.08
55
40081700 O-Ring 12 X 16 X2 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$3.95
57
01308300 Closing Plug . for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$16.51
60
01269700 Oil Pressure Pipe for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$40.26
61
03457500 Disc F. Stud for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$14.96
66
04004200 Pressure Spring for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$4.35
67
50330100 O-Ring 4 X 1.2 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.39
68
01280600 Oil Filter Device for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$75.82
69
01275610 Closing Plug Assy 46Mm for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$33.47
74
04047920 Interm. Piece Decomp. for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$100.22
75
50132000 Rollpin4X16 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.99
82
50132000 Rollpin4X16 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.99
76
04048220 Decompression Shaft ���C for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$45.32
77
50034500 Rollpin4X14 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.99
78
04048110 Intermediate Piece for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$53.11
79
03579800 Rubber Washer for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$16.09
80
04048000 Washer 10.5 X 50 X 0.8 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$5.49
81
03778200 Handle 6 X 18 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$12.53
83
50405200 Valve Stem Seal Cap for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$14.31
85
01285010 Rocker Exhaust for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$154.40
86
50034600 Rollpin4X18 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.99
88
03787300 Shim 0.2 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$5.49
89
04097200 Pres. Spring Decompr. for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.35
90
04038500 Oil Restrictor Valve Assy. for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$3.29
90
04104300 Oil Restrictor Vave for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.35
91
01557600 Gearwheel F. Decompr. for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$136.58
