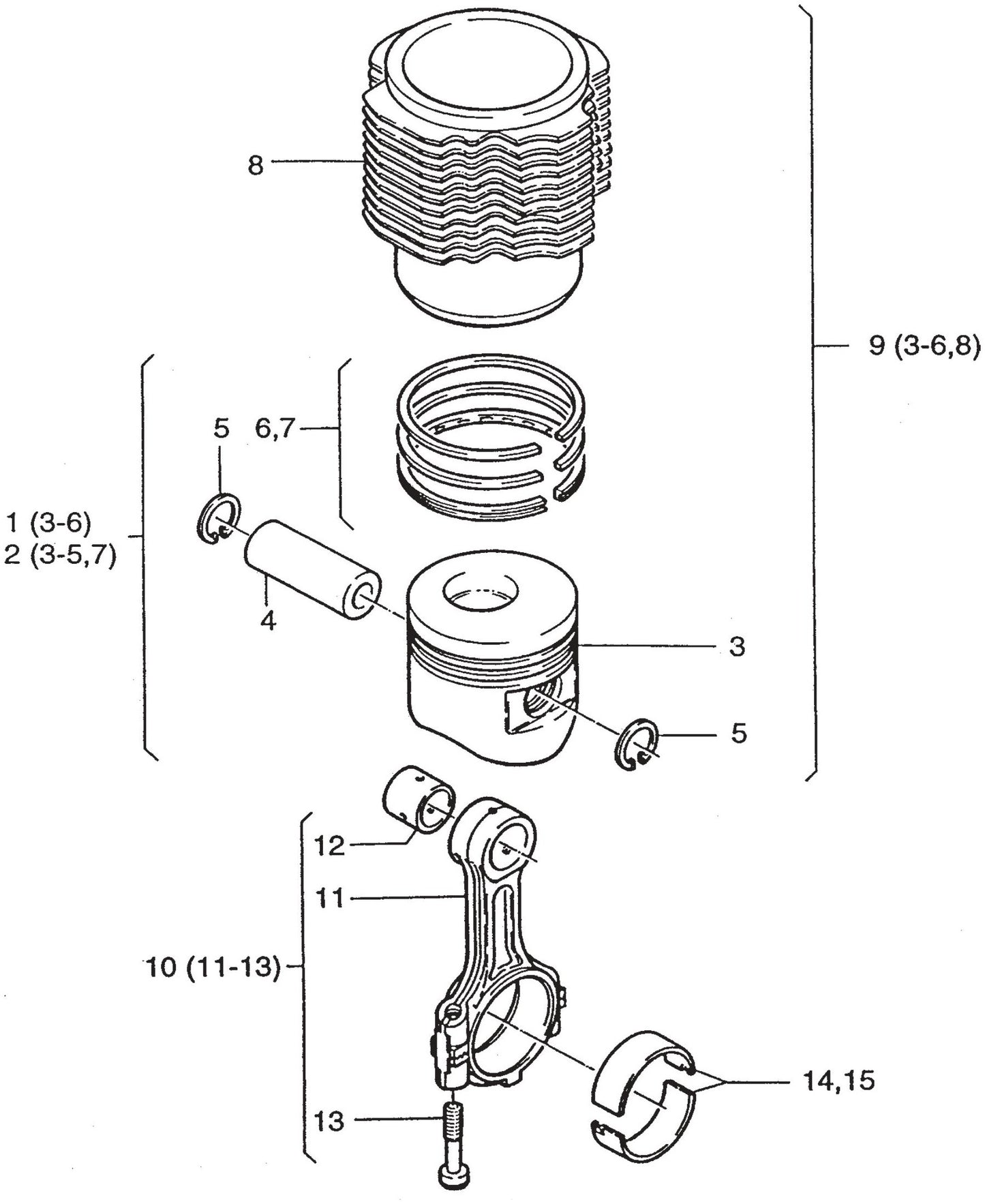

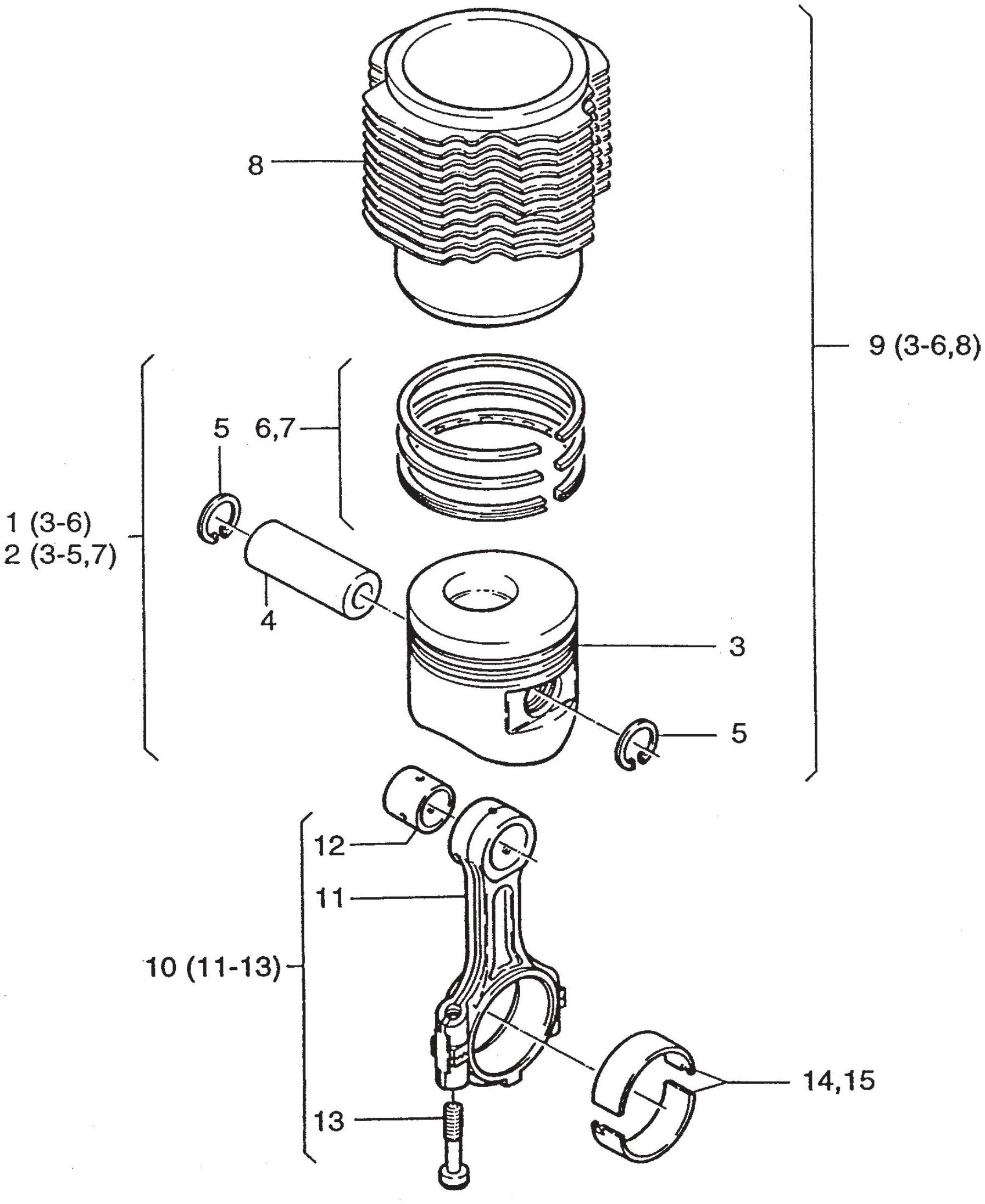

MVH502DSB HATZ 1D81S Engine Piston/Rings Assembly Parts

MVH502DSB HATZ 1D81S Engine Piston/Rings Assembly Parts

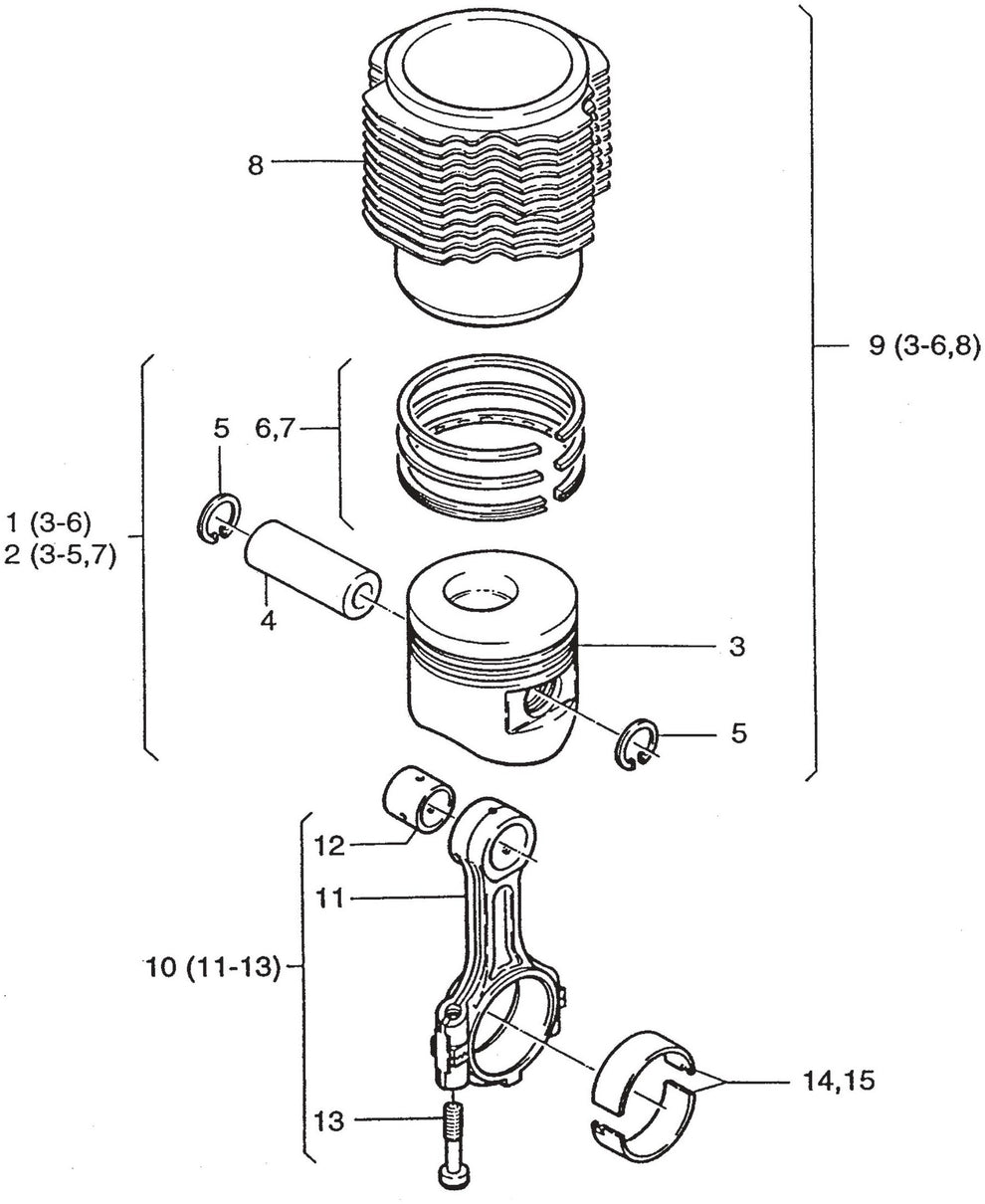

  • MVH502DSB HATZ 1D81S Engine Pistpn/Ring Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
01243901 Piston Assy. Std for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$551.19
1
01313510 Piston Assy. Oversized for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$580.60
2
01265101 Piston Assy. 100+0.5 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$666.16
2
01265201 Piston Assy. 100+1.0 . for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
Call for Price call for price call for price
2
01314610 Piston Assy. 100+0.5 . for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$688.53
2
01314710 Piston Assy. 100+1.0 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$743.62
4
50353600 Wrist Pin for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$109.79
5
50020800 Circlip 30 X 1.2 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$3.95
6
01247300 Piston Ring Set 100 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$182.04
7
01264500 Piston Ring Set +0.5 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$239.51
7
01265000 Piston Ring Set +1.0 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$215.60
9
01508301 Cylinder Assy. W/ Piston for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
Call for Price call for price call for price
10
01244001 Conrod Assy. for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$759.63
12
04032200 Bush For Conrod for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$75.13
13
04001800 Conrod Screw for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$25.48
14
04001900 Big End Bearing for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$25.48
15
04033100 Rod Bearing -0.5 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$93.20
View full details
