MVH502DSB HATZ 1D81S Engine Timing Cover Assembly Parts

MVH502DSB HATZ 1D81S Engine Timing Cover Assembly Parts

  • MVH502DSB HATZ 1D81S Engine timing Cover Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
05325600 Cover 50 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$25.82
6
03797600 Bearing Bush for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$57.28
7
50330400 O-Ring 27 X 2N for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$5.34
8
04000400 Cover for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$26.91
9
50399000 Circlip 32 X 1.2 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$4.99
11
50417400 Allenscrewm8X30Z3 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$3.95
12
50329500 Allen Screw M 12 X 40 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.35
15
04000310 Bearing Bush for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$100.82
16
04023210 Bearing Bush for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$62.32
17
50364700 Oilseal32X52X7 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$56.69
22
01281001 Timing Cover Assy. No. 3 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$1,369.53
25
04052400 Nozzle for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$106.56
26
03797412 Cover F. Oil Pump for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$103.46
View full details

Frequently asked questions

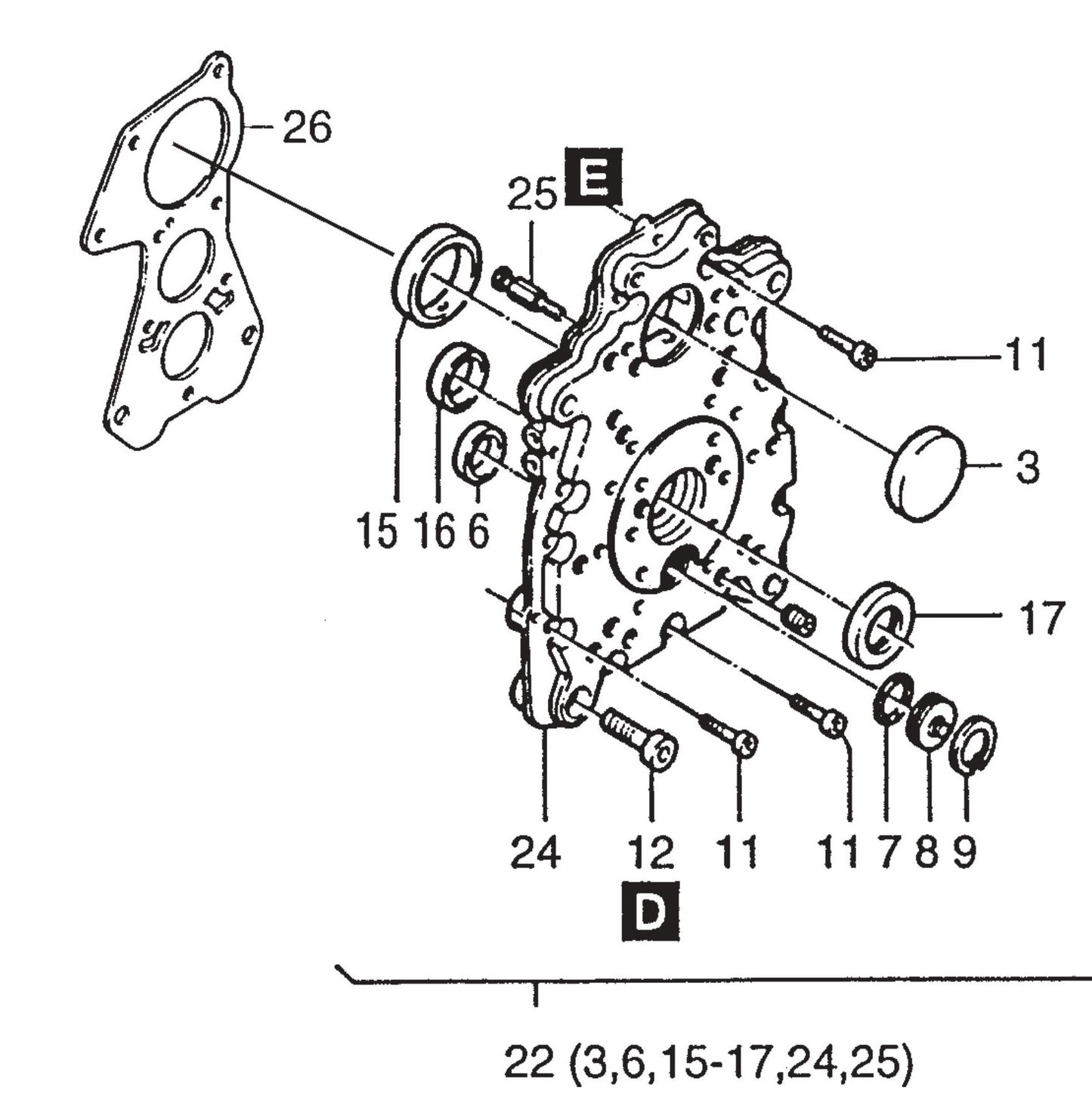

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
