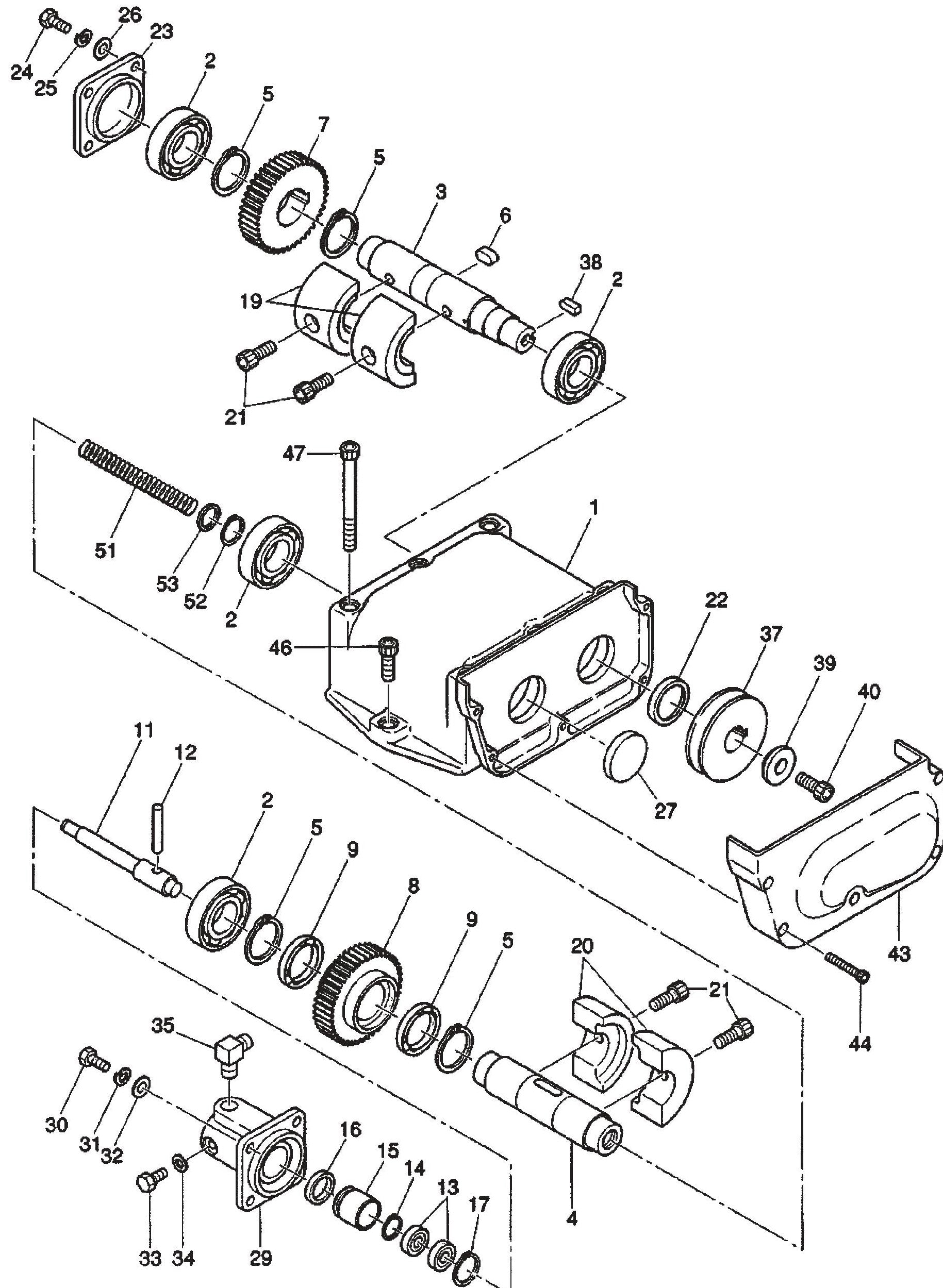

MVHR60HW Vibrator assembly Parts

MVHR60HW Vibrator assembly Parts

  • MVHR60HW Vibrator assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
463117150 Vibrating Case for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$758.02
2
040406206 Bearing 6206C4 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$99.94
3
463342040 Rotary Shaft, Drive for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$225.31
4
463342050 Rotary Shaft, Driven for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$197.37
5
080200350 Snap Ring S35 for MT-70 80G 60H T38S 120L MTX60HD Rammers by Multiquip Mikasa
$2.86
6
951405460 Key 10X8X19 Rr for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$5.37
7
463342060 Gear (Drive) for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$113.56
8
463342070 Gear (Driven) for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$281.76
9
040306807 Bearing 6807C3 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$40.26
11
463342080 Piston Rod for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$102.87
12
025508045 Pin 8X45 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$5.28
13
042506000 Bearing 6000Zzsg for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$18.66
14
080200100 Stop Ring S- 10 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$4.39
15
455435051 Piston for Multiquip Mikasa Plate Tamper Compactor
$90.41
16
455010070 Packing for Multiquip Mikasa Plate Tamper Compactor
$27.58
17
080100260 Stop Ring for Multiquip Mikasa Plate Tamper Compactor
$6.59
19
463455910 Eccent. Rotator, Drive for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$48.04
20
463455920 Eccent. Rotator, Driven for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$47.15
21
009120304 Socket Head Bolt 10X25 T for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$2.56
22
060202040 Oil Seal Sc-28458 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$14.43
23
463455930 Bearing Cover for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$82.94
24
001220820 Bolt 8 X 20 T for Multiquip Mikasa MVC80VH Plate Tamper Compactor
$2.19
30
001220820 Bolt 8 X 20 T for Multiquip Mikasa MVC80VH Plate Tamper Compactor
$2.19
25
030208200 Lock Washer M8 for Multiquip Mikasa MT62HS Jumping Jack Rammer
$8.66
31
030208200 Lock Washer M8 for Multiquip Mikasa MT62HS Jumping Jack Rammer
$8.66
26
031108160 Plain Washer M8 for Multiquip Mikasa MVC77 Plate Tamper Compactor
$2.19
32
031108160 Plain Washer M8 for Multiquip Mikasa MVC77 Plate Tamper Compactor
$2.19
27
953405580 Seal Cap Sc-458 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$13.21
29
463342090 Cylinder for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$136.31
33
001200812 Bolt 8X12 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$4.39
34
953404600 Copper Packing 8 X 16 X 2 for MVH200GH Reversible Plate Compactor by Multiquip Mikasa
$5.75
35
954001160 Elbow 90 Deg. Pt1/4-Pf1/4 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$14.55
37
463342100 Pulley 80D-A1 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$61.13
38
951405240 Key 7X7X19 for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$12.50
39
952406920 Washer 9X(24-35)X10.5 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$18.72
40
001520815 Socket Head Bolt 8X15 T for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$4.39
43
463216110 Belt Cover (Lower) for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$102.87
44
001520640 Socket Head Bolt 6X40 T for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$93.03
46
001521030 Socket Head Bolt 10X30 T for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$2.32
47
001521060 Socket Head Bolt 10X100 T for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$7.77
51
463456200 Spring 1.2X15.6X130 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$8.72
52
080100190 Stop Ring R-19 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$1.47
53
031108160 Pw M8 for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.19
View full details
