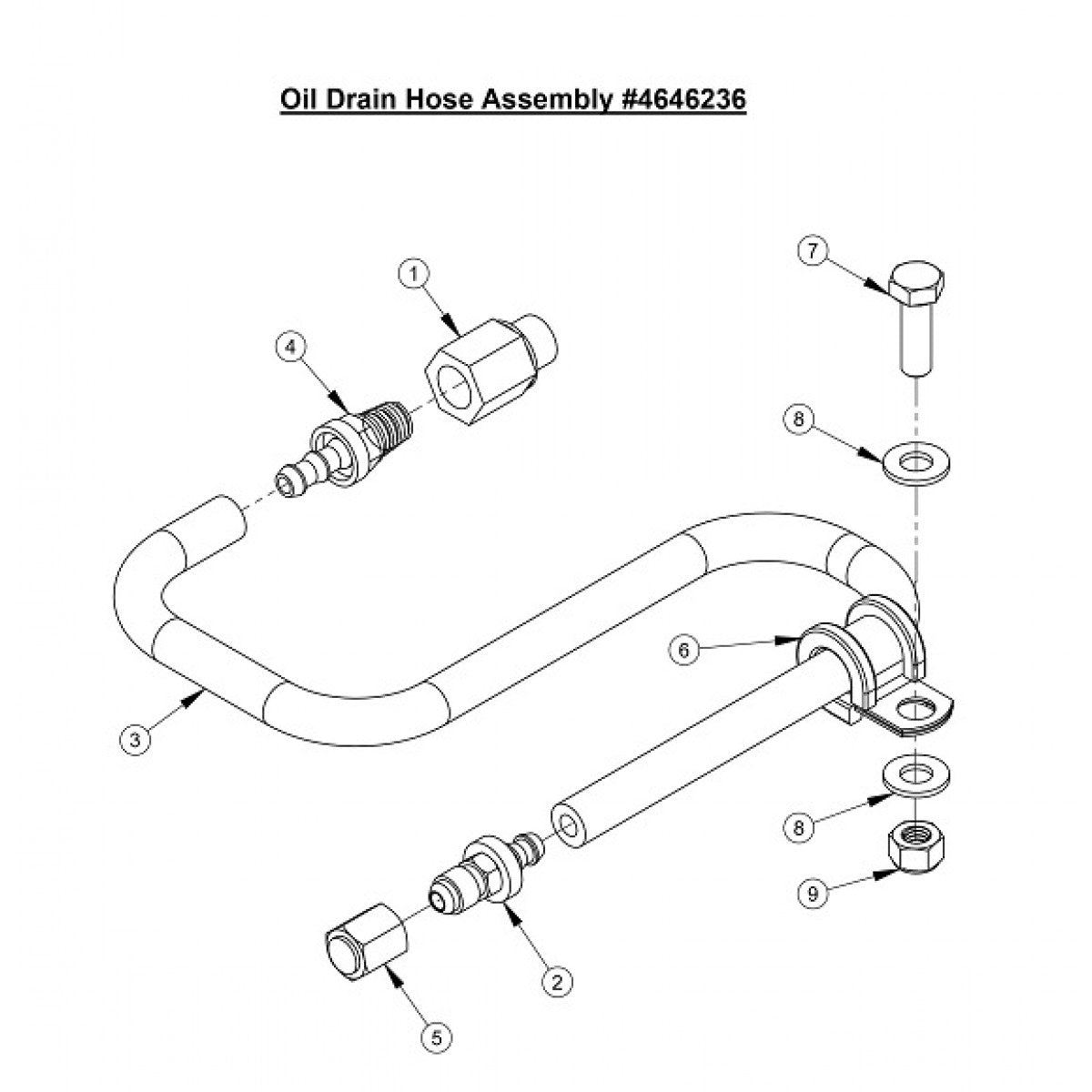

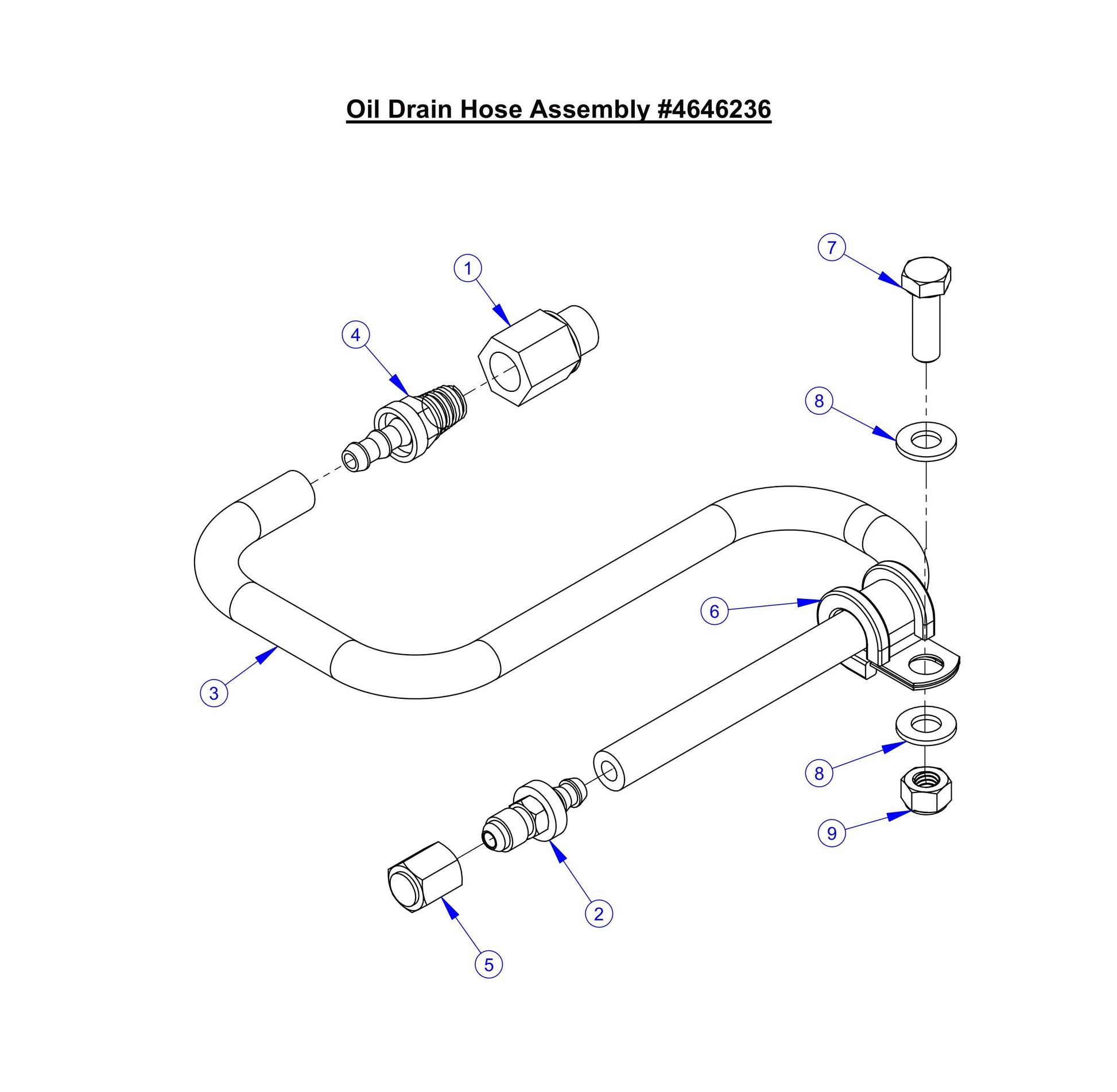

CP35BVXL Oil Drain Hose Assembly Parts

CP35BVXL Oil Drain Hose Assembly Parts

  • CP35BVXL Oil Drain Hose Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
3200040 Fitting, 1/4" M. JIC to 1/4" Push Lock for CC1200XL Concrete Saw Core Cut by Diamond Products
$11.95
5
3200006 Cap, 1/4" JIC for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
6
2501434 Hose Clamp 5/8" x 3/4" Wide for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
7
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900022 Flat Washer 5/16" SAE 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900039 5/16"-18 Nylock Hex Nut for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
1
3201269 Adapter, M14x1.5 M. to 1/4" F. Pipe for CC6571 Concrete Saw Core Cut by Diamond Products
$30.20
4
Diamond Products 1/4"M.PIPE TO 1/4"PUSHLOK 3201270
$7.50
3
Call for Price call for price call for price
