Outlet Circuit Zettler Relay Breaker Box Group (2 of 2) Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand

Name: Outlet Circuit Zettler Relay Breaker Box Group (2 of 2) Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand
Brand: danse-usa
Availability: OutOfStock

1 1

100% genuine product

Authorised dealer

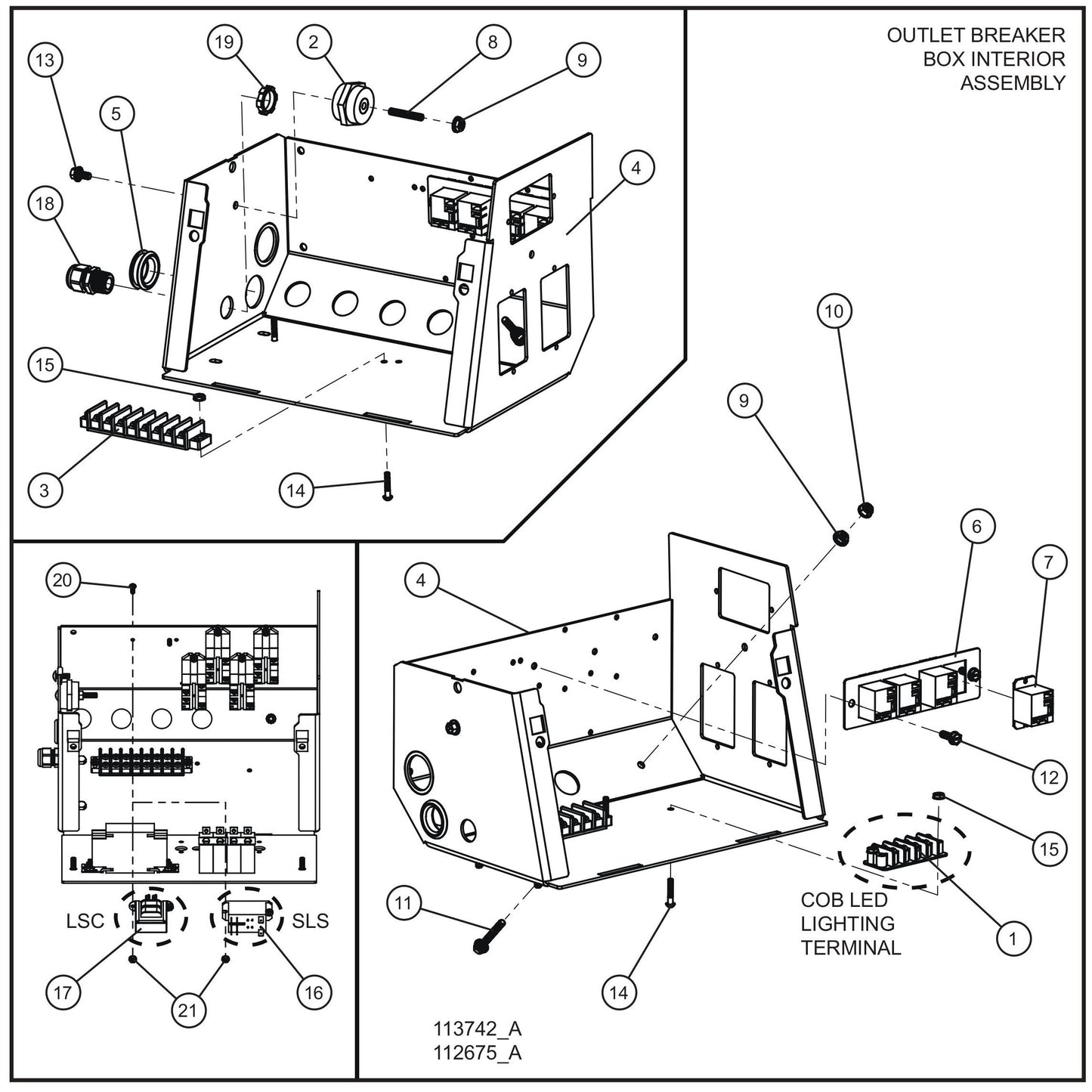

View all diagrams for this Model

Ref.	Product details	Price	Action
1	106730 Screw Terminal Block 4 Gang for Night-Lite V-Series Light Towers by Allmand	$24.04
2	106318 Low Voltage Insulator 1-1/4”, 1/4-20 for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
3	106732 Screw Terminal Block 8 Gang for Night-Lite V-Series Light Towers by Allmand	$42.68
4	114184P Outlet Circuit Breaker Box for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
5	114183 11/16 Rubber Grommet for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
6	114846P Relay Bracket Breaker Box Nlv for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
7	104957 Relay 120 Vac 30 Amp 12-28 Vdc Control for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
9	057000 1/4-20 Hex Serrated Flange Nut for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
10	057001 1/4-20 Hex Nylock Flange Nut for Night-Lite V-Series Light Towers by Allmand	$2.99
11	056014 1/4-20 X 1 3/4 Hex Serrated Flange Screw for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
12	041070 1/4-20 X 3/4 Sl-Hex Washer Head Machine Screw for Night-Lite V-Series Light Towers by Allmand	$2.99
14	041030 #10-24 X 1 Ph-Round Head Machine Screw for Night-Lite V-Series Light Towers by Allmand	$2.99
15	044016 #10-24 Keps Hex Nut for Night-Lite V-Series Light Towers by Allmand	$2.99
16	105219 Relay 30 Amp for Night-Lite V-Series Light Towers by Allmand	$105.60
17	108057 Power Filament 266 Series for Night-Lite V-Series Light Towers by Allmand	$185.25
18	114886 Cord Grip 1/2” Nylon Black for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
19	022035 1/2 Cord Grip Nut for Night-Lite V-Series Light Towers by Allmand	$2.99
20	041012 Screw Ms #8-32 X 1/2 Pl for Night-Lite V-Series Light Towers by Allmand	$7.28
21	044003 #8-32 Nc Keps Nut for Night-Lite V-Series Light Towers by Allmand	$2.99
NS	113288 Light Relay Dc Coil Wires for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	114828 Relay Control Harness Nlv for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	114827 Relay Ground Harness Nlv for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	114826 Light Relay Harness Dc Control Nlv for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	103864 Fuse Holder Inline Blade for Night-Lite V-Series Light Towers by Allmand	$15.71
NS	104990 Fuse Blade 2 Amp Ato/Atc for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	113583 Schematic 4 Sho Lights 4 Relays for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	119959 Schematic 4 Smd Led Light Lights 4 Relays for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	113805 Schematic 4 Cob Led Lights 4 Relays for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
8		Call for Price	call for price call for price
13		Call for Price	call for price call for price
