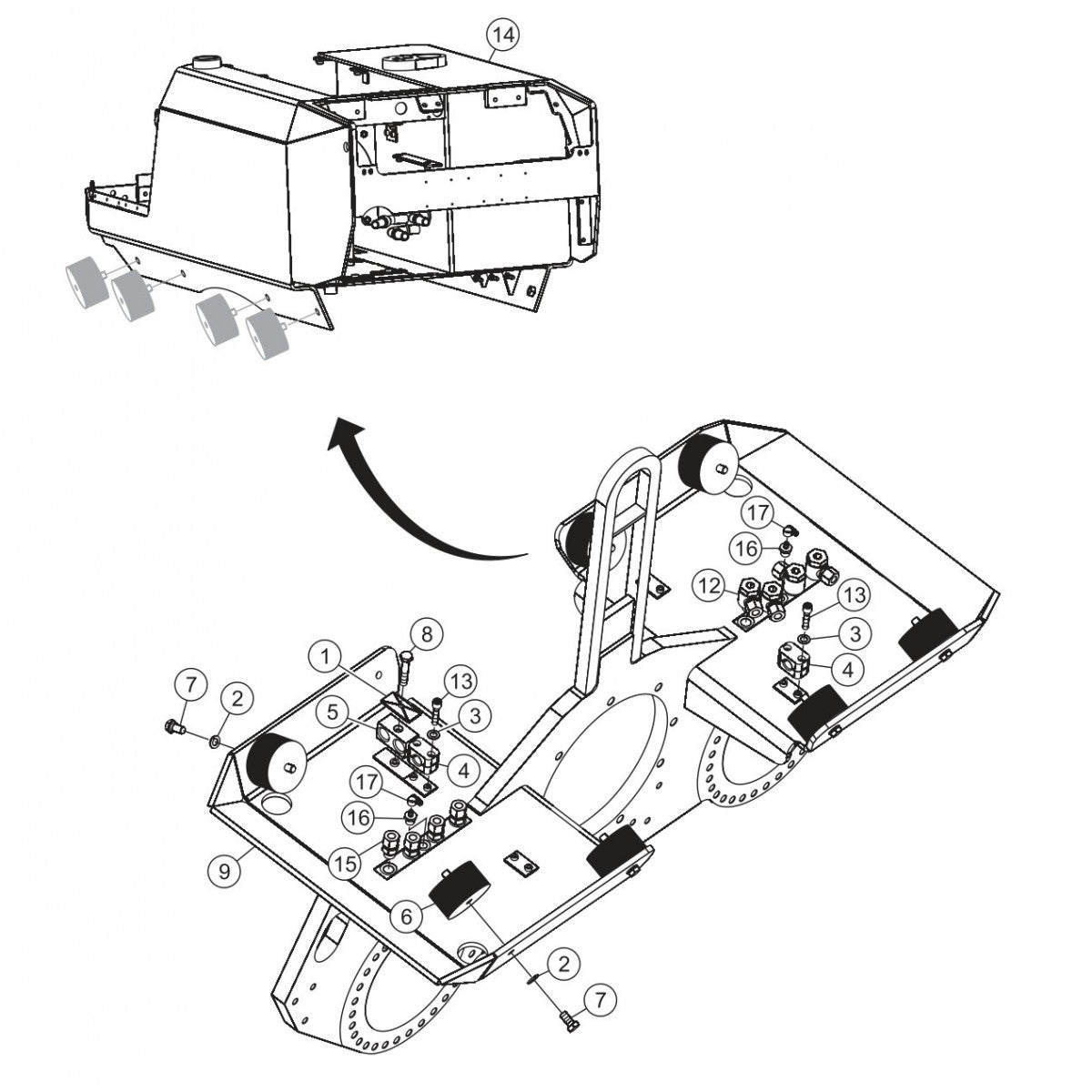

P33/24 HHM-HHMR — Mounting Frame Assembly Parts By Multiquip

P33/24 HHM-HHMR — Mounting Frame Assembly Parts By Multiquip

  • P33/24 HHM-HHMR — Mounting Frame Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
63093 Cover Plate, Gr.3 Gd for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$9.69
2
58335 Retaining Washer, S-12 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$4.39
3
58025 Washer B 6,4 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$4.39
4
63152 Clip, Gr.3 Durchm. 18 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$8.72
5
63171 Clip, Gr.3D 22X22 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$14.61
6
63533 Shock Mount, 90 X 50 - 45°Shore for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$69.43
7
55920 Hex Bolt for P33/24 HHM HHMR Trench Roller by Multiquip
$4.39
8
55904 Hex Bolt, M8 X 45 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$4.39
9
3-10949 Mounting Frame Compl. for P33/24 HHM HHMR Trench Roller by Multiquip
$5,628.26
10
57484 Hydraulic Fitting, Th 10 Plm for P33/24 HHM HHMR Trench Roller by Multiquip
$110.87
11
57577 Hydraulic Fitting, Who 10 Lm for P33/24 HHM HHMR Trench Roller by Multiquip
$36.61
12
57578 Hydraulic Fitting, Who 12 Sm for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$55.83
13
54606 Allen Head Cap Screw, M6 X 30 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$4.39
14
3-10650 Console Compl. for P33/24 HHM HHMR Trench Roller by Multiquip
$153.52
15
57504 Hydraulic Fitting, Ge 12 Sm for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$23.72
16
3-10782 Hose Stem, 9 S Mn 20 K for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$22.31
17
63250 Bracket, Aba 8-12X9 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$14.09
View full details
