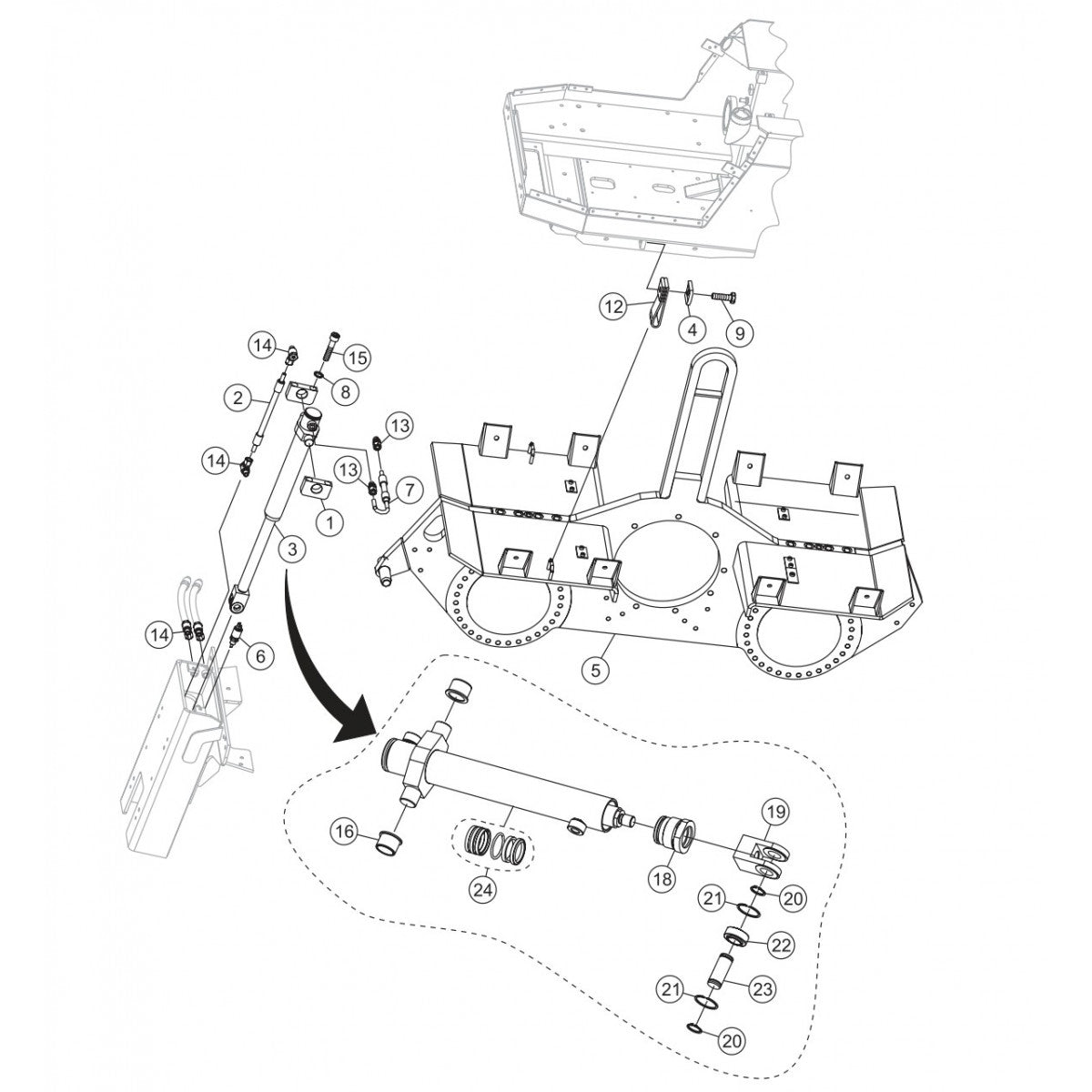

P33/24 HHMR-BD — Lift Cylinder Assembly Parts By Multiquip

P33/24 HHMR-BD — Lift Cylinder Assembly Parts By Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3-10236 Positioning Block, S 235 Jr for P33/24 HHM HHMR Trench Roller by Multiquip
$83.32
2
66928 Hd-Hose, 2Sndn 08X280 Rsl/Rsl for P33/24 HHM HHMR Trench Roller by Multiquip
$42.69
3
3-10487 Lift Cylinder Compl for P33/24 HHM HHMR Trench Roller by Multiquip
$783.18
4
3-10386 Clamping Plate for P33/24 HHM HHMR Trench Roller by Multiquip
$48.91
6
52070 Switch, Hella 6Df 003263001 for P33/24 HHM HHMR Trench Roller by Multiquip
$45.86
7
3-10380 Hose for P33/24 HHM HHMR Trench Roller by Multiquip
$193.29
8
58334 Retaining Washer, S-10 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$4.39
9
55914 Hex Bolt, M10 X 35 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$4.39
10
58221 Lock Washer, 10.5 X 23 X 2.5 for Rammax P33/24 FR FC FCR Vibratory Trench Roller by Multiquip
$4.39
11
3-10389 Mounting Frame Compl. for P33/24 HHM HHMR Trench Roller by Multiquip
$2,561.46
12
3-10387 Transport Strap for P33/24 HHM HHMR Trench Roller by Multiquip
$47.62
13
57502 Hydraulic Fitting, Ge 10 Lm for P33/24 HHM HHMR Trench Roller by Multiquip
$10.50
14
57577 Hydraulic Fitting, Who 10 Lm for P33/24 HHM HHMR Trench Roller by Multiquip
$36.61
15
54070 Allen Head Cap Screw, M10X50 for P33/24 HHM HHMR Trench Roller by Multiquip
$4.39
16
3-10241 Bearing Bush, Gc-Cu Sn7 Zn Pb for P33/24 HHM HHMR Trench Roller by Multiquip
$60.28
18
64201 Pilot, 3-03-40/30 for P33/24 HHM HHMR Trench Roller by Multiquip
$90.29
19
63914 Bolt Head Rod, Gk 1-20 for P33/24 HHM HHMR Trench Roller by Multiquip
$71.92
20
58906 Piston Rod for P33/24 HHM HHMR Trench Roller by Multiquip
$4.39
21
64202 Retaining Ring, Sb 35 for P33/24 HHM HHMR Trench Roller by Multiquip
$4.39
22
63913 Joint Bearing for P33/24 HHM HHMR Trench Roller by Multiquip
$99.27
23
3-10242 Pin, S 235 Jr for P33/24 HHM HHMR Trench Roller by Multiquip
$58.21
24
62904 Gasket Set, Do-40/30/1 for P33/24 HHM HHMR Trench Roller by Multiquip
$134.24
