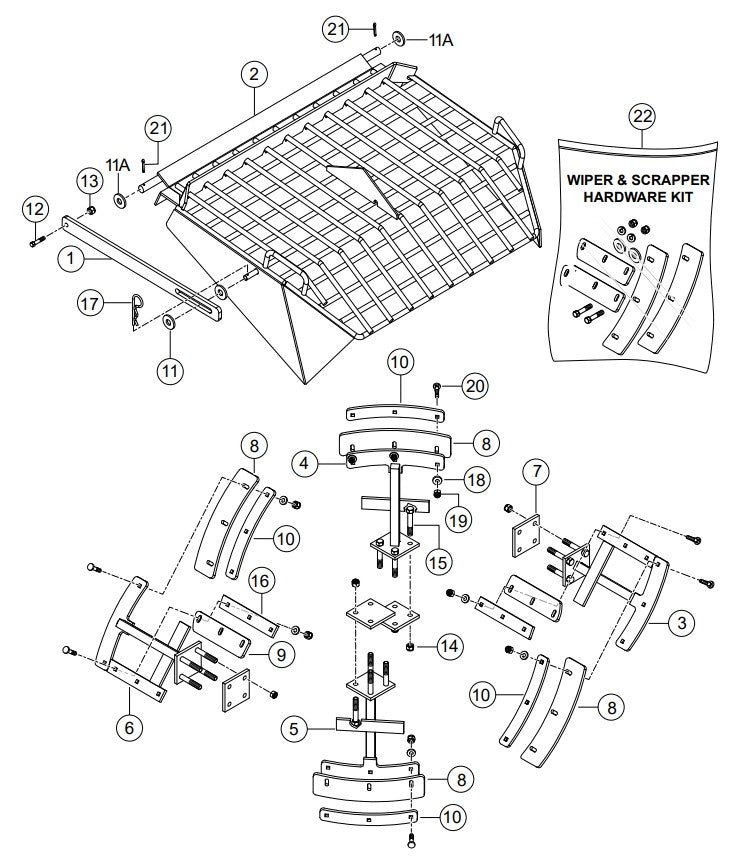

Paddle Blades Assembly Parts- PRO12C/PRO12E51C, PRO12E53C/PRO12E53-460VC HONDA GX390RT2-QNB2 GASOLINE ENGINE/ TECO WESTINGHOUSE 5HP ELECTRIC MOTOR

Paddle Blades Assembly Parts- PRO12C/PRO12E51C, PRO12E53C/PRO12E53-460VC HONDA GX390RT2-QNB2 GASOLINE ENGINE/ TECO WESTINGHOUSE 5HP ELECTRIC MOTOR

  • Paddle Blades Assembly Parts- PRO12C/PRO12E51C, PRO12E53C/PRO12E53-460VC HONDA GX390RT2-QNB2 GASOLINE ENGINE/ TECO WESTINGHOUSE 5HP ELECTRIC MOTOR
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
802452 PADDLE ARM, END | Genuine OEM Multiquip Part
$182.45
4
802453 PADDLE ARM, CENTER | Genuine OEM Multiquip Part
$141.90
5
802454 PADDLE ARM, CENTER ENGINE END by Multiquip
$141.90
6
802455 PADDLE ARM, ENGINE END | Genuine OEM Multiquip Part
$182.45
7
802443 RETAINER BASE, PADDLE ARM by Multiquip
$14.03
8
802447 RUBBER BLADE, SIDE | Genuine OEM Multiquip Part
$44.12
9
802448 RUBBER BLADE END | Genuine OEM Multiquip Part
$22.70
10
802451 STEEL BLADE, SIDE | Genuine OEM Multiquip Part
$45.17
11
0401450160 Washer, 5/8" Flat for LS600P Mayco Concrete Pump by Multiquip
$4.39
11A
507444 Spacer for AR14H Ride On Roller by Multiquip
$4.39
12
492378 Bolt, Hhcs Grd. 5 for LS300 Mayco Concrete Pump by Multiquip
$4.39
13
EM969013 Nut, Nyloc 3/8" for WBH-21EF, WBH21EF Ride On Power Buggy Multiquip Whiteman
$2.19
14
492584 NYLON INSERT NUT 1/2" NC GRD 5 by Multiquip
$4.39
15
3215 Screw, Hhc 1/2-13 X 3-1/2 for LT12 Light Towers by Multiquip
$1.59
16
802449 STEEL BLADE, END | Genuine OEM Multiquip Part
$31.60
17
EM745 Hair Pin C 5/8- 3/4” for C30HDG (ZENITH) Mayco Concrete Pump by Multiquip
$4.39
18
3019092 Flat Washer 3/8" for WTB-16PD, WTB16PD Track Drive Power Buggy Multiquip Whiteman
$2.19
19
EM969013 Nut, Nylon 3/8" Nc Nylon G8 for WBH-21EFP, WBH21EFP Track Drive Power Buggy Multiquip Whiteman
$2.19
20
505883 SCREW, 3/8-NC X 2" GRD5 | Genuine OEM Multiquip Part
$3.29
21
EM924015 PIN, COTTER | Genuine OEM Multiquip Part
$4.39
22
521426 KIT, RUBBER BLADES, SCRAPPERS, HWD. ..1 by Multiquip
$674.22
View full details
