CW-18 IV Parts Breakdown Assembly-1 Parts

CW-18 IV Parts Breakdown Assembly-1 Parts

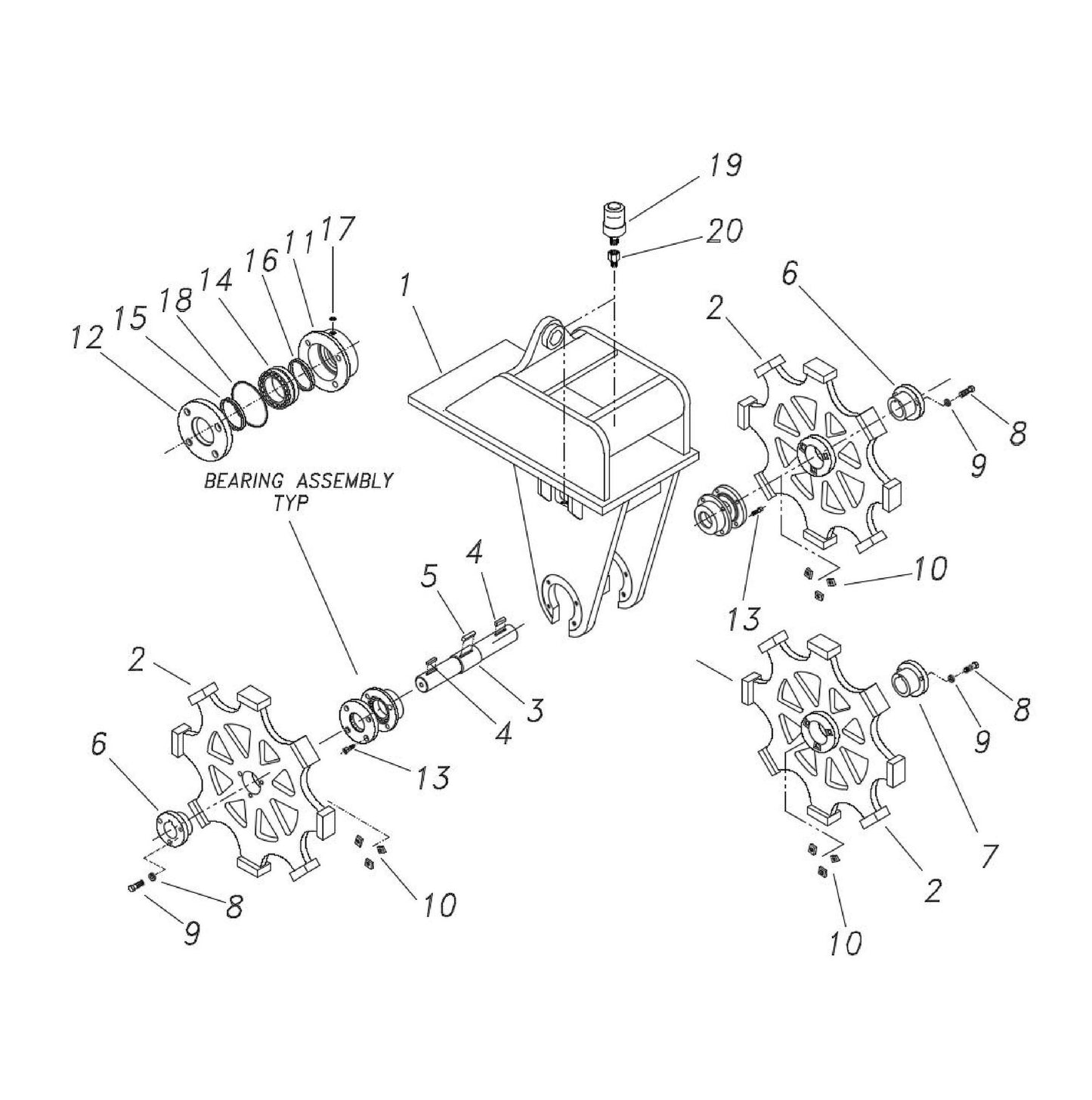

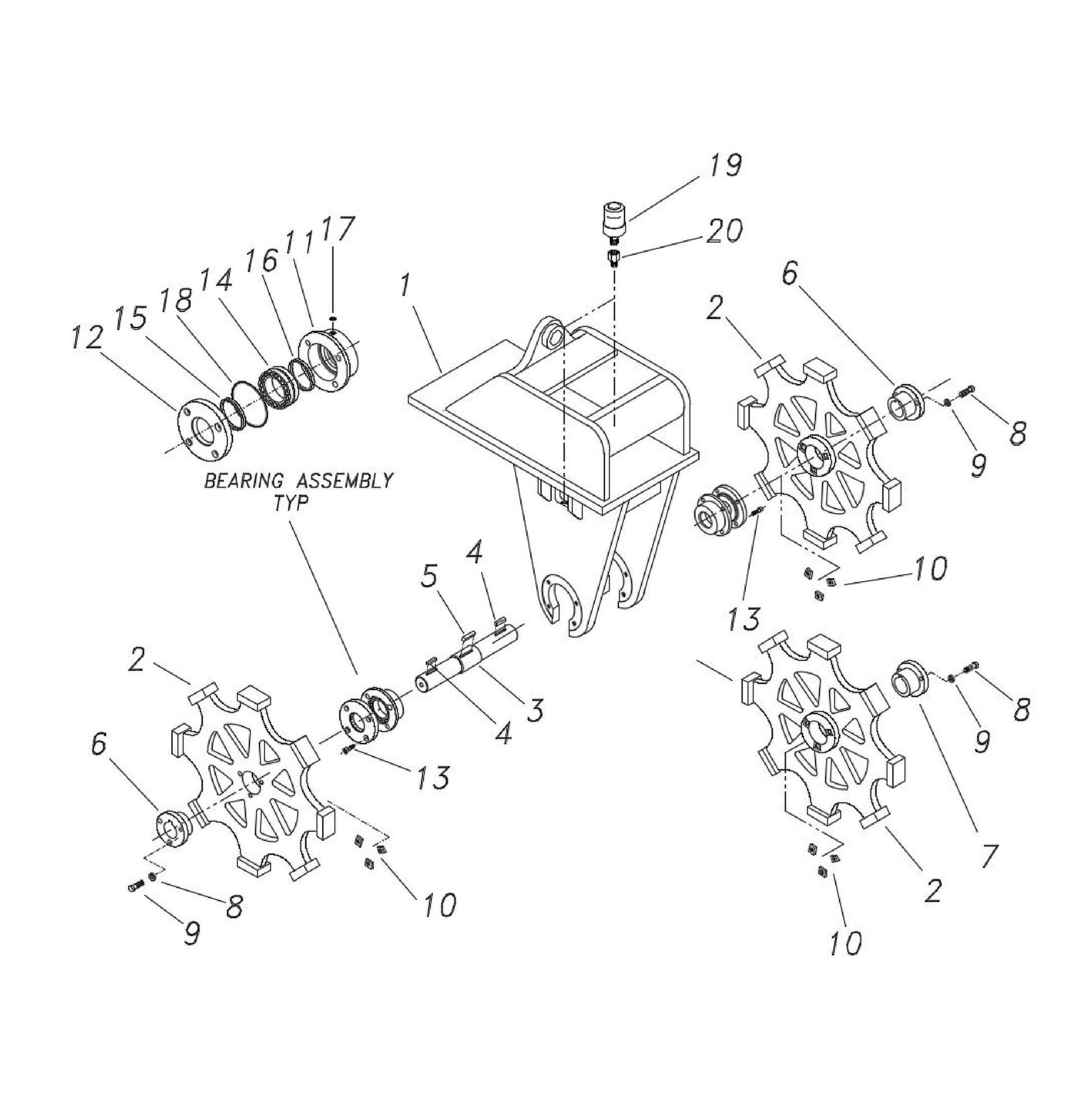

  • Parts Breakdown fig 1 Parts For CW 18 IV By FRD
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
K26822 1/4 Wr Frame for CW18IV Compaction Wheels by FRD Furukawa Kent
$4,381.72
2
K28107 30" Pad Foot Wheel for CW18III Compaction Wheels by FRD Furukawa Kent
$2,530.23
3
K26826 Shaft for CW18IV Compaction Wheels by FRD Furukawa Kent
$875.00
4
K26827 18Mm X11 Mm Key for CW18IV Compaction Wheels by FRD Furukawa Kent
$75.00
5
K28111 Key for CW18IV Compaction Wheels by FRD Furukawa Kent
$30.67
6
K26813 Ex60Mm Qd Bushing for CW18IV Compaction Wheels by FRD Furukawa Kent
$172.41
7
K28118 Ex2 3/4 Qd Bushing (Hub) for CW18IV Compaction Wheels by FRD Furukawa Kent
$175.00
8
K06412 1/2 " Lockwasher (K04256) for CW18III CW18IV Compaction Wheels by FRD Furukawa Kent
$2.99
9
K19667 1/2-13 X 3-1/4 Lg Gr5 Hhcs for CW18IV Compaction Wheels by FRD Furukawa Kent
$3.99
10
K28119 Square Nut 1/2-13 for CW18IV Compaction Wheels by FRD Furukawa Kent
$5.99
11
K26824 Bearing Housing for CW18IV Compaction Wheels by FRD Furukawa Kent
$655.73
12
K26825 Bearing Cover for CW18IV Compaction Wheels by FRD Furukawa Kent
$440.00
13
K26828 1/2-13 X 1.50 Lf Shcs Gr8 for CW18IV Compaction Wheels by FRD Furukawa Kent
$2.99
14
K26810 Spherical Bearing for CW18IV Compaction Wheels by FRD Furukawa Kent
$267.58
15
K26811 60Mm Id Seal for CW18IV Compaction Wheels by FRD Furukawa Kent
$18.08
16
K26812 2-3/4 Id Seal for CW18IV Compaction Wheels by FRD Furukawa Kent
$63.00
17
K26829 O-Ring .237 Id for CW18IV Compaction Wheels by FRD Furukawa Kent
$2.99
18
K26830 O-Ring 4.237 Id for CW18IV Compaction Wheels by FRD Furukawa Kent
$3.99
19
K26814 Auto Grease Feeder for CW18IV Compaction Wheels by FRD Furukawa Kent
$203.19
20
K26815 Npt Adapter for CW18IV Compaction Wheels by FRD Furukawa Kent
$30.00
