CW-18 IV Parts Breakdown Assembly-2 Parts

CW-18 IV Parts Breakdown Assembly-2 Parts

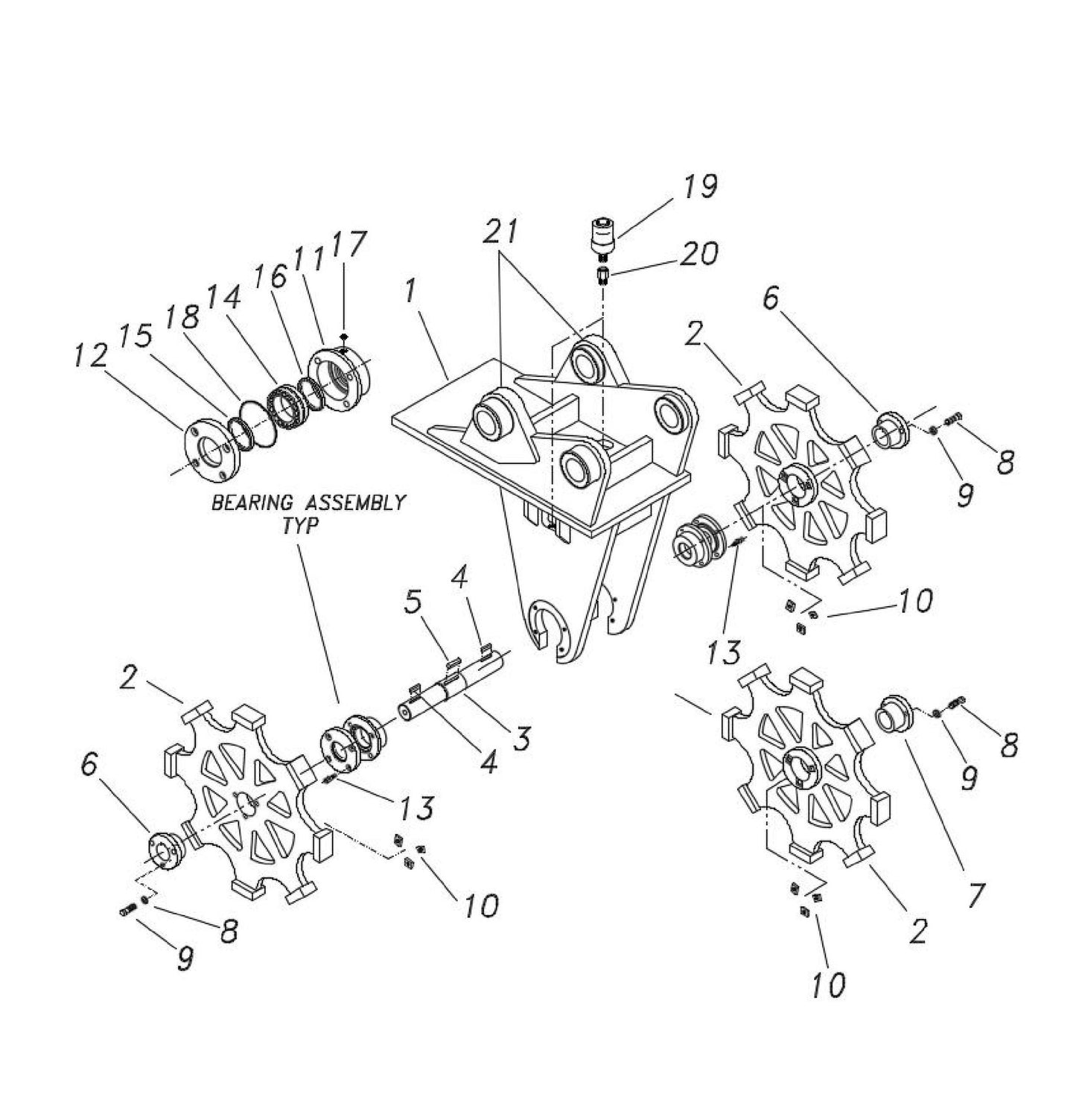

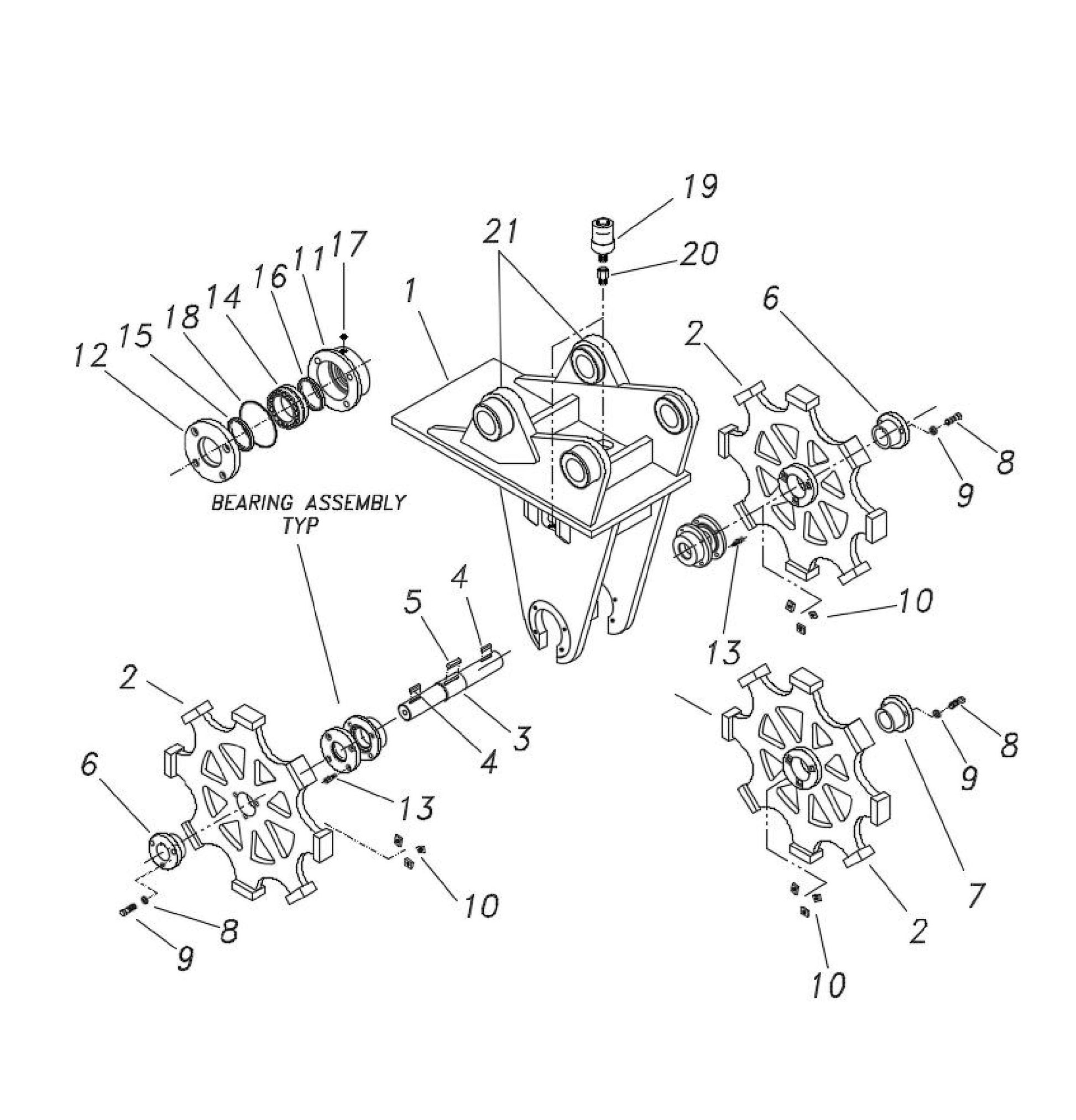

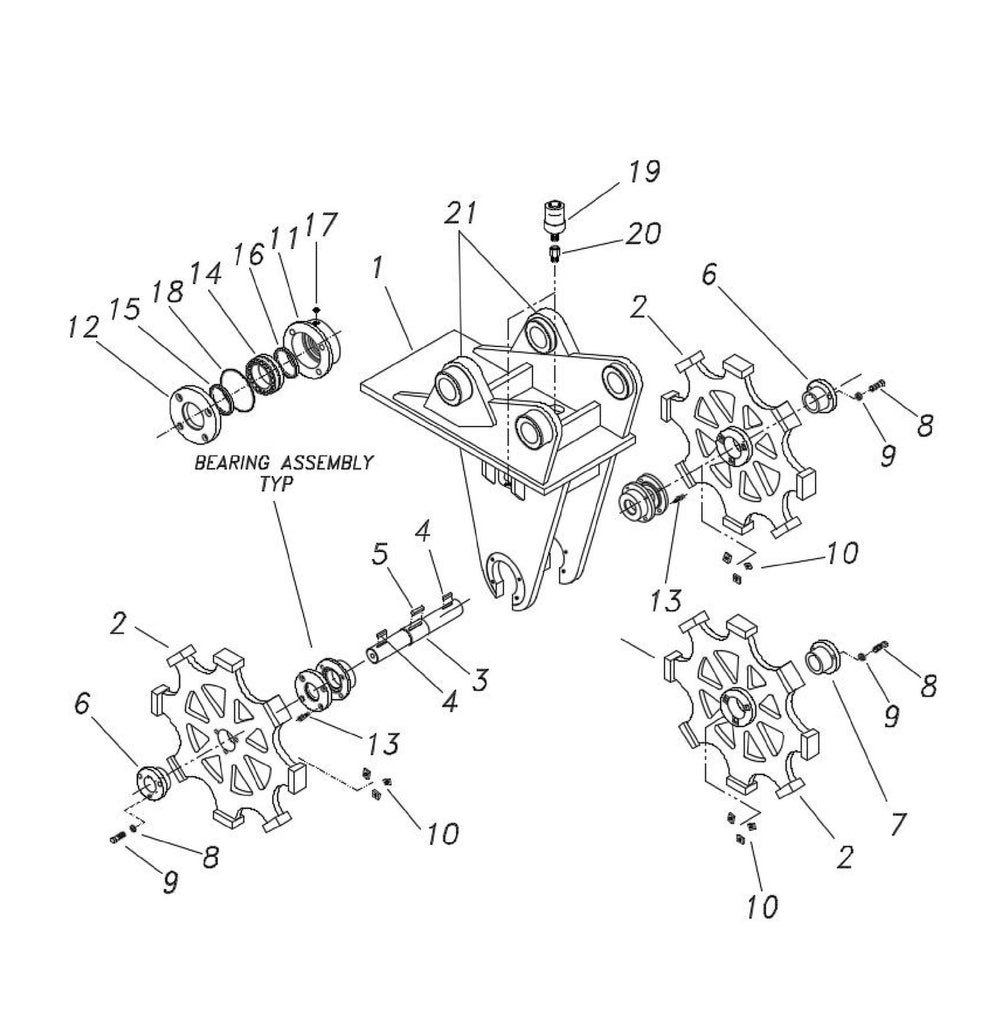

  • Parts Breakdown fig 2 Parts For CW 18 IV By FRD
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
K26823 Fb Frame for CW18IV Compaction Wheels by FRD Furukawa Kent
Call for Price call for price call for price
2
K28107 30" Pad Foot Wheel for CW18III Compaction Wheels by FRD Furukawa Kent
$3,036.28
3
K26826 Shaft for CW18IV Compaction Wheels by FRD Furukawa Kent
$1,050.00
4
K26827 18Mm X11 Mm Key for CW18IV Compaction Wheels by FRD Furukawa Kent
$90.00
5
K28111 Key for CW18IV Compaction Wheels by FRD Furukawa Kent
$36.80
6
K26813 Ex60Mm Qd Bushing for CW18IV Compaction Wheels by FRD Furukawa Kent
$206.89
7
K28118 Ex2 3/4 Qd Bushing (Hub) for CW18IV Compaction Wheels by FRD Furukawa Kent
$210.00
8
K06412 1/2 " Lockwasher (K04256) for CW18III CW18IV Compaction Wheels by FRD Furukawa Kent
$3.59
9
K19667 1/2-13 X 3-1/4 Lg Gr5 Hhcs for CW18IV Compaction Wheels by FRD Furukawa Kent
$4.79
10
K28119 Square Nut 1/2-13 for CW18IV Compaction Wheels by FRD Furukawa Kent
$7.19
11
K26824 Bearing Housing for CW18IV Compaction Wheels by FRD Furukawa Kent
$786.88
12
K26825 Bearing Cover for CW18IV Compaction Wheels by FRD Furukawa Kent
$528.00
13
K26828 1/2-13 X 1.50 Lf Shcs Gr8 for CW18IV Compaction Wheels by FRD Furukawa Kent
$3.59
14
K26810 Spherical Bearing for CW18IV Compaction Wheels by FRD Furukawa Kent
$321.10
15
K26811 60Mm Id Seal for CW18IV Compaction Wheels by FRD Furukawa Kent
$21.70
16
K26812 2-3/4 Id Seal for CW18IV Compaction Wheels by FRD Furukawa Kent
$75.60
17
K26829 O-Ring .237 Id for CW18IV Compaction Wheels by FRD Furukawa Kent
$3.59
18
K26830 O-Ring 4.237 Id for CW18IV Compaction Wheels by FRD Furukawa Kent
$4.79
19
K26814 Auto Grease Feeder for CW18IV Compaction Wheels by FRD Furukawa Kent
$243.83
20
K26815 Npt Adapter for CW18IV Compaction Wheels by FRD Furukawa Kent
$36.00
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
