CW-24 III Parts Breakdown Assembly Parts

CW-24 III Parts Breakdown Assembly Parts

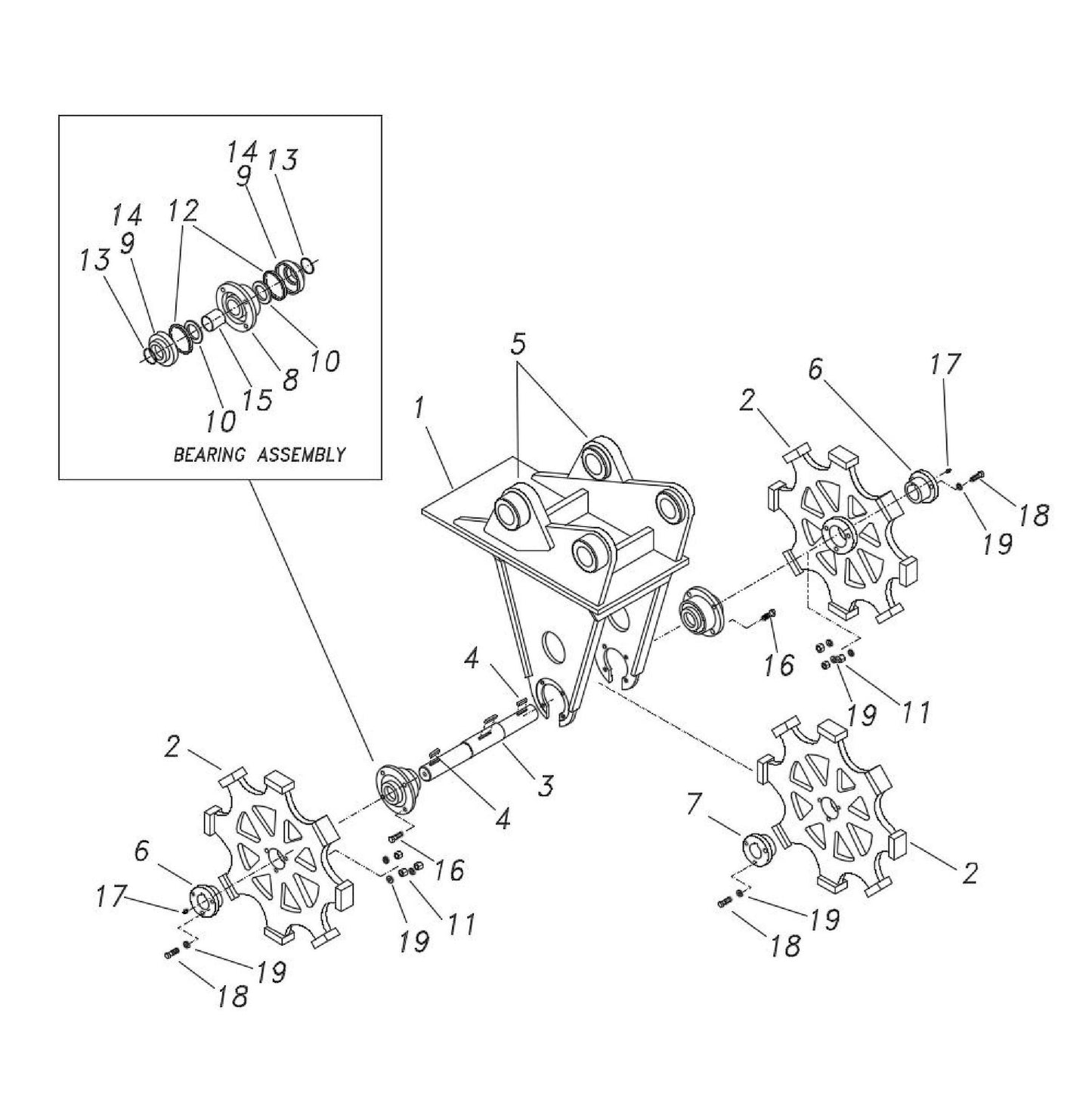

  • Parts Breakdown Parts For CW 24 III By FRD
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
K28001 Frame Kcw-24Iii for CW24III Compaction Wheels by FRD Furukawa Kent
$6,001.13
2
K28006 40Pad Foot Wheel for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$2,619.54
3
K28009 Shaft Greasable for CW24III Compaction Wheels by FRD Furukawa Kent
$1,056.78
4
K28010 Key for CW24III Compaction Wheels by FRD Furukawa Kent
$67.46
6
K28017 3 1/4" Qd Hub for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$238.51
7
K28018 3 1/2" Qd Hub for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$247.03
8
K28007 Bearing Housing for CW24III Compaction Wheels by FRD Furukawa Kent
$751.33
9
K28008 Seal Retainer for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$219.78
10
K28016 Thrust Ring for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$61.33
11
K28032 9/16-12 Center Locknut for CW24III Compaction Wheels by FRD Furukawa Kent
$4.79
12
K28012 Seal for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$62.21
13
K28013 O-Ring for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$7.19
14
K28019 Set Screw for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$3.59
15
K28014 Bearing for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$53.12
16
KF330312 5/8-11 Hhcs 2-3/4 Long Gr 8 for CW24III Compaction Wheels by FRD Furukawa Kent
$4.79
16A
K07231 5/8-11 X 2 1/4" Gr 8 Hhcs for CW24III Compaction Wheels by FRD Furukawa Kent
$4.79
17
K07223 Grease Fitting 1/8-27 Ptf for CW24III Compaction Wheels by FRD Furukawa Kent
$4.79
18
K28025 9/16-12 X 4"Lg. Hhcs Gr.5 for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
Call for Price call for price call for price
18A
K28029 Hhcs 9/16-12 X 4 1/2 Lg Gr 5 for CW24III Compaction Wheels by FRD Furukawa Kent
$5.94
19
K19874 9/16 Sae Hardened Flat Washer for CW24III Compaction Wheels by FRD Furukawa Kent
$3.59
19
KBM28007 Bearing Assembly for CW24III Compaction Wheels by FRD Furukawa Kent
$1,500.00
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
