CW 36 III Parts Breakdown Assembly Parts

CW 36 III Parts Breakdown Assembly Parts

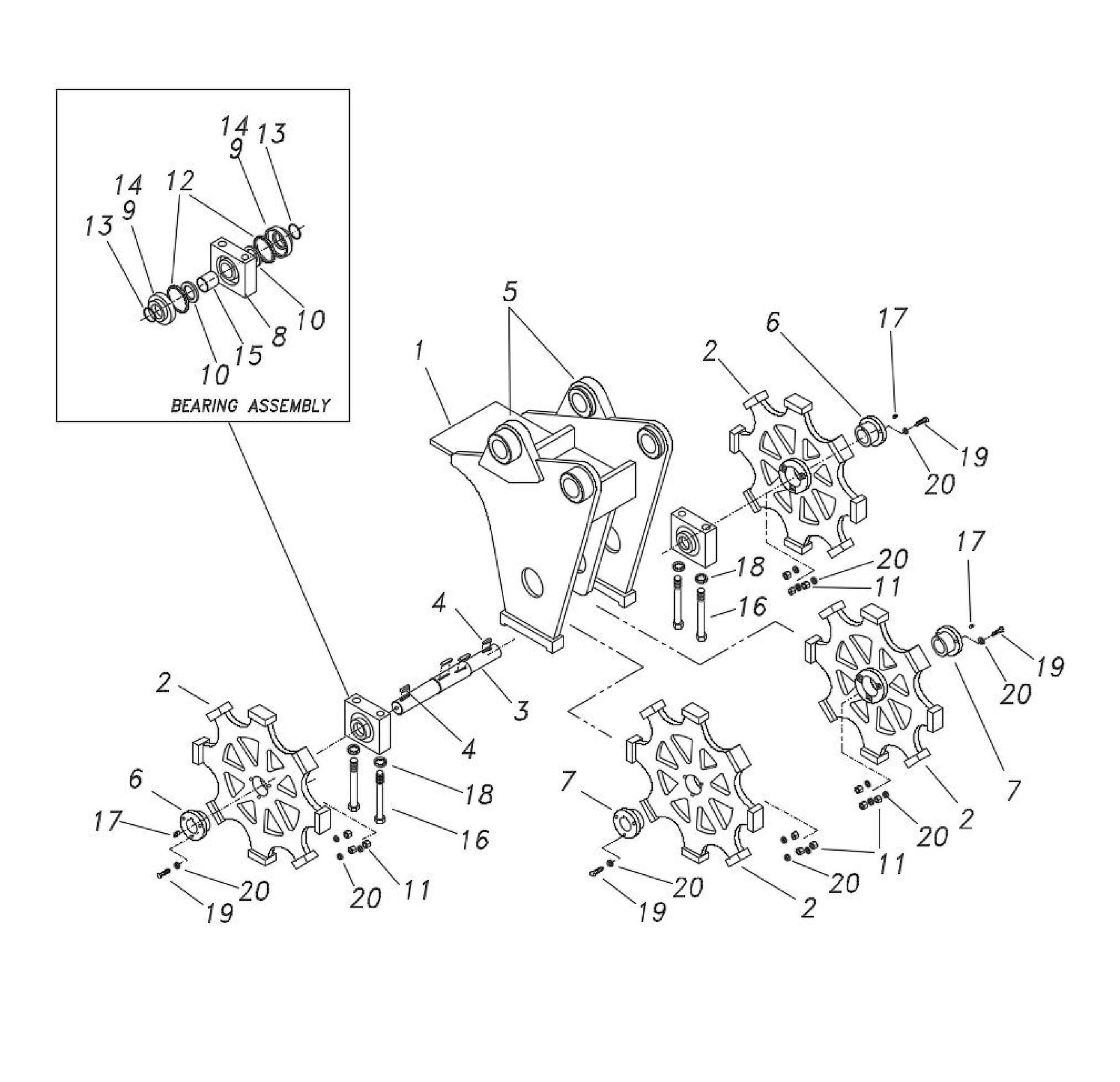

  • Parts Breakdown Parts For CW 36 III By FRD
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
K28051 Kcw-36Iii Frame W/ Mtg. Boss for CW36III Compaction Wheels by FRD Furukawa Kent
$7,179.91
2
K28006 40Pad Foot Wheel for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$2,619.54
3
K28053 Shaft for CW36III Compaction Wheels by FRD Furukawa Kent
$1,590.00
4
K28057 Key for CW36III Compaction Wheels by FRD Furukawa Kent
$46.08
6
K28017 3 1/4" Qd Hub for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$238.51
7
K28018 3 1/2" Qd Hub for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$247.03
8
K28052 Bearing Housing for CW36III Compaction Wheels by FRD Furukawa Kent
$1,466.88
9
K28008 Seal Retainer for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$219.78
10
K28016 Thrust Ring for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$61.33
11A
K28026 9/16" Special Nut for CW36III Compaction Wheels by FRD Furukawa Kent
$41.12
12
K28012 Seal for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$62.21
13
K28013 O-Ring for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$7.19
14
K28019 Set Screw for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$3.59
15
K28014 Bearing for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
$53.12
16
K28054 1 1/4 - 7 X 9" Hhcs Gr. 8 for CW36III Compaction Wheels by FRD Furukawa Kent
$45.37
17
K07223 Grease Fitting 1/8-27 Ptf for CW36III Compaction Wheels by FRD Furukawa Kent
$4.79
18
K28055 1 1/4 Lock Washer for CW36III Compaction Wheels by FRD Furukawa Kent
Call for Price call for price call for price
19
K28025 9/16-12 X 4"Lg. Hhcs Gr.5 for CW24III CW36III Compaction Wheels by FRD Furukawa Kent
Call for Price call for price call for price
19A
K28027 Hhcs 9/16-12 X 4.75 Lg. Gr.5 for CW36III Compaction Wheels by FRD Furukawa Kent
$6.10
20
K18509 9/16" Lockwasher for CW36III Compaction Wheels by FRD Furukawa Kent
$3.59
20
KBM28052 Bearing Assembly for CW36III Compaction Wheels by FRD Furukawa Kent
$2,124.50
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
