Parts Breakdown Parts for Fx225

Name: Parts Breakdown Parts for Fx225
Brand: danse-usa
Availability: OutOfStock

1 1

100% genuine product

Authorised dealer

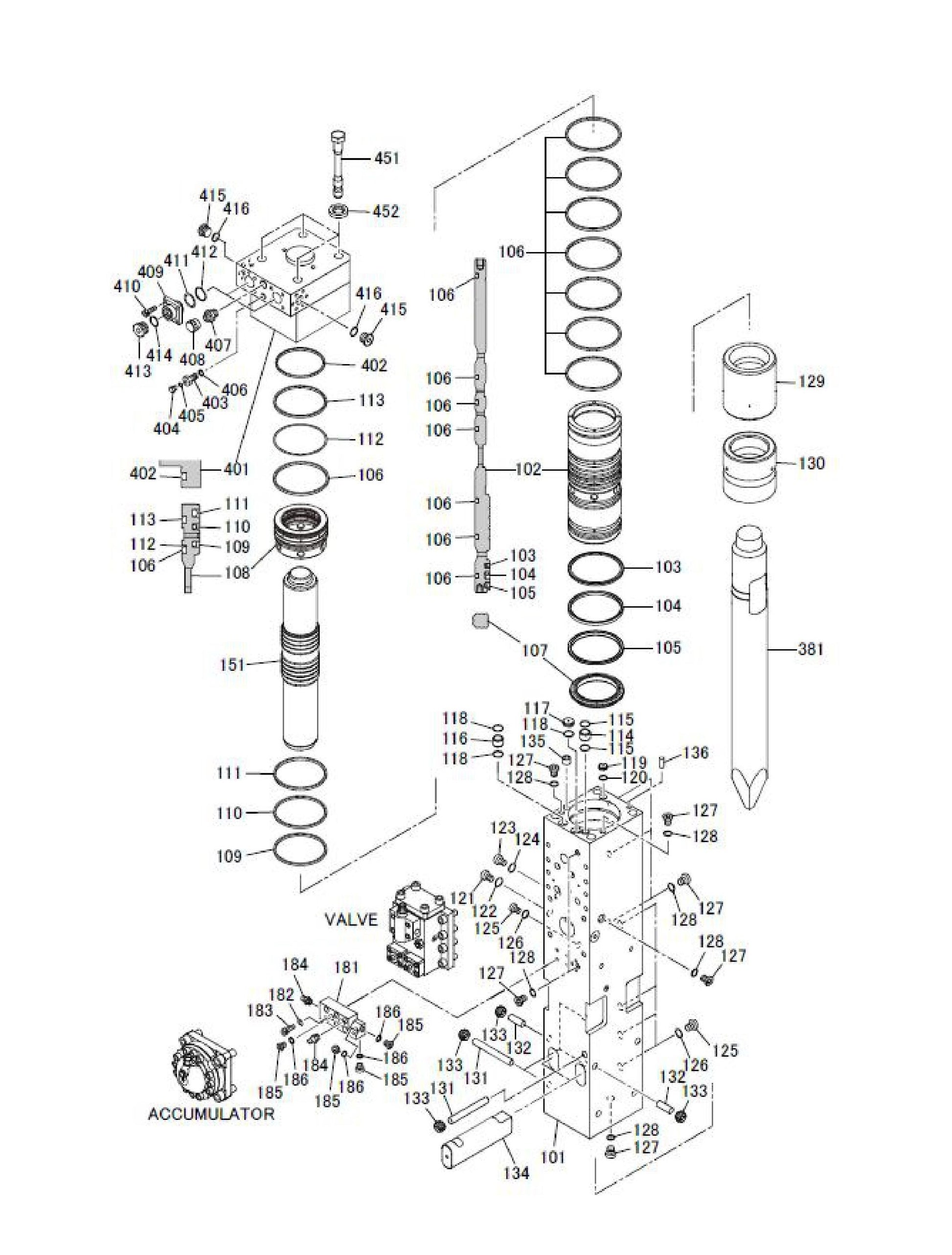

View all diagrams for this Model

Ref.	Product details	Price	Action
101	K002411100010 Cylinder for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
***	KHB15G10104 Heli-Sert Insert for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
***	KHB20G10105 Heli-Sert Insert for Fx125 Breaker by FRD Kent	$28.64
***	K002411900010 Heli-Sert Insert for Fx225 breaker by FRD Furukawa Kent	$82.49
102	K002411100030 Cylinder Liner for Fx225 breaker by FRD Furukawa Kent	$11,514.78
103	K002411100040 Buffer Ring [/SA] for Fx225 breaker by FRD Furukawa Kent	$250.85
104	K002411100050 U-Packing [/SA] for Fx225 breaker by FRD Furukawa Kent	$120.00
105	K002411100062 Dust Seal [/SA] for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
106	KF2710116 D-Ring [/SA] for Fx225 breaker by FRD Furukawa Kent	$158.09
107	K002411100070 Distance Washer for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
108	K002411100080 Seal Retainer for Fx225 breaker by FRD Furukawa Kent	$3,532.04
109	K002411100090 Rod Seal [/SA] for Fx225 breaker by FRD Furukawa Kent	$497.44
110	K002411100100 Rod Seal [/SA] for Fx225 breaker by FRD Furukawa Kent	$526.93
111	K002411100110 Rod Seal [/SA] for Fx225 breaker by FRD Furukawa Kent	$508.00
112	K26203200170 Backup Ring [/SA] for Fx225 breaker by FRD Furukawa Kent	$64.90
113	KF2710216 Delta Ring [/SA] for Fx225 breaker by FRD Furukawa Kent	$155.38
402	KF2710216 Delta Ring [/SA] for Fx225 breaker by FRD Furukawa Kent	$155.38
114	K002407100140 Bush [/SA] for Fx225 breaker by FRD Furukawa Kent	$47.17
115	K002407100150 Seal [/SA] for Fx225 breaker by FRD Furukawa Kent	$5.14
116	KF2210121 Bush [/SA] for Fx225 breaker by FRD Furukawa Kent	$48.77
117	KF2210220 Plug [/SA] for Fx225 breaker by FRD Furukawa Kent	$92.52
118	K16101100029 O-Ring [/SB] for Fx125 Breaker by FRD Kent	$4.74
119	K002407100130 Plug for Fx225 breaker by FRD Furukawa Kent	$97.36
120	K16101110022 O-Ring [/SC] for Fx125 Breaker by FRD Kent	$3.59
121	K08489606000 Plug for Fx125 Breaker by FRD Kent	$16.27
415	K08489606000 Plug for Fx125 Breaker by FRD Kent	$16.27
122	K1600110024 O-Ring [/SB] for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
123	K08489604000 Plug for Fx125 Breaker by FRD Kent	$10.22
124	K16001100018 O-Ring for O-Ring Breaker by FRD Kent	$4.74
406	K16001100018 O-Ring for O-Ring Breaker by FRD Kent	$4.74
125	K08489603000 Plug for Fx125 Breaker by FRD Kent	$7.49
126	K16001100014 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$4.74
127	K08489602000 Plug for Fx125 Breaker by FRD Kent	$7.34
185	K08489602000 Plug for Fx125 Breaker by FRD Kent	$7.34
128	K16001100011 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$4.74
186	K16001100011 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$4.74
129	K002411100121 Front Holder for Fx225 breaker by FRD Furukawa Kent	$1,880.98
130	K002411100131 Front Bushing for Fx225 breaker by FRD Furukawa Kent	$2,172.96
131	K002411100140 Stop Pin “A” for Fx225 breaker by FRD Furukawa Kent	$115.24
132	K002411100150 Stop Pin “B” for Fx225 breaker by FRD Furukawa Kent	$59.48
133	K002407100110 Plug A [/SB] for Fx125 Breaker by FRD Kent	$8.42
134	K002411100160 Rod Pin for Fx225 breaker by FRD Furukawa Kent	$1,182.88
135	KF2220121 Check Valve for Fx225 breaker by FRD Furukawa Kent	$69.14
136	KF2210125 Knock Pin (SN ~3312) for Fx125 Breaker by FRD Kent	$26.83
151	K002411110010 Piston for Fx225 breaker by FRD Furukawa Kent	$12,652.32
181	K002411120010 Manifold Block for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
182	K000500220110 Spring Washer for Fx225 breaker by FRD Furukawa Kent	$1.79
183	K10203214050 Socket Bolt for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
184	K00110020123 Grease Nipple for Fx275 breaker by FRD Furukawa Kent	$14.60
381	KFX22525221 Blunt for Fx225 breaker by FRD Furukawa Kent	$2,850.00
381	KFX22525224 Chisel for Fx225 breaker by FRD Furukawa Kent	$2,850.00
381	KFX22525225 Moil for Fx225 breaker by FRD Furukawa Kent	$2,850.00
401	K002411300010 Backhead for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
403	KHB15G30103 Charging Valve for Fx125 Breaker by FRD Kent	$401.50
404	KHB20G30109 Plug for Fx125 Breaker by FRD Kent	$43.97
405	K16001100006 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$5.99
407	K002407120040 Cap for Fx225 breaker by FRD Furukawa Kent	$261.48
408	K002407120050 Cover for Fx225 breaker by FRD Furukawa Kent	$70.74
409	K11739 Port Adapter for Fx225 breaker by FRD Furukawa Kent	$315.07
410	K10203314035 Socket Bolt for Fx225 breaker by FRD Furukawa Kent	$11.26
411	K26202200040 Backup Ring [/SB] for Fx225 breaker by FRD Furukawa Kent	$14.64
412	K16102500040 O-Ring [/SB] for Fx225 breaker by FRD Furukawa Kent	$12.55
413	K08489610000 Plug for Fx125 Breaker by FRD Kent	$47.69
414	K16001100029 O-Ring [/SB] for Fx225 breaker by FRD Furukawa Kent	$3.10
416	K16001100024 O-Ring [/O] [/S] for F6, F9 and Fx125 Breaker by FRD Kent	$4.74
451	K002411360010 Bolt for Fx225 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
452	K002411360020 Washer for Fx225 breaker by FRD Furukawa Kent	$80.30
*	K902411920020 Cylinder Seal Kit for Fx225 breaker by FRD Furukawa Kent	$2,778.43
*	K902411920030 Back Head Seal Kit for Fx225 breaker by FRD Furukawa Kent	$112.56

Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.

View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
