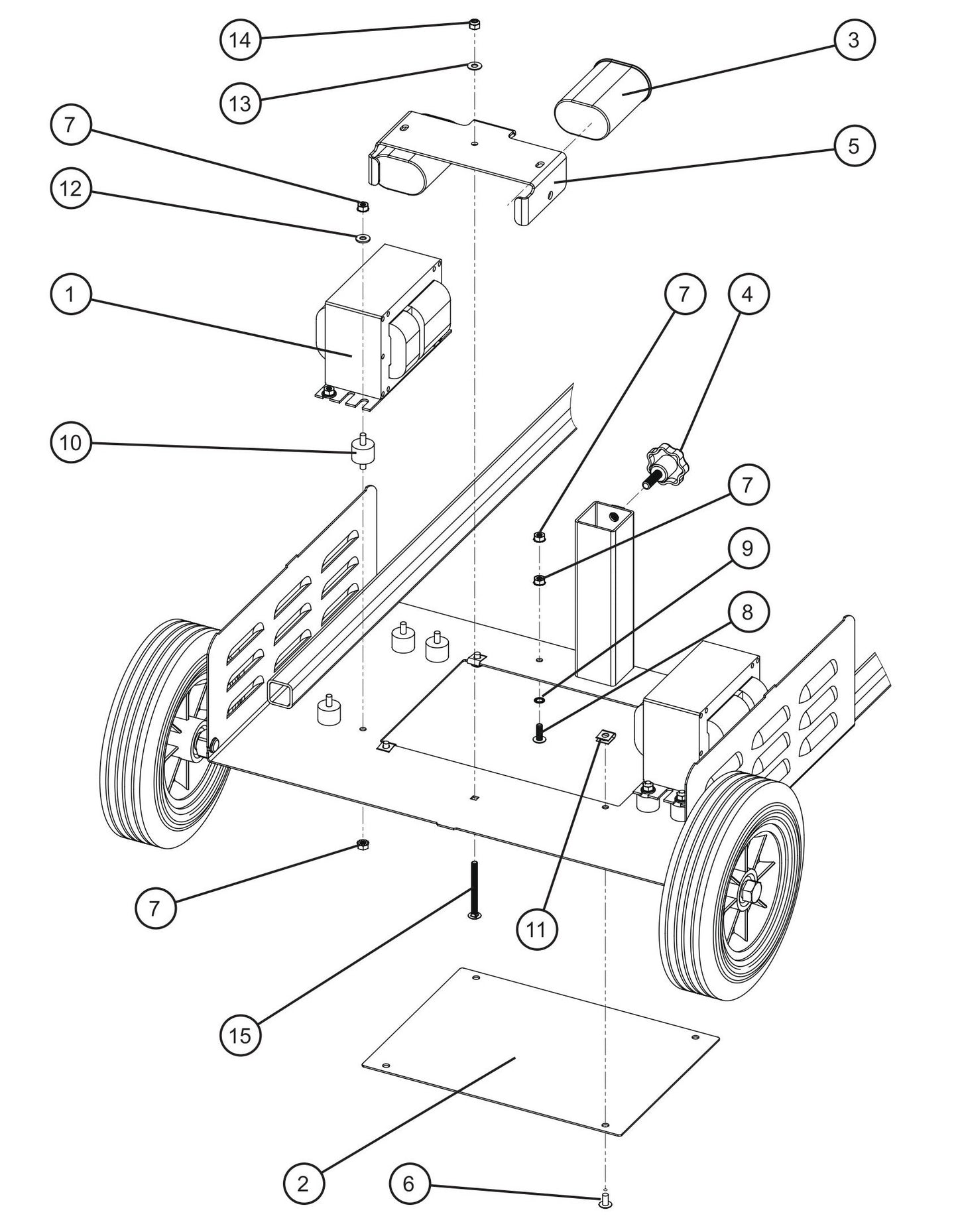

Port-A-Lite 2000 & 2500- PAL2000 Base Assembly Group (2 of 3) Parts By Allmand

Port-A-Lite 2000 & 2500- PAL2000 Base Assembly Group (2 of 3) Parts By Allmand

  • Port-A-Lite 2000 & 2500- PAL2000 Base Assembly Group (2 of 3) Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
310116A Ballast Kit 1000W 50Hz for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
$675.46
3
310115A Capacitor 26Uf 60/50Hz 540V for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
$176.12
4
620550 1/2-13 X 2 1/8 Locking Knob for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$27.20
5
100392P Tabbed Capacitor Clamp for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
Call for Price call for price call for price
6
041078 1/4 - 20 Nc X 1/2 Truss Head Screw for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
7
044021 1/4 Keps Hex Nut Pl for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
$2.99
8
041050 1/4-20 X 3/4 Ph-Truss Head Ms Ss for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
9
043050 1/4 Intl Tooth Lock Washer for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
10
330057 Box Mount Rubber for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$30.23
11
045216 1/4-20 Tinnerman Nut for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
12
047005 1/4 Flat Washer for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
13
047009 1/4 Flat Washer for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
14
044023 1/4-20 Nylock Hex Nut for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
15
100718 1/4-20 X 2 1/4 Carriage Bolt for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
Call for Price call for price call for price
2
Call for Price call for price call for price
4
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
