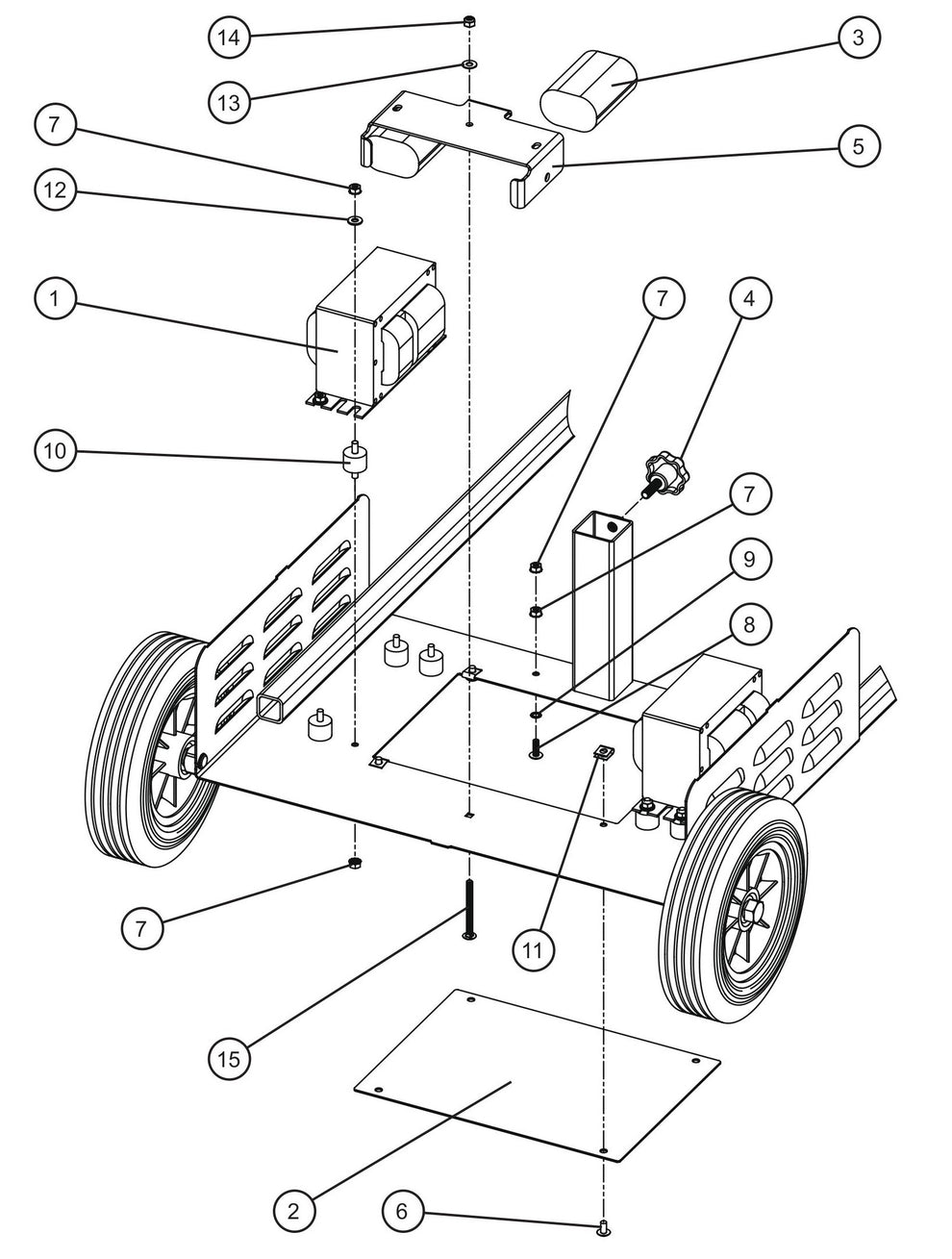

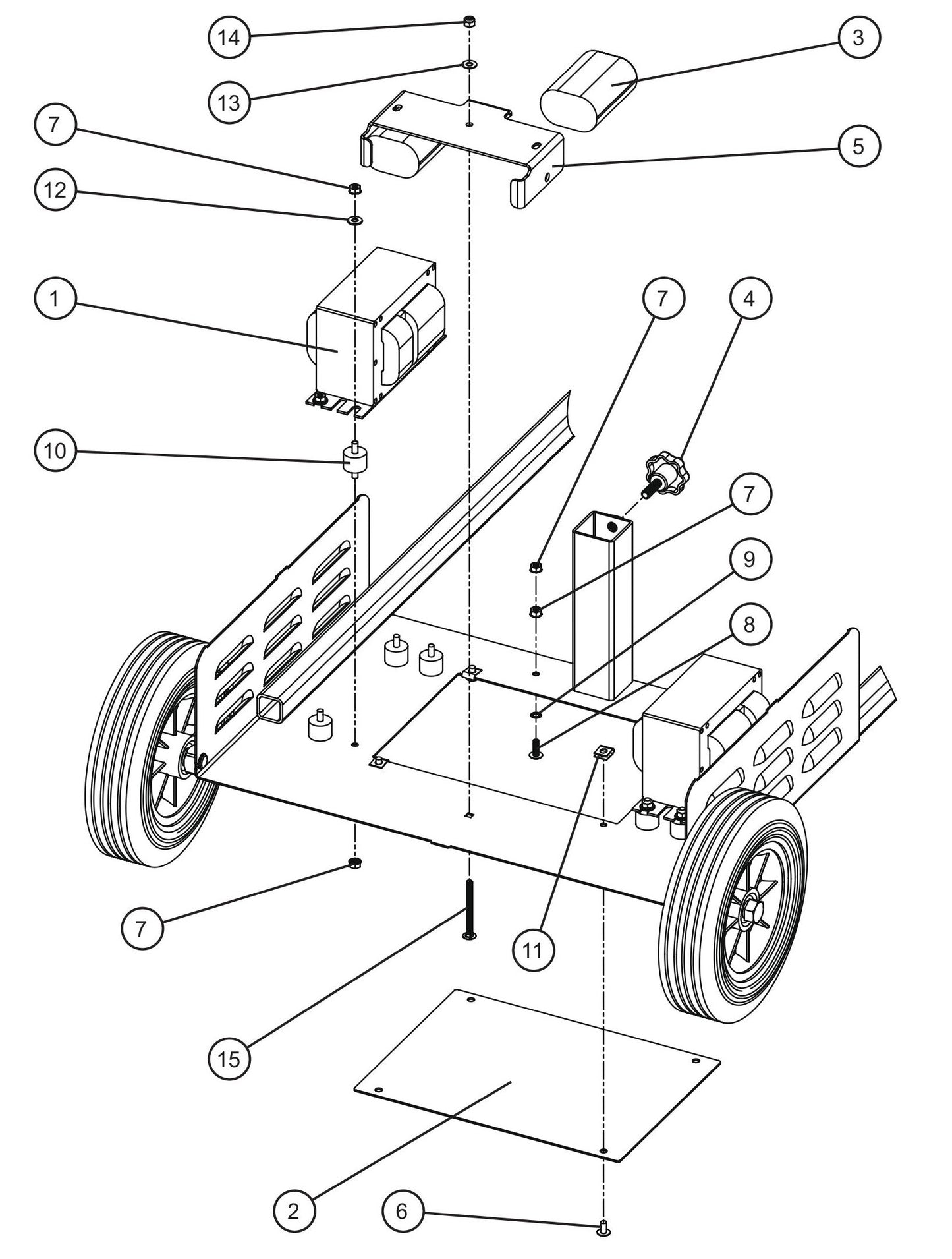

Port-A-Lite 2000 & 2500- PAL2500 Base Assembly Group (2 of 3) Parts By Allmand

Port-A-Lite 2000 & 2500- PAL2500 Base Assembly Group (2 of 3) Parts By Allmand

  • Port-A-Lite 2000 & 2500- PAL2500 Base Assembly Group (2 of 3) Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
3
310391 Capacitor Only, 28 Uf for Maxi-Lite 15330 & 20673 Light Towers by Allmand
$194.00
4
620550 1/2-13 X 2 1/8 Locking Knob for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$27.20
5
100392P Tabbed Capacitor Clamp for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$154.09
6
041078 1/4-20 X 1/2 Ph Truss Screw for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
7
044021 1/4-20 Keps Hex Nut for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
Call for Price call for price call for price
8
041050 1/4 - 20 Nc X 3/4 Round Head Screw for Maxi-Lite 15330 & 20741 Light Towers by Allmand
$2.99
9
043050 1/4 Intl Tooth Lock Washer for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
10
330057 Box Mount Rubber for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$30.23
11
045216 1/4-20 Tinnerman Nut for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
12
047005 1/4 Flat Washer for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
13
047009 1/4 Flat Washer Sae Ss for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
14
044023 1/4-20 Nylock Hex Nut for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
$2.99
15
100718 1/4-20 X 2 1/4 Carriage Bolt for Maxi-Lite Ii V-Series (11-000001 To 11-001671) Light Towers by Allmand
Call for Price call for price call for price
1
Call for Price call for price call for price
2
Call for Price call for price call for price
4
Call for Price call for price call for price
