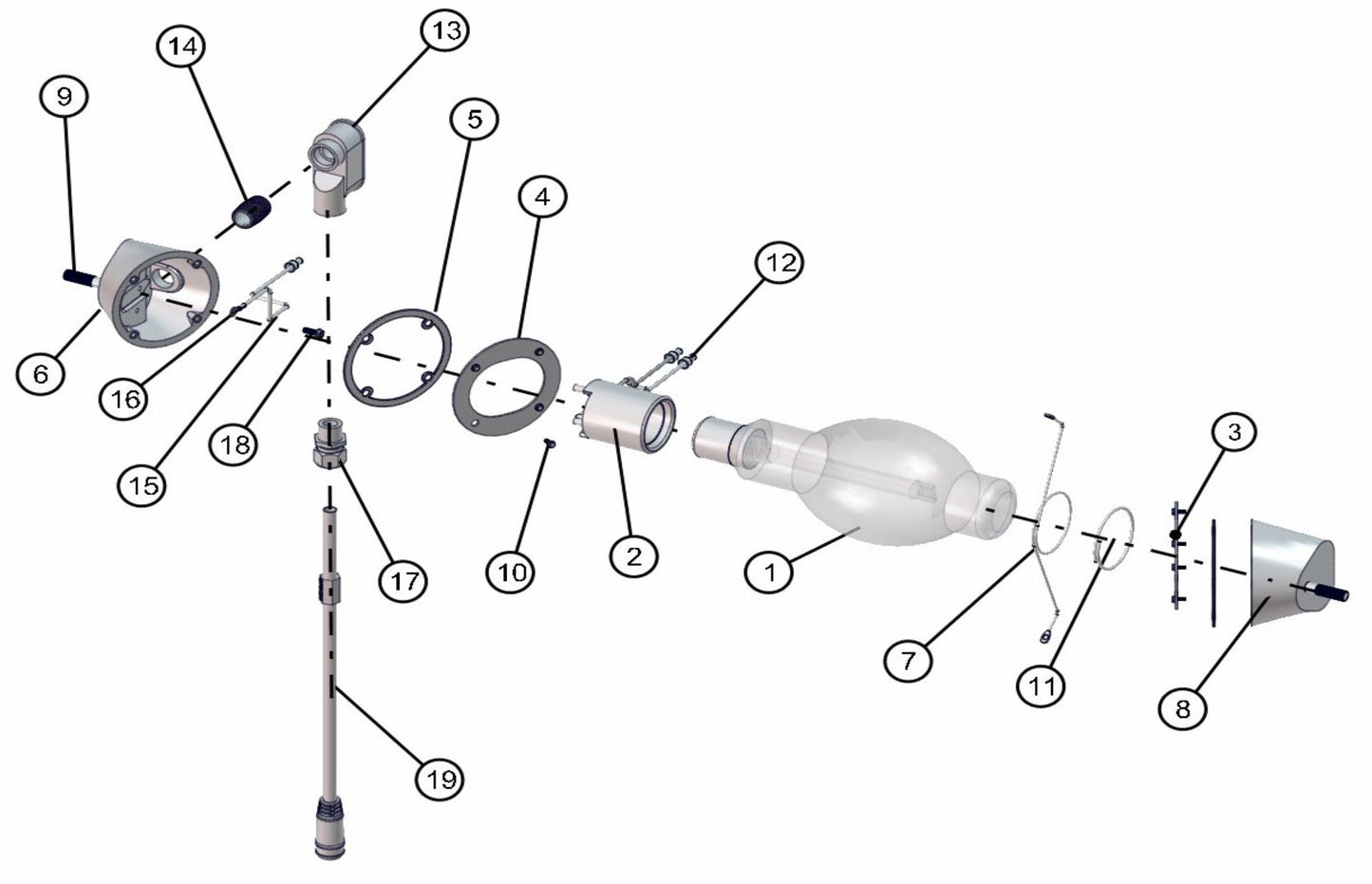

Port-A-Lite AS3000 - SHO 1000W Lamp Assembly Parts By Allmand

Port-A-Lite AS3000 - SHO 1000W Lamp Assembly Parts By Allmand

  • Port-A-Lite AS3000 - SHO 1000W Lamp Assembly Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
610211 Lamp 1000W Bt-37 for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$356.72
2
610212 Ceramic Socket for Maxi-Lite 15330 & 20346 Light Towers by Allmand
$84.00
3
610207 Interior Cover Plate for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$20.78
4
610208 Interior Cover Plate for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$20.78
5
610213 Gasket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$7.28
6
610205 Lh Socket End Casting for Maxi-Lite Hydraulic Tower Light Towers by Allmand
$109.99
7
610209 Lamp Support Tip for Night-Lite Pro V-Series Ce Light Towers by Allmand
$15.26
8
610206 Casting End Sho for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$109.99
9
045142 3/8-24 X 3/8-16 X 2 Stud for Rig Spec V-Series (0001Rs12 To 9999Rs16) Light Towers by Allmand
$2.99
10
041028 #10-24 Nc X 1/2 Hex Head Bolt (Stainless Steel)15 for Maxi-Lite 15330 & 20339 Light Towers by Allmand
$2.99
11
610210 Fiberglass Tube 12” Lamp Support for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$4.88
12
022060 Wire Cap Small for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
13
610214 1/2” Entrance Elbow for Maxi-Lite 15330 & 20364 Light Towers by Allmand
$56.00
14
610215 1/2 Conduit Nipple for Maxi-Lite 15330 & 20365 Light Towers by Allmand
$7.28
16
022155 #10 Elec. Ring for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
17
510007 1/2 Cord Grip for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$32.21
18
041257 10-32 Ground Screw for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
19
310434 Male Connector Cable for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$182.48
15
Call for Price call for price call for price
