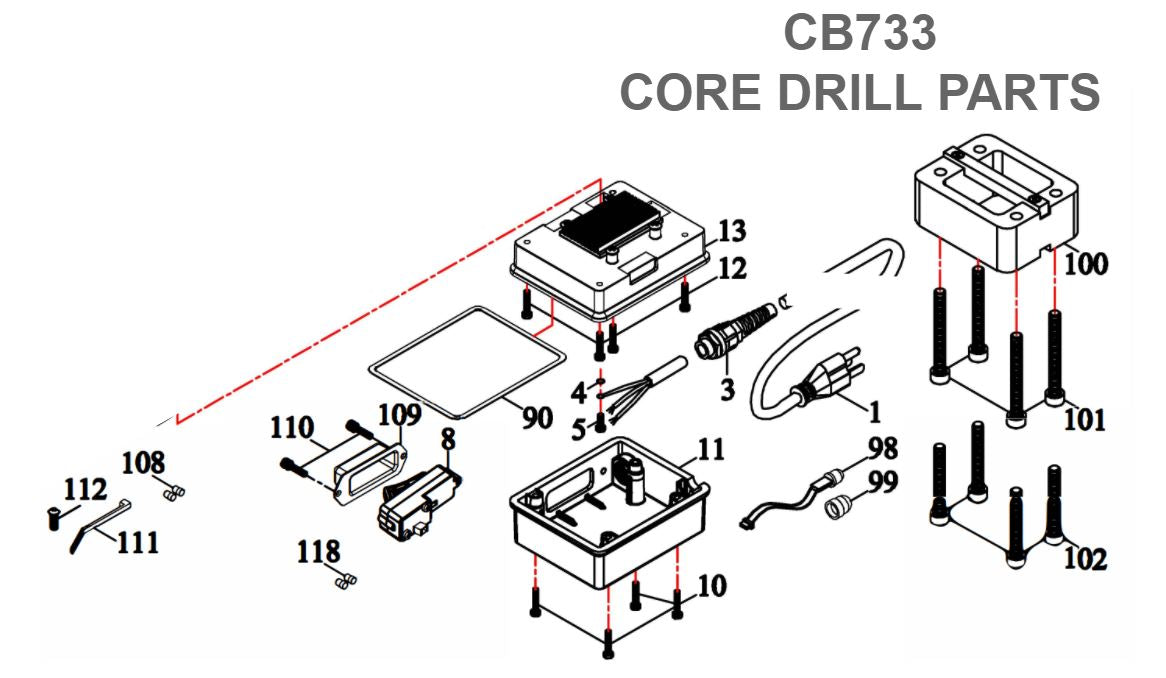

Power Cable and Electronics Unit Parts for CB733 Core Drill by Core Cut Diamond Products

Power Cable and Electronics Unit Parts for CB733 Core Drill by Core Cut Diamond Products

  • Power Cable and Electronics Unit Parts for CB733 Core Drill by Core Cut Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2709083 Power Cable 14AWG for CB733 Core Drill by Core Bore Diamond Products
$97.40
3
2700000 CORD ARMOR for CB733 and CB744 Concrete Drill Core Cut by Diamond Products
$27.98
4
6078432 External Start Washer M4 for CB733 and CB744 Concrete Core Drill by Core Cut Diamond Products
$2.99
5
2709001 Panhead Machine Screw M4 x 10 for CB744 and CB733 Concrete Drill Core Cut by Diamond Products
$3.99
8
2709725 Switch 110V for CB733 and CB744 Concrete Drill by Core Cut Diamond Products
$65.91
10
2709004 Panhead Tapping Screw M4 x 25 for CB733 and CB744 Concrete Drill Core Cut by Diamond Products
$3.99
11
2709107 Cover 110V/220V for CB733 and CB744 Core Drill by Core Cut Diamond Products
$15.66
12
2709006 Panhead Machine Screw with Washer M4 x 12 for CB744 Core Drill by Core Cut Diamond Products
$3.99
13
2709084 Electronic Unit 115V for CB733 Core Drill by Core Cut Diamond Products
$212.85
15
2709009 Flat Washer Ø5 x Ø12 x 1 for CB733 and CB744 Drill by Core Cut Diamond Products
$3.99
90
2709064 GASKET for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
98
2709073 LED OVERLOAD LAMP 110V & 220V for CB744 Concrete Drill Core Cut by Diamond Products
$11.78
99
2709074 LAMP COVER for CB744 Concrete Drill Core Cut by Diamond Products
$12.00
100
2709075 EXTENSION SPACER for CB744 Concrete Drill Core Cut by Diamond Products
$105.96
101
2903249 SOCKET CAP SCREW M8 x 80 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
102
2902221 SOCKET CAP SCREW M8 x 65 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
108
2800029 BUTT CONECTORS for CB744 Concrete Drill Core Cut by Diamond Products
$5.99
109
2709099 SWITCH BOOT for CB744 Concrete Drill Core Cut by Diamond Products
$15.04
110
2709727 PANHEAD TAPPING SCREW M4x12 for CB744 Concrete Drill Core Cut by Diamond Products
$2.99
112
2709728 PANHEAD TAPPING SCREW M4x16 for CB744 Concrete Drill Core Cut by Diamond Products
$2.99
View full details
