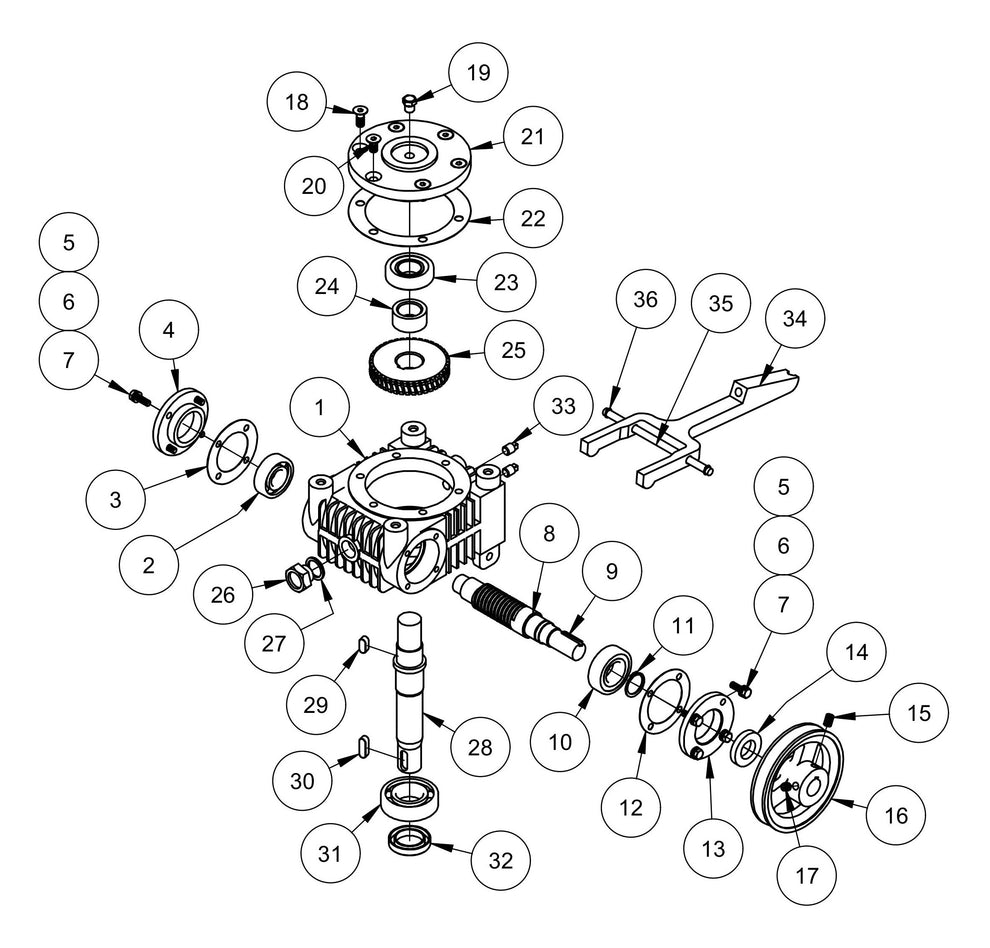

PRO424E-B Vanguard Engine Gearbox Assembly Parts

PRO424E-B Vanguard Engine Gearbox Assembly Parts

  • PRO424E-B Vanguard Engine Gearbox Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
-
064959 GEARBOX, TROWEL WALK VP EDGER 24" by Allen Engineering
$2,221.20
2
073562 BEARING by Allen Engineering
$16.80
3
073563 SEAL, CLOSE COVER by Allen Engineering
$12.96
5
059011 Washer Vp Walker by Allen Enginnering
$4.95
6
059012 SPRING WASHER VP WALKER by Allen Engineering
$3.99
8
073564 WORM by Allen Engineering
$590.40
9
073565 KEY by Allen Engineering
$12.96
10
073566 BEARING by Allen Engineering
$52.80
12
073567 SEAL, SIDE COVER by Allen Engineering
$10.80
14
073568 OIL SEAL by Allen Engineering
$12.96
16
059137 PULLEY VP WALKER by Allen Engineering
$171.60
22
073569 SEAL, TOP by Allen Engineering
$12.00
23
073570 BEARING by Allen Engineering
$39.60
25
073571 WORM GEAR by Allen Engineering
$552.00
29
073572 WORM GEAR SHAFT by Allen Engineering
$192.00
30
073574 KEY by Allen Engineering
$13.20
31
073575 BEARING by Allen Engineering
$32.40
34
059033 Tilt Yoke Vp Walker (Vp424) by Allen Enginnering
$42.33
35
059034 PIN VP WALKER (VP424) by Allen Engineering
$10.80
36
059035 EXTERNAL CIRCLIP VP WALKER (VP424) by Allen Engineering
$3.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

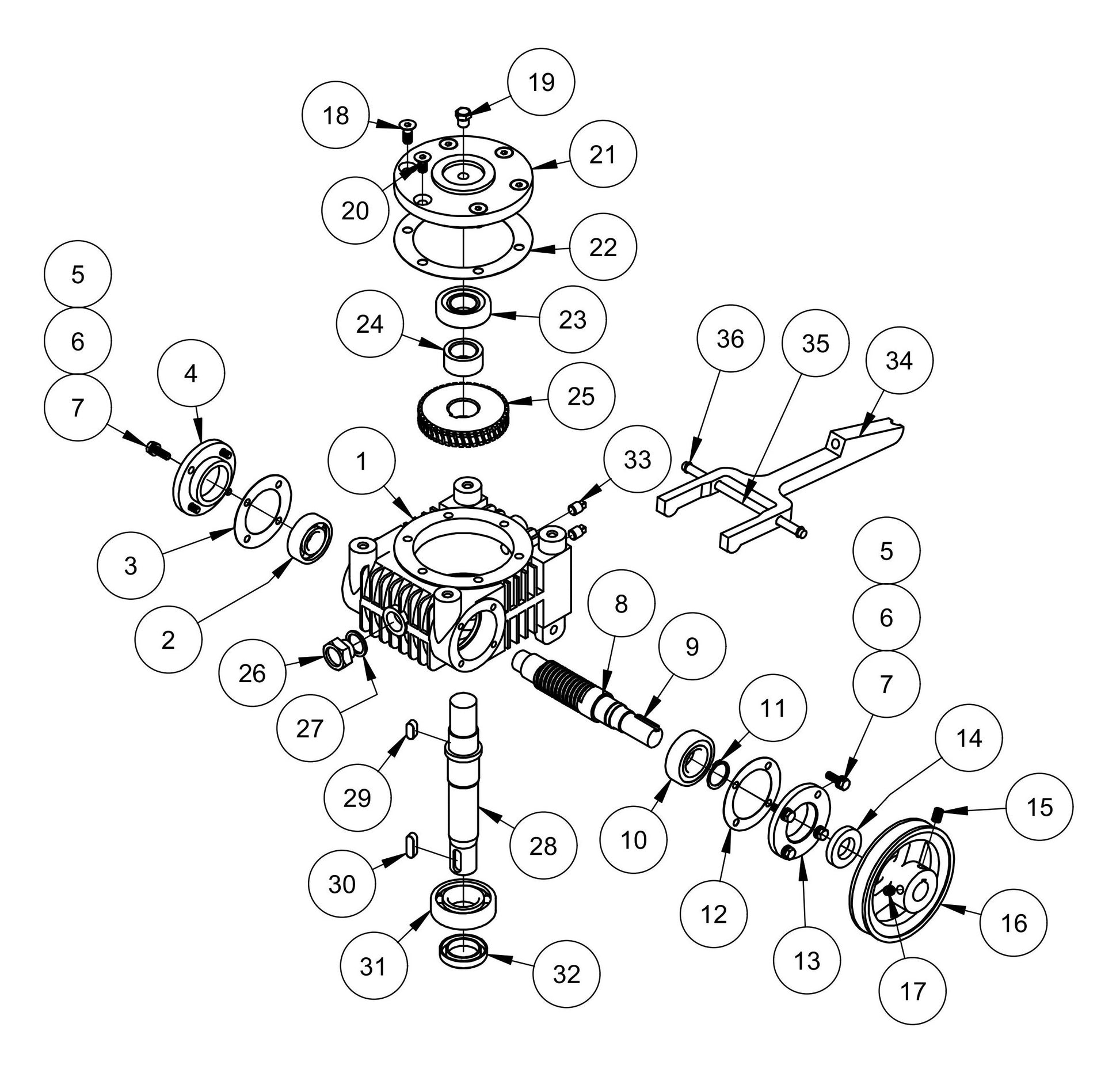

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
