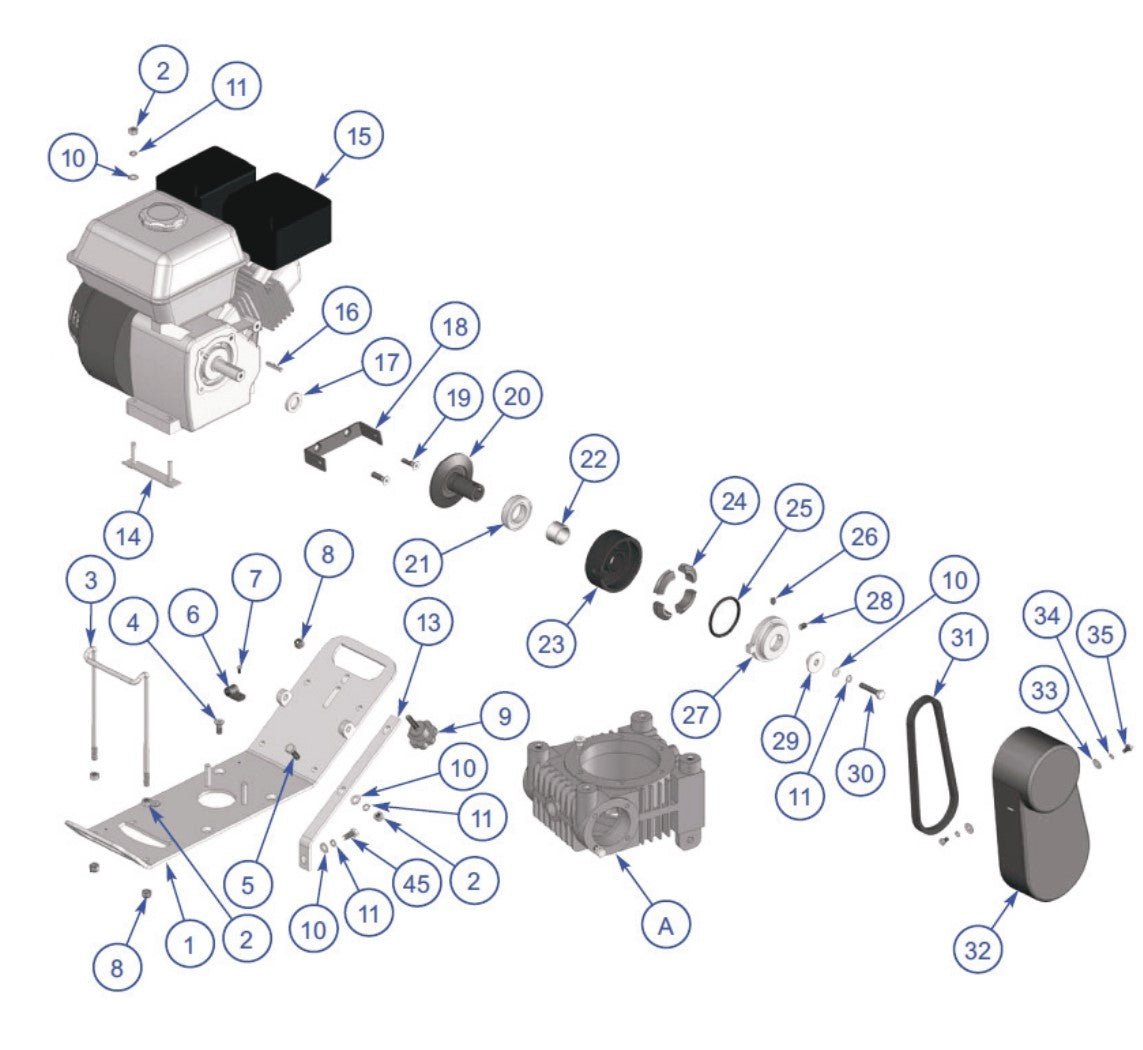

PRO424E Engine Clutch Assembly Parts By Allen Engineering

PRO424E Engine Clutch Assembly Parts By Allen Engineering

  • PRO424E Engine Clutch Assembly Parts By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
059036 VP424 ENGINE PLATE by Allen Engineering
$217.20
2
059037 Nut Vp Walker by Allen Enginnering
$2.99
3
059038 Hook Vp Walker by Allen Enginnering
$18.68
6
059041 Clip Vp Walker Same As 059110 by Allen Enginnering
$4.95
8
059043 Check Nut Vp Walker by Allen Enginnering
$4.95
9
059044 Star Grip Knob Vp Walker by Allen Enginnering
$13.14
11
059046 Spring Washer Vp Walker by Allen Enginnering
$4.95
15
018961 Engine, Gx160-Ut2Qx2, Honda 5.5 Hp by Allen Enginnering
$1,344.60
16
059050 KEY VP WALKER by Allen Engineering
$11.34
18
059052 BRACKET VP WALKER by Allen Engineering
$14.40
19
059053 SOCKET COUNTERSUNK HEAD SCREW by Allen Engineering
$3.99
-
070064 CLUTCH, ASSY VP424 by Allen Engineering
$526.80
26
059031 SOCKET HEAD SCREW VP WALKER by Allen Engineering
$3.99
28
059029 GRUB SCREW VP WALKER by Allen Engineering
$3.99
31
059056 V-Belt Vp424 Walker A23 1/2 by Allen Enginnering
$34.86
32
059057 Belt Cover Vp424 Walker by Allen Enginnering
$118.77
33
059058 WASHER VP WALKER by Allen Engineering
$3.99
35
059060 BOLT VP WALKER by Allen Engineering
$3.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
