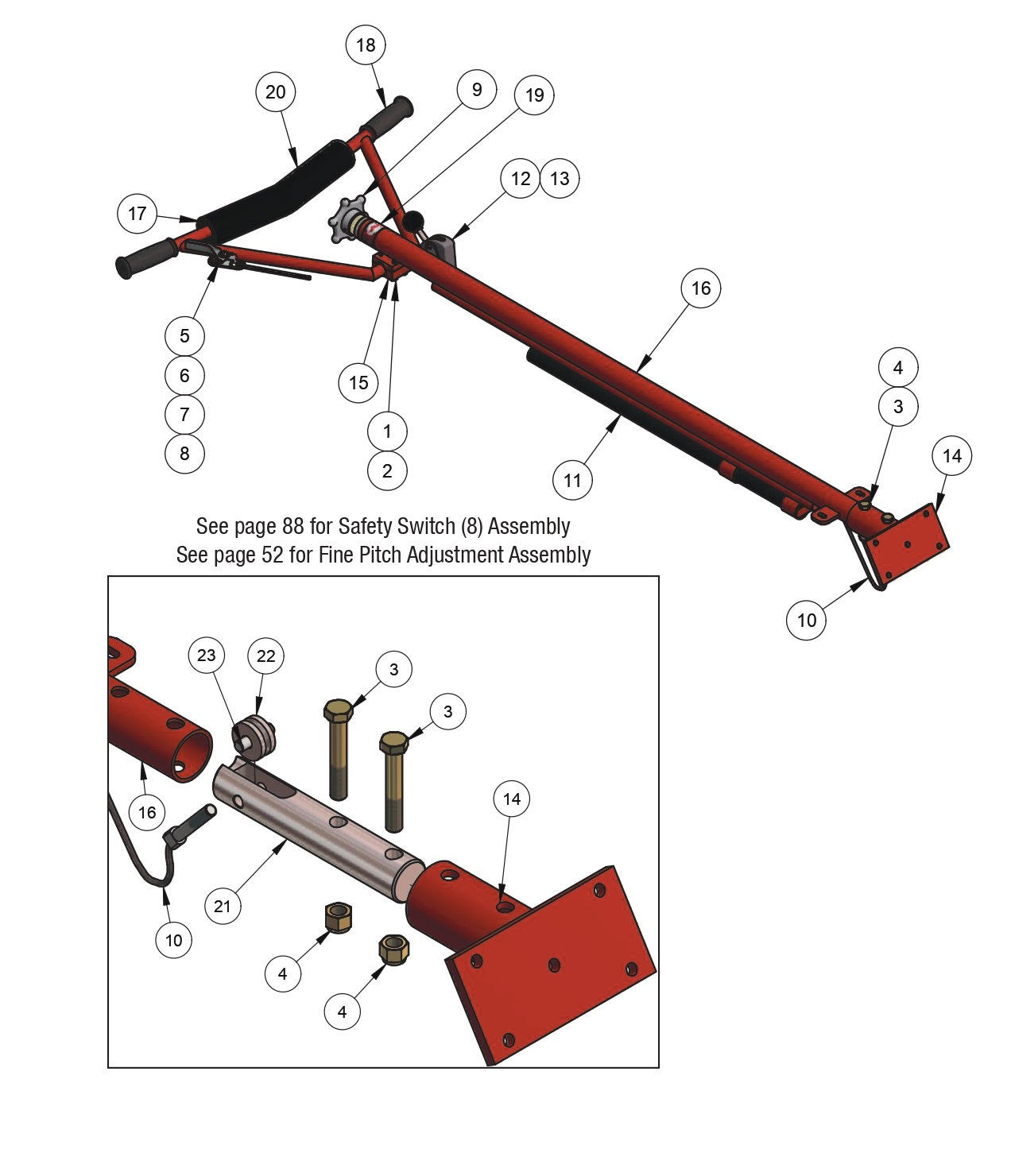

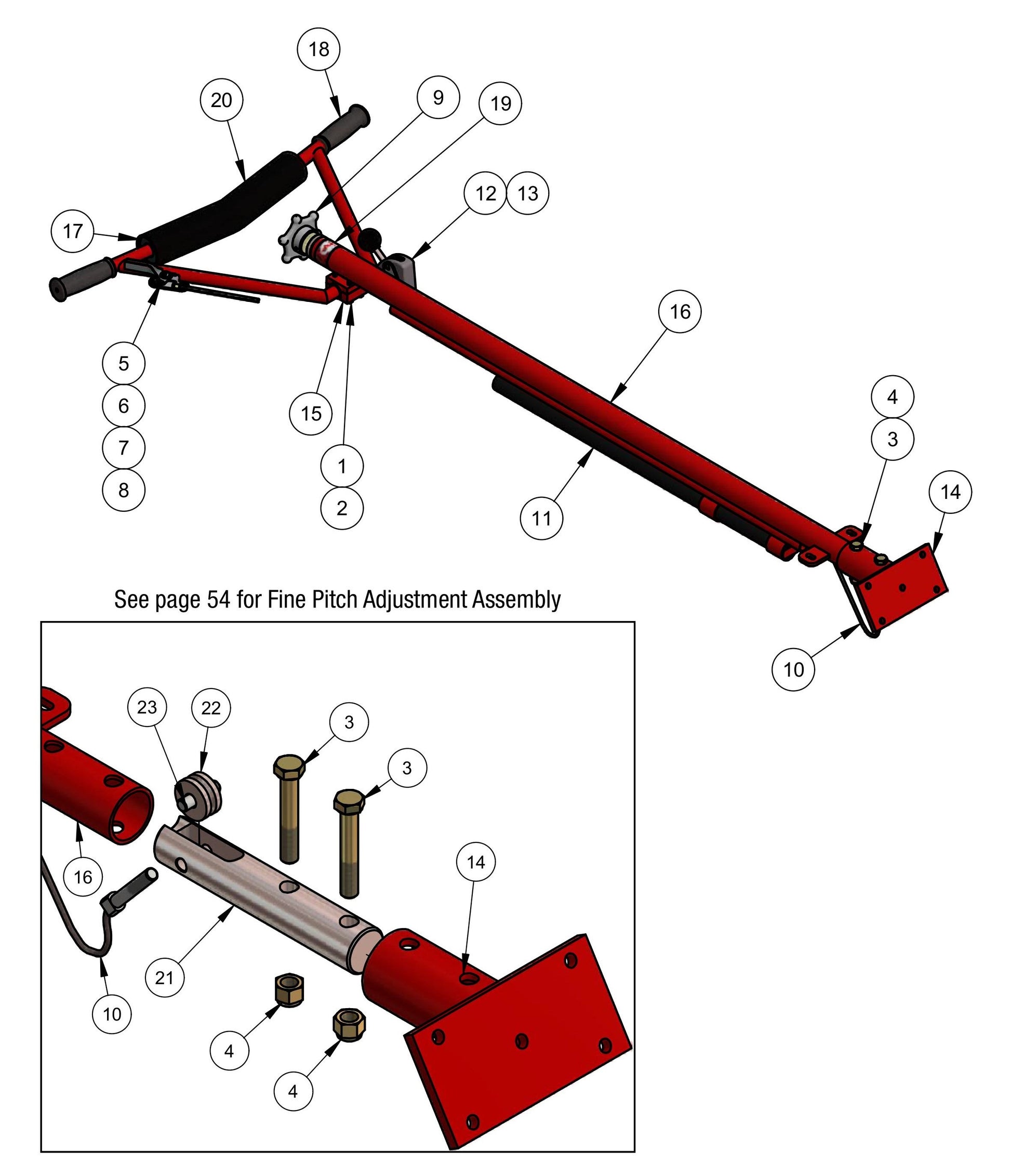

PRO430E/PRO436/PRO436E/PRO436TC/PRO446/PRO446TC Handle, Fine Pitch (Old Model) Assembly Parts By Allen Engineering

PRO430E/PRO436/PRO436E/PRO436TC/PRO446/PRO446TC Handle, Fine Pitch (Old Model) Assembly Parts By Allen Engineering

  • PRO430E/PRO436/PRO436E/PRO436TC/PRO446/PRO446TC Handle, Fine Pitch (Old Model) Assembly Parts By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010005 Fstn, Hhcs 1/4-20 X 1-1/2 Gr 8 by Allen Enginnering
$2.99
2
010089 Fstn, Lw 1/4 by Allen Enginnering
$4.95
3
010075 Fstn, Hhcs 1/2-13 X 3 Gr8 by Allen Enginnering
$5.40
4
011238 Fstn, Nut Hex Nylok 1/2-13 by Allen Enginnering
$4.95
5
015735 Cable, Throttle Assembly - W/B by Allen Enginnering
$35.86
6
010568 Fstn, Rhms 10-32 X 1/2 Gr 8 by Allen Enginnering
$4.95
7
010570 Fstn, Nut Hex 10-32 by Allen Enginnering
$4.95
8
032358 Fstn, No. 10 External-Tooth Washer by Allen Enginnering
$4.95
9
015739 Knob, Adjustable Handle by Allen Enginnering
$110.81
10
015748 Cable, Pitch Control Long Assy by Allen Enginnering
$138.94
11
015769 Bar, Carry F/ Walkbehinds by Allen Enginnering
$91.88
12
018409 Assy, Switch Safety Complete by Allen Enginnering
$308.14
13
013370 Fstn, Rhms 10-32 X 3/8 by Allen Enginnering
$2.99
14
034201 Brkt, Wb Long Handle Foot Pad Mtg by Allen Enginnering
$275.64
16
034285 Extension Wdmt F/Lng Hndl F/Pt by Allen Enginnering
$592.74
17
034441 Insulation, F/ Handlebar by Allen Enginnering
$4.95
18
048308 Grip, Handle (7/8"Id) by Allen Enginnering
$11.21
20
049770 Cover, Wb Handle Pad (Straight) by Allen Enginnering
$48.18
21
015752 Block, Cable Support by Allen Enginnering
$116.53
22
015753 Pulley, Cable by Allen Enginnering
$23.66
23
015754 Pin 3/8 X 1 3/8 Cable Pulley by Allen Enginnering
$12.45
24
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
15
034279 BLOCK, CLAMP ADJ/HAND R/W 034277 by Allen Engineering
$126.00
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
