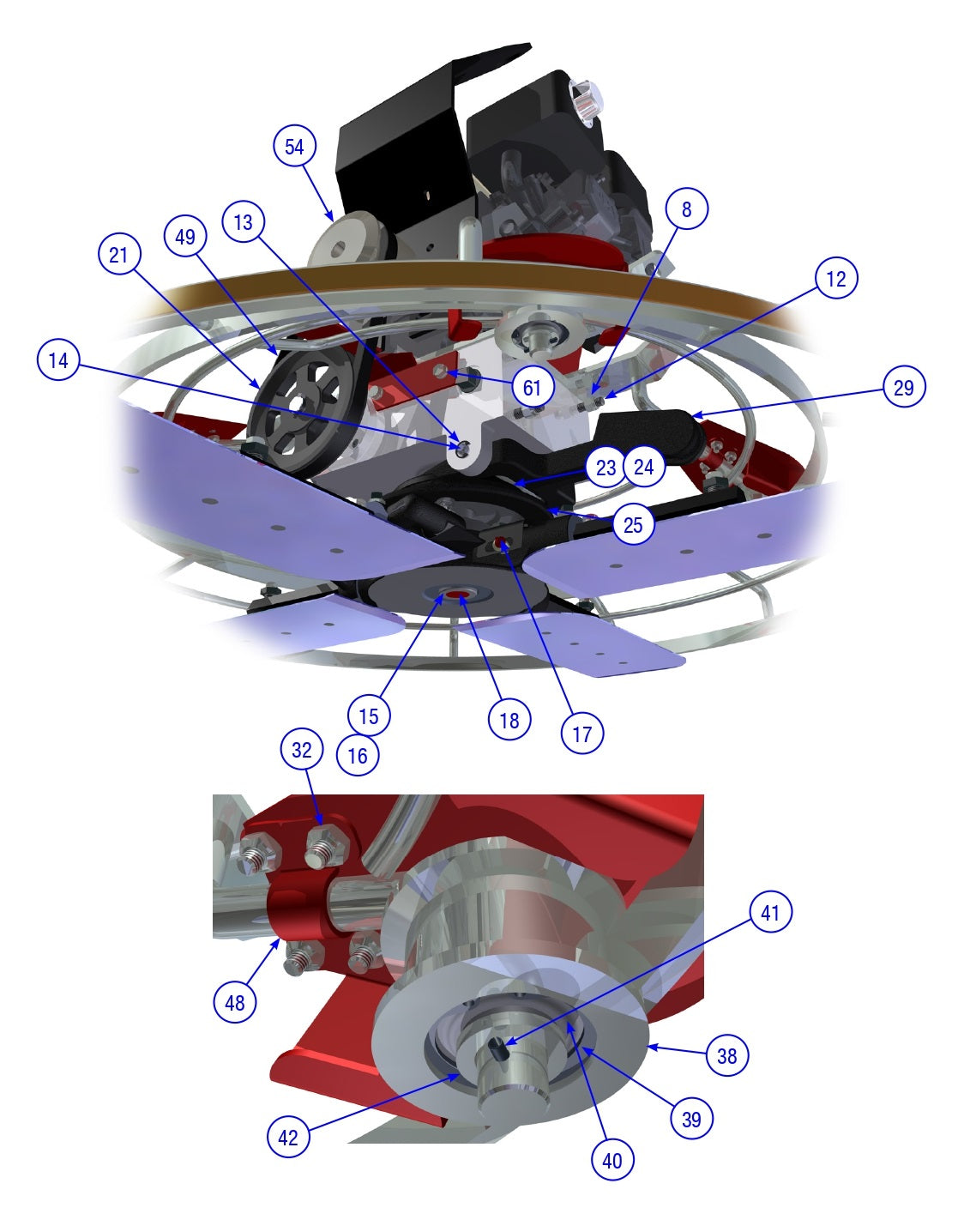

PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Power Unit, 436 Edging Assembly-2 Parts By Allen Engineering

PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Power Unit, 436 Edging Assembly-2 Parts By Allen Engineering

  • PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Power Unit, 436, Edging Assembly Parts-2 By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
8
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
12
015674 Fstn, Stdblt 3/8-16 X 1-3/4 by Allen Enginnering
$9.00
13
015677 Fstn, Ring, Ø7/16 E-Style Retaining by Allen Enginnering
$2.99
14
015678 Fstn, Pin Yoke Arm 7-3/8X7/16 by Allen Enginnering
$17.16
15
015690 Washer, Retaining For Trowels by Allen Enginnering
$29.40
16
015691 Fstn, Shcs 1/2-13 X 1-1/2, Right Hand Thread by Allen Enginnering
$25.20
17
015692 Cap, Ø1/4 Red Grease by Allen Enginnering
$2.99
18
015693 Plug, Plastic Cap Ec12 by Allen Enginnering
$2.99
21
015707 Pulley, Bk60 X 3/4" W/2 Set Screws by Allen Enginnering
$152.39
23
015821 Cap, Pressure Plate by Allen Enginnering
$17.43
24
015822 Bearing, Thrust by Allen Enginnering
$213.18
25
015824 Plate, Pro Rider/Walker Pressure (P by Allen Enginnering
$255.47
29
017264 Yoke, Trowel by Allen Enginnering
$197.21
32
020542 Fstn, Nut Stover Lock 1/4-20 by Allen Enginnering
$4.95
38
037265 Housing, Roller Pt 430 Edger by Allen Enginnering
$104.21
39
037266 Ring, Internal Retaining by Allen Enginnering
$4.99
40
037267 Bearing 203Krr2 by Allen Enginnering
$90.00
41
037269 Fstn, Pin 1/8" X 1" Do Not Use by Allen Enginnering
$2.99
42
037422 Washer, Roller Retaining by Allen Enginnering
$9.00
48
040860 Bracket, Edger Covers 430 & 436 by Allen Enginnering
$19.80
49
041325 V-Belt, #6929 Gates by Allen Enginnering
$80.68
49
041324 V-Belt, #6931 Gates by Allen Enginnering
$73.95
54
048239 Clutch, 3/4" Bore by Allen Enginnering
$352.96
54
047843 Clutch, 1" Bore Nr We37 by Allen Enginnering
$302.54
61
010019 Fstn, Hhcs 5/16-18 X 3/4 Gr8 by Allen Enginnering
$4.95
49
078506 V-BELT, MITSUBOSHI B30 by Allen Engineering
$44.40
54
078507 ASSEMBLY, CLUTCH 1" BORE by Allen Engineering
$657.60
