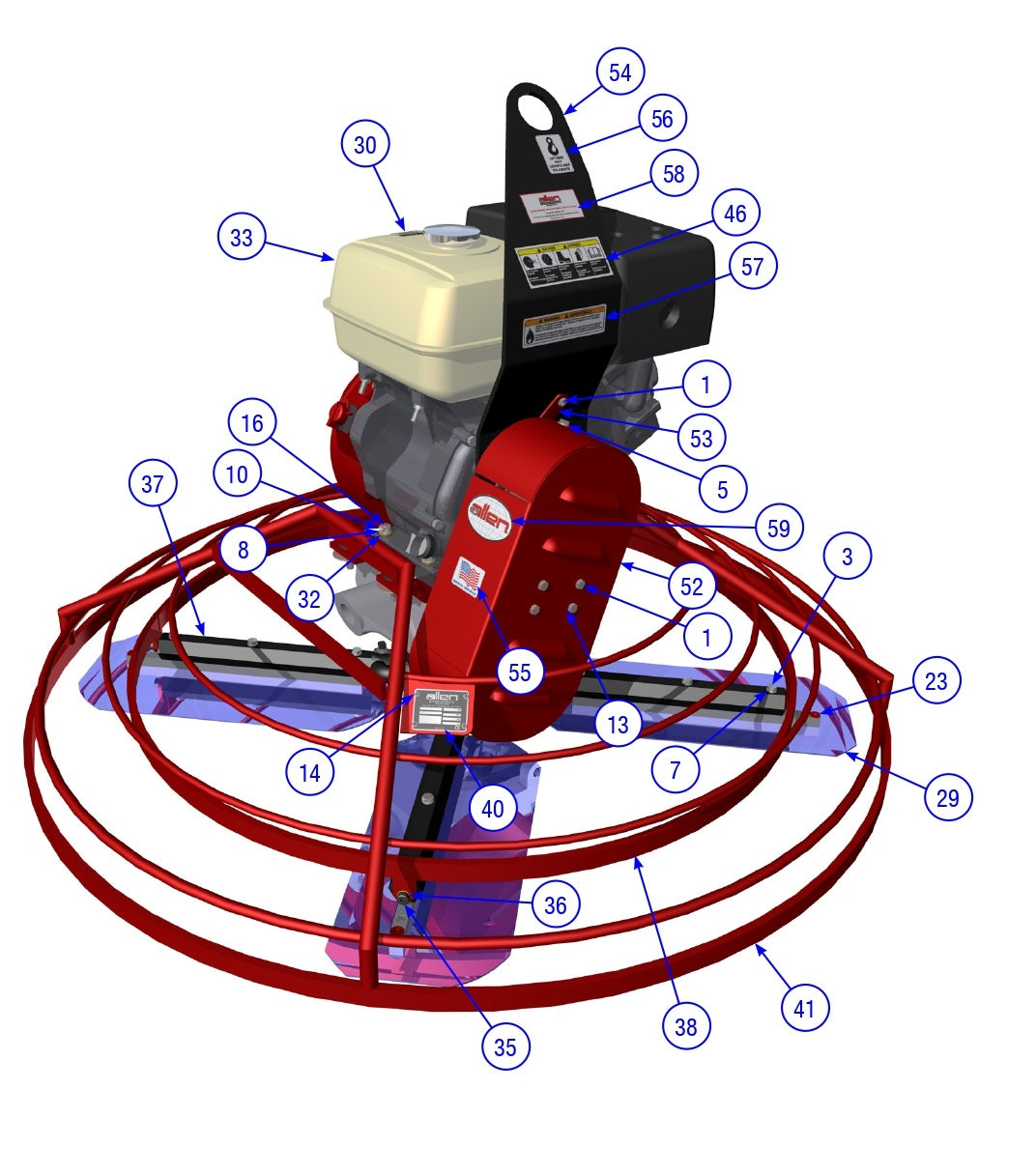

PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Power Unit 446SD Assembly-1 Parts By Allen Engineering

PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Power Unit 446SD Assembly-1 Parts By Allen Engineering

  • PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Power Unit, 446SD, Assembly Parts-1 By Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010002 Fstn, Hhcs 1/4-20 X 3/4 Gr8 by Allen Enginnering
$2.99
2
010019 Fstn, Hhcs 5/16-18 X 3/4 Gr8 by Allen Enginnering
$4.95
3
010024 Fstn, Hhcs 5/16-18 X 2 Gr8 by Allen Enginnering
$4.95
4
010039 Fstn, Hhcs 3/8-16 X 1-3/4 Gr8 by Allen Enginnering
$4.95
5
010081 Fstn, Fw 1/4 Grd8 by Allen Enginnering
$4.95
6
010089 Fstn, Lw 1/4 by Allen Enginnering
$4.95
7
010090 Fstn, Lw 5/16 Grd8 by Allen Enginnering
$4.95
8
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
9
010098 Fstn, Nut Hex 1/4-20 Grd8 by Allen Enginnering
$4.95
10
010102 Fstn, Nut Hex 3/8-16 Grd8 by Allen Enginnering
$2.99
11
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
12
012387 Bushing, H-3/4" Bore, Browning by Allen Enginnering
$36.11
13
012753 Fstn, Lw 1/4 Int/Ext by Allen Enginnering
$4.95
15
015202 Gearbox, Std Walk Behind by Allen Enginnering
$1,383.55
16
015674 Fstn, Stdblt 3/8-16 X 1-3/4 by Allen Enginnering
$9.00
17
015677 Fstn, Ring, Ø7/16 E-Style Retaining by Allen Enginnering
$2.99
18
015678 Fstn, Pin Yoke Arm 7-3/8X7/16 by Allen Enginnering
$17.16
19
015690 Washer, Retaining For Trowels by Allen Enginnering
$29.40
20
015691 Fstn, Shcs 1/2-13 X 1-1/2, Right Hand Thread by Allen Enginnering
$25.20
21
015692 Cap, Ø1/4 Red Grease by Allen Enginnering
$2.99
22
015693 Plug, Plastic Cap Ec12 by Allen Enginnering
$2.99
23
015694 Plug W-1 Red Plastic Tapered by Allen Enginnering
$2.99
24
015696 Key, .25" X 1.25"Lg Hard Rad. by Allen Enginnering
$9.00
25
015711 Fstn, Fhscs 3/8-16 X 3/4 by Allen Enginnering
$4.95
26
015821 Cap, Pressure Plate by Allen Enginnering
$21.43
27
015822 Bearing, Thrust by Allen Enginnering
$213.18
28
015824 Plate, Pro Rider/Walker Pressure (P by Allen Enginnering
$255.47
31
017264 Yoke, Trowel by Allen Enginnering
$197.21
32
017751 Fstn, Fw 3/8 Hard A325 Grade 8 by Allen Enginnering
$2.99
34
020514 Fstn, Nut Stover Lock 3/8-16 by Allen Enginnering
$4.95
35
025091 Fstn, 5/16-18X1/2Xø3/8X3/8 Shldr Sc by Allen Enginnering
$9.00
36
025092 Bushing, 3/8 X 1/2 X 5/16 Brnz by Allen Enginnering
$9.00
37
026588 Spider Assy, 1200Sd Lh-Som by Allen Enginnering
$1,792.80
38
028003 Ring, Stabilizer Sd by Allen Enginnering
$357.44
42
037648 Bushing, Nitrile T Mount 436 & 446 by Allen Enginnering
$10.80
45
037675 Fstn,Fender Washer 3/8 X 1 1/4 by Allen Enginnering
$4.95
47
042057 Clutch, Walk Behind 2 Groove by Allen Enginnering
$413.46
51
042070 V-Belt, B-30 by Allen Enginnering
$48.00
56
053448 Decal, Lift Here Only (Sp) by Allen Enginnering
$6.23
29
016094AV-4 TROWEL BLADE, COMBO 8 X 18 BLUE by Allen Engineering
$154.80
30
016191 DECAL, ALLOW ENG TO COOL 2 MIN by Allen Engineering
$5.99
39
028899 PULLEY, 2BK60 by Allen Engineering
$663.60
41
037626 RING, W/B 446 SERIES 3 (USE 053285) by Allen Engineering
$741.60
43
037661 PLATE, ADAPTOR - 8 & 11 HP HK FORME by Allen Engineering
$105.60
44
037665 PLATE, ADAPTOR F/ 11 HP HO&KA by Allen Engineering
$224.40
46
039048 DECAL, GEN PROTECTION WARNING by Allen Engineering
$5.99
50
042065 BRKT, 446SD 11HO 2GR BELT GUARD MTG by Allen Engineering
$81.60
52
048437 GUARD, BELT F/ 446SD WB by Allen Engineering
$266.40
53
048438 CLIP, HONDA ENGINE GUARD MOUNT WB by Allen Engineering
$12.96
58
056336 DECAL, AEC 1.5" X 3.25" WHITE/RED by Allen Engineering
$37.20
59
056341 DECAL, ALLEN OVAL 2" X 3.34" WHITE by Allen Engineering
$11.34
