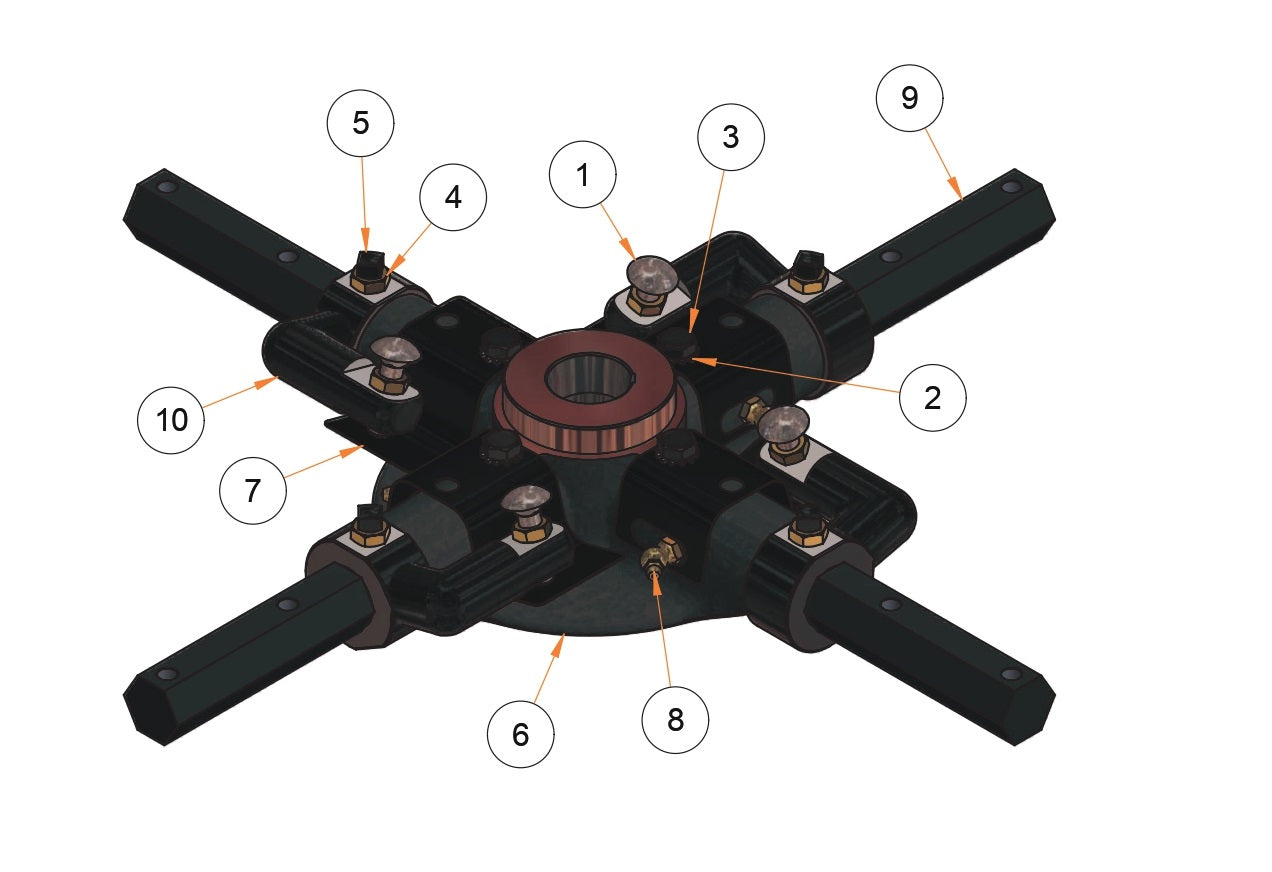

PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Spider, 430, Edging Assembly Parts By Allen Engineering

PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Spider, 430, Edging Assembly Parts By Allen Engineering

  • PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Spider, 430, Edging Assembly Parts By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
-
032235 Spider Assy, Std 750 Lh (Som) by Allen Enginnering
$1,407.35
1
012990 Fstn, Cablt 3/8-16 X 1-1/4" by Allen Enginnering
$10.20
2
015682 Fstn, Lw Ext Star 3/8 by Allen Enginnering
$4.95
3
015683 Fstn, 3/8-16 X 7/8 Dog Cap Screw (P by Allen Enginnering
$7.20
4
015684 Fstn, Nut Hex Jam 3/8-16 Gr8 by Allen Enginnering
$4.95
5
015686 Fstn, Sqhss 3/8-16 X 1 by Allen Enginnering
$2.99
6
015816 USE 064221 - SPIDER, 4-BOSS CW STD by Allen Engineering
$211.20
7
016920 Spring Clip, Universal Spiders by Allen Enginnering
$14.40
8
024755 Fitting,1/8-27 Npt 45° Grease by Allen Enginnering
$5.99
9
028751 Trowel Arm, 750 Std Spider "A" by Allen Enginnering
$112.05
10
033032 Lift Lever, Std Universal by Allen Enginnering
$72.60
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
