PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Spider 446SD Assembly Parts By Allen Engineering

PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Spider 446SD Assembly Parts By Allen Engineering

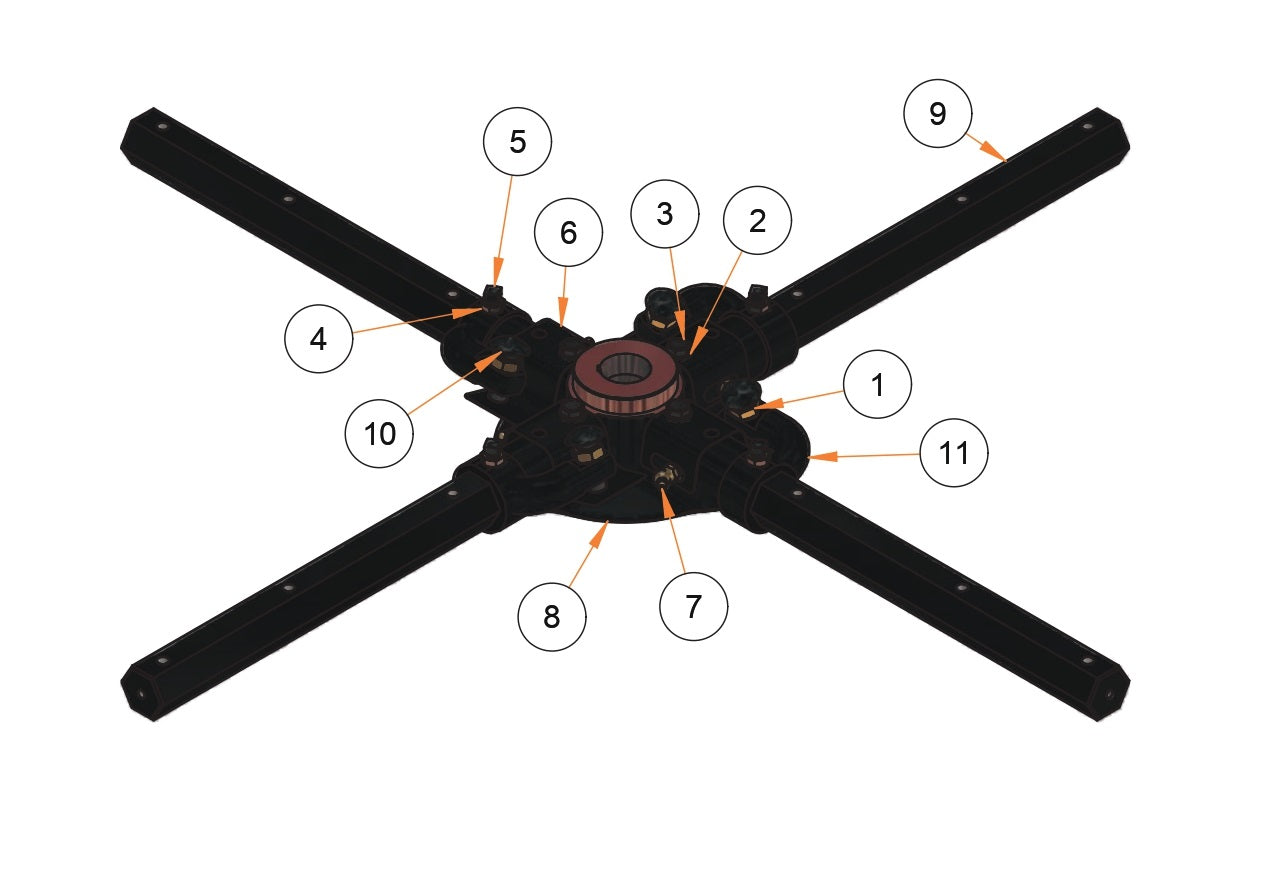

  • PRO430E / PRO436 / PRO436E / PRO436TC / PRO446 / PRO446TC Spider, 466SD, Edging Assembly Parts By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
-
026588 Spider Assy, 1200Sd Lh-Som by Allen Enginnering
$1,792.80
1
010050 Fstn, Nut Hex Jam 1/2-13 Grd8 by Allen Enginnering
$3.99
2
015682 Fstn, Lw Ext Star 3/8 by Allen Enginnering
$4.95
3
015683 Fstn, 3/8-16 X 7/8 Dog Cap Screw (P by Allen Enginnering
$7.20
4
015684 Fstn, Nut Hex Jam 3/8-16 Gr8 by Allen Enginnering
$4.95
5
015686 Fstn, Sqhss 3/8-16 X 1 by Allen Enginnering
$2.99
6
016920 Spring Clip, Universal Spiders by Allen Enginnering
$14.40
7
024755 Fitting,1/8-27 Npt 45° Grease by Allen Enginnering
$5.99
8
026942 Spider, Univ 4-Boss Mach Cw Sd by Allen Enginnering
$672.30
9
026944 Trowel Arm, 1200 Sd Spider "C" by Allen Enginnering
$224.10
10
028216 Fstn, Cablt 1/2-13 X 1-1/2 Gr8 by Allen Enginnering
$7.20
11
033034 Lever, Lift Sd Universal by Allen Enginnering
$62.04
View full details
