PS41 Bosch 12V Max Lithium Ion Impact Driver Bosch Impact Driver Parts Diagram

PS41 Bosch 12V Max Lithium Ion Impact Driver Bosch Impact Driver Parts Diagram

  • PS41 Bosch 12V Max Lithium Ion Impact Driver Bosch Impact Driver Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
4
16072335DD Electronics Module by Bosch
$55.00
5
2609170134 Shrinkable Tube by Bosch
$3.91
6
2609100817 Changeover Lever by Bosch
$3.91
9
2610007734 Manufacturer's Nameplate L by Bosch
$3.91
41
2609132846 Sticker | Genuine OEM Bosch Part
$3.91
45
2609199241 Gear Box | Genuine OEM Bosch Part
$83.73
48
2609170121 Sealing Ring by Bosch
$3.91
91
1607a350c8 12v Lithium-ion Battery by Bosch
$44.58
101
2609110883 Screw | Genuine OEM Bosch Part
$3.91
102
2609110950 Torx Flat-head Screw by Bosch
$3.91
103
2609110537 Clip | Genuine OEM Bosch Part
$3.91
104
2609110991 Pan Head Screw by Bosch
$3.91
653
2607225139 Charger | Genuine OEM Bosch Part
$53.92
802
2609199281 Motor | Genuine OEM Bosch Part
$38.50
808
2610007736 Nameplate | Genuine OEM Bosch Part
$3.91
858
2609170129 Carrying Loop by Bosch
$3.91
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

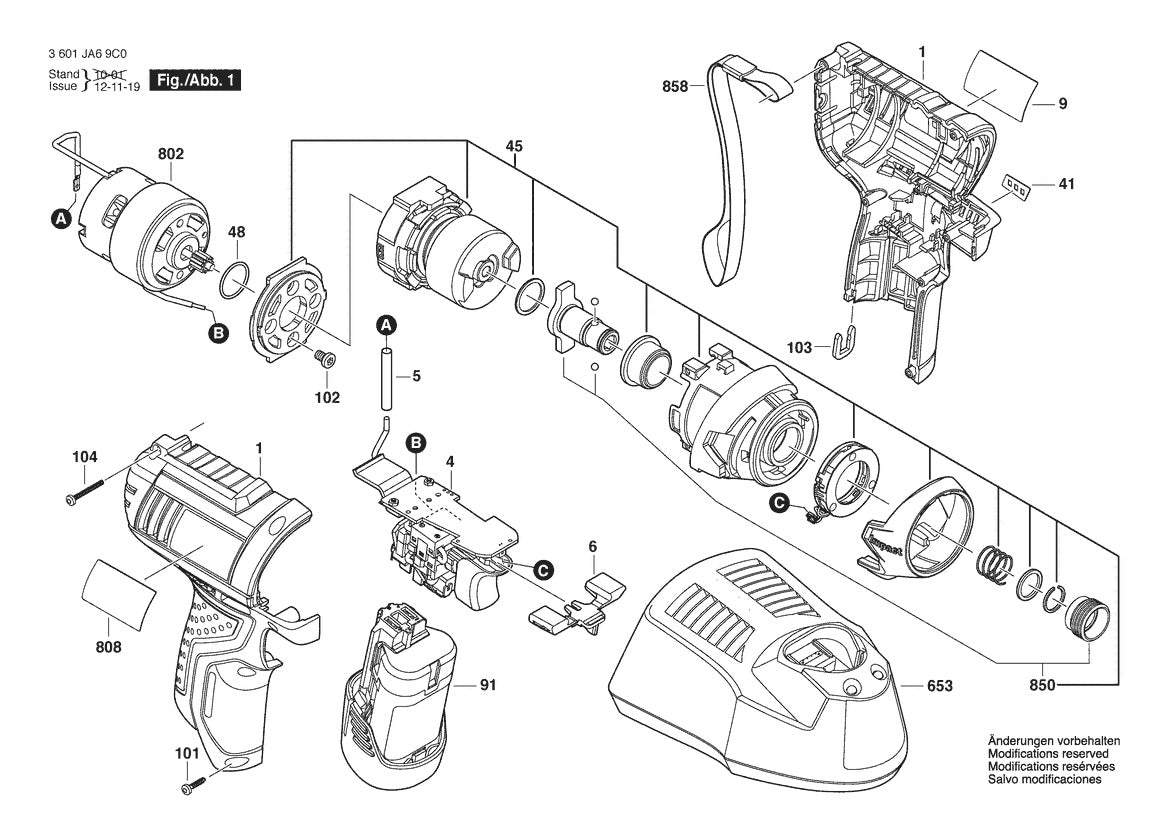

View the Bosch PS41 Bosch 12V Max Lithium Ion Impact Driver parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
