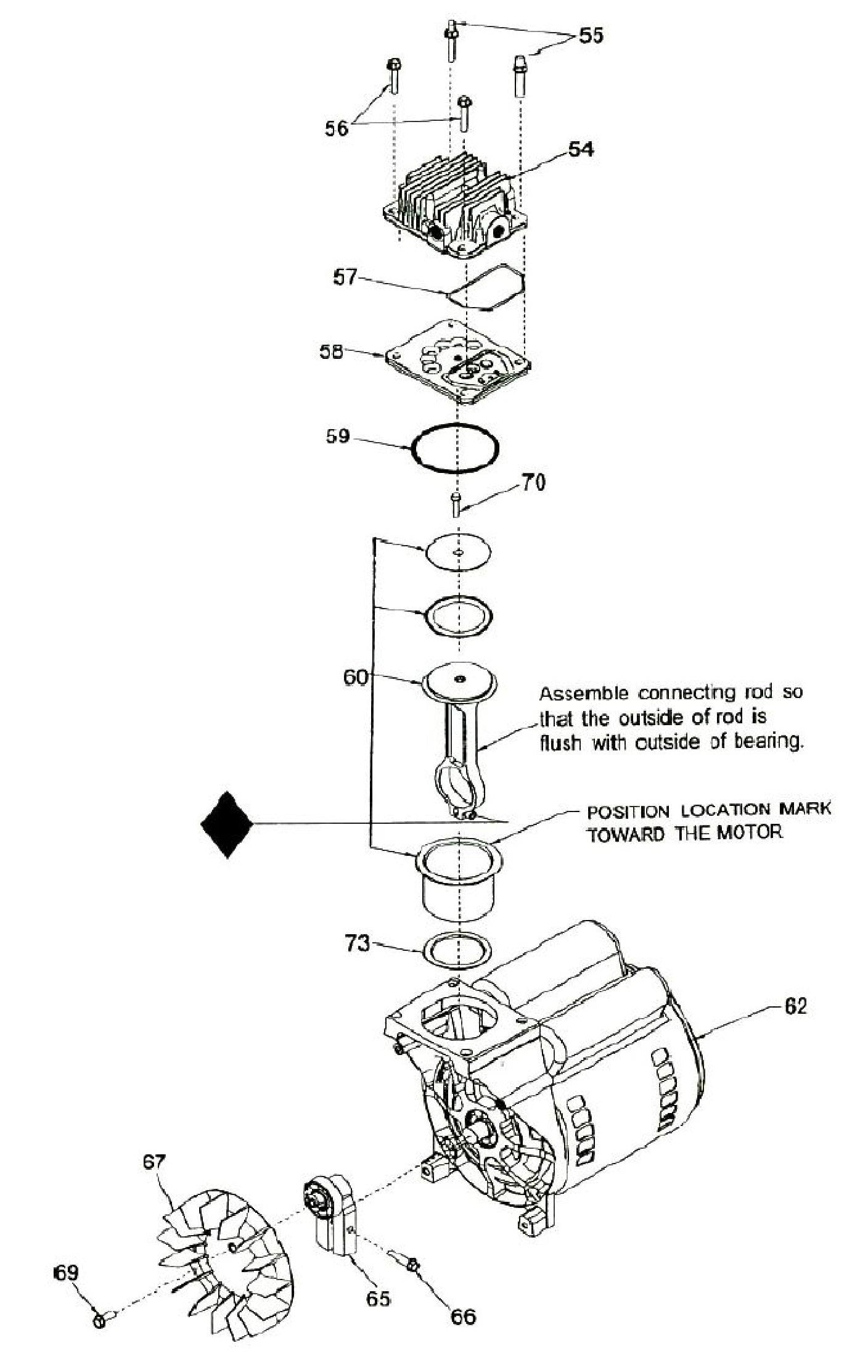

MAC2200 Pump/Motor Assembly Parts

MAC2200 Pump/Motor Assembly Parts

  • MAC2200 Pump/Motor Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
54
AC-0236 AC0236 NLA Head fits Makita MAC2200 Air Compressor NLA
Call for Price call for price call for price
55
SSF-589 SSF589 Stud 1/4"-20 X 1-1/4" Obs,No Longer Available fits Makita MAC2200 Air Compressor
$4.95
56
SSF-927 SSF927 NLA Screw 1/4"-20 X 1-1/4" fits Makita MAC2200 Air Compressor
Call for Price call for price call for price
57
ACG-45 ACG45 O-Ring - Can Use Porter Cable Part fits Makita MAC2200 Air Compressor
$6.90
58
AC-0032 AC0032 Valve Plate Ass'y fits Makita MAC2200 Air Compressor
$32.66
59
SSG-8156 SSG8156 NLA O-Ring fits Makita MAC2200 Air Compressor
Call for Price call for price call for price
60
KK-4835 KK4835 Piston Cylinder Kit Obs/Nla fits Makita MAC2200 Air Compressor NLA
$120.00
62
MO-9045 MO9045 Motor fits Makita MAC2200 Air Compressor
$376.60
66
SSF-615 SSF615 Screw, 1/4-20 Unc-2A fits Makita MAC2200 Air Compressor
$3.85
67
AC-0108 AC0108 Fan (Use Pc Ac0108 Sinceno Longer Makes This) - Obsolete, No Longer Availbale fits Makita MAC2200 Air Compressor
$6.21
69
SSF-586 SSF586 Screw 1/4-20 Unc X .75 - Obsolete, No Longer Available fits Makita MAC2200 Air Compressor
$4.95
70
SSF31581 SCREW 1024 X .75 T25 TORX, MAC1200 BY MAKITA
$5.99
73
DAC-161 DAC161 Shim fits Makita MAC2200 Air Compressor
$5.75
-
KK4315 PRESSURE RELIEF VALVE, MAC1200 BY MAKITA
$15.53
-
AC0281 AIR FILTER REPLACEMENT, MAC1200 BY MAKITA
$29.67
65
AC-0140 AC0140 Eccentric Flywheel Bearing fits Makita MAC2200 Air Compressor
$55.09
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
