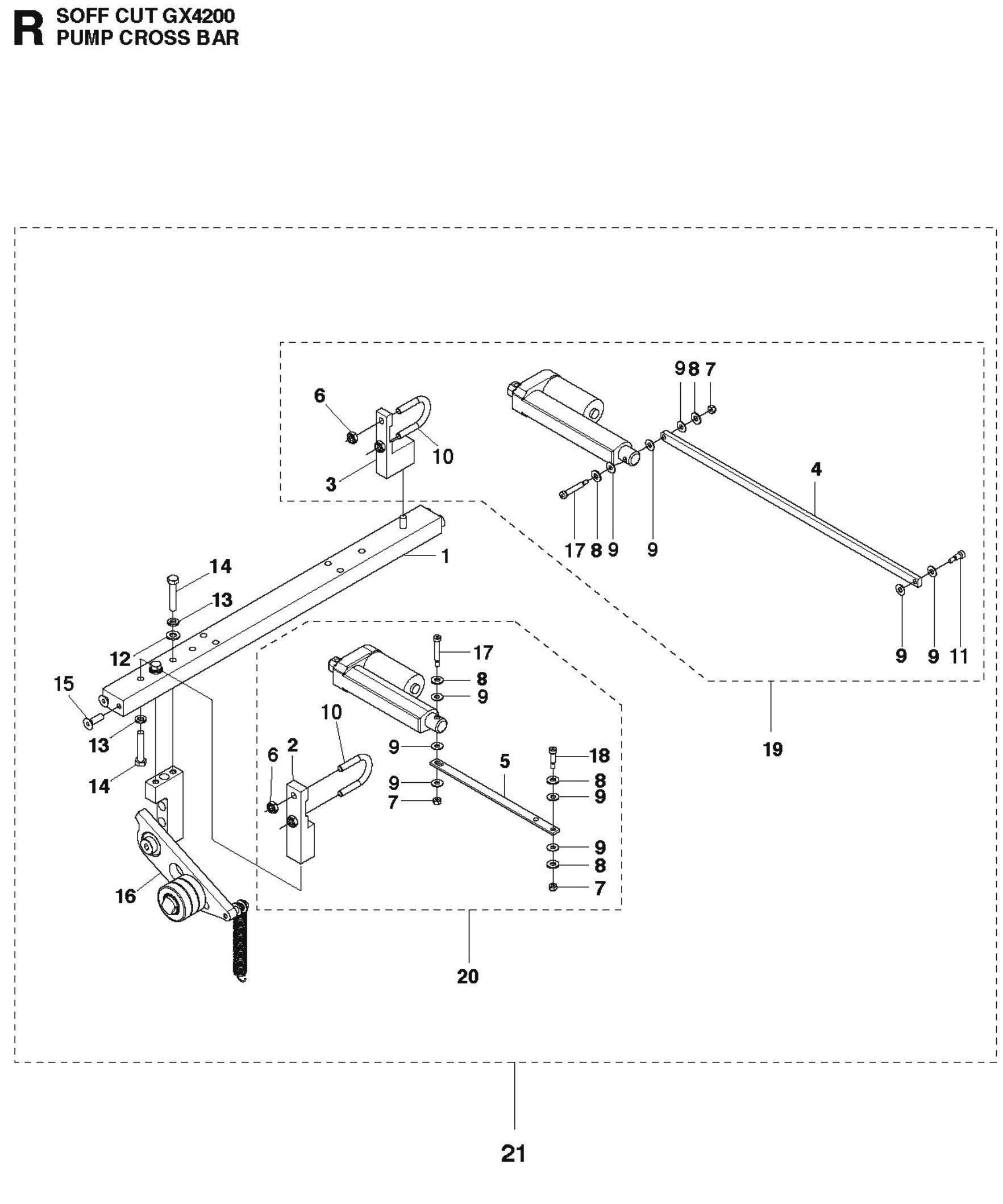

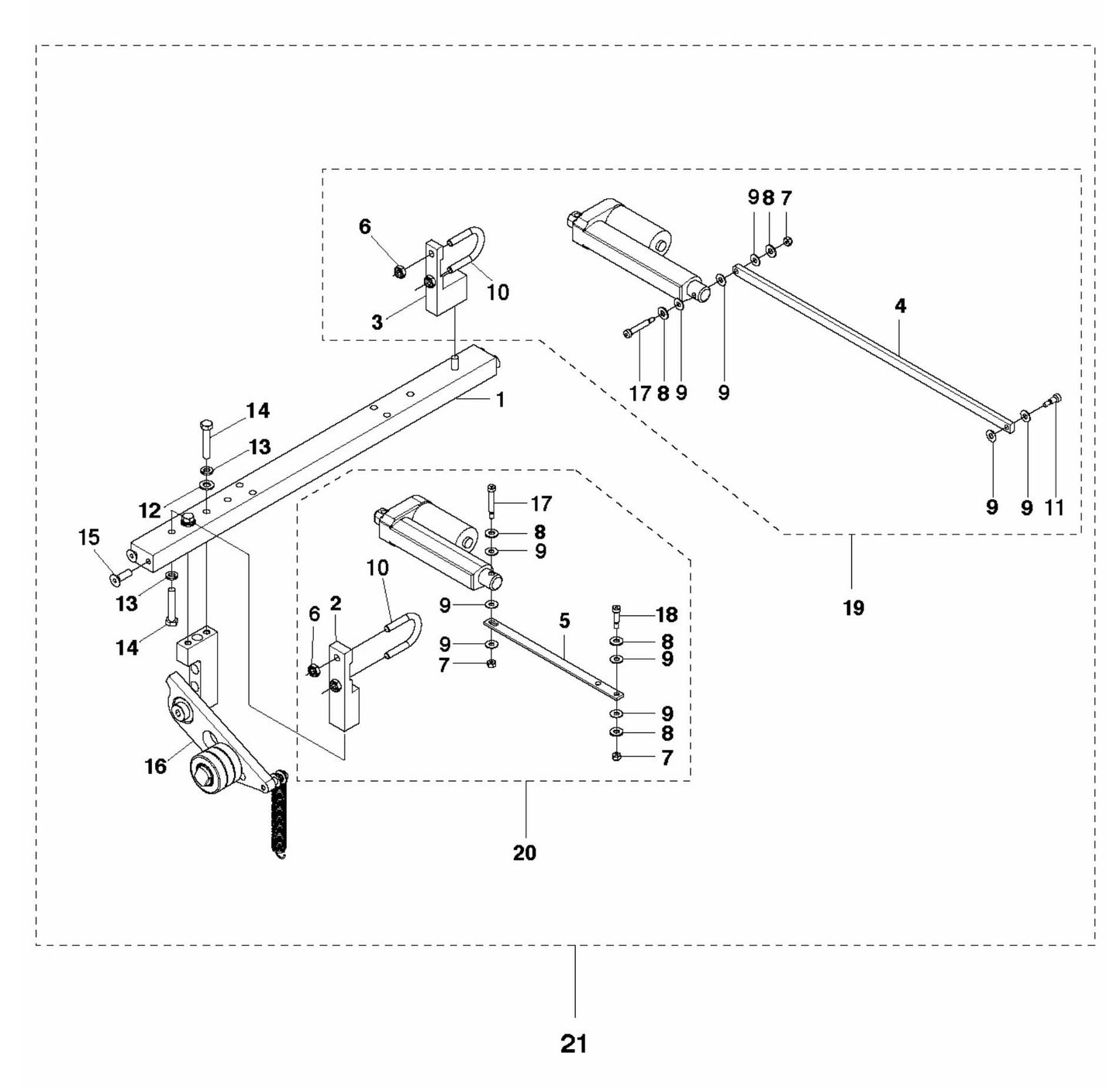

Soff Cut 4200 Pump Cross Bar Assembly Parts

Soff Cut 4200 Pump Cross Bar Assembly Parts

  • Soff Cut 4200 Pump Cross Bar Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
505792101 CROSS BAR, PUMP IDLER FOR EARLY ENTRY SAW BY HUSQVARNA
$153.59
3
505792401 ACTUATOR BRACKET FOR EARLY ENTRY SAW BY HUSQVARNA
$63.53
8
505632001 Washer for Husqvarna Soff Cut 2000 Early Entry Saw
$5.90
9
505634401 WASHER for Husqvarna Soff-Cut 150 Saw
$7.90
10
575421301 CLAMP for Husqvarna Soff Cut 2500 Walk Behind Saw
$2.95
12
539990188 WASHER for Husqvarna Soff Cut 2500 Walk Behind Saw
$4.99
14
505728501 HEX BOLT 5/16-18 X 1 3/4 GRADE for Husqvarna Soff Cut 2500 Walk Behind Saw
$4.84
15
505730101 FHS 5/16-18 X 1 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$9.66
16
510271802 PUMP IDLER ASSY, X4200-SERV FOR EARLY ENTRY SAW BY HUSQVARNA
$382.44
17
505811701 SHSB 1/4 X 1 1/4 for Husqvarna Soff Cut 2500 Walk Behind Saw
$6.96
18
505725701 SHSB 1/4 X 5/8 BLK STL FOR EARLY ENTRY SAW BY HUSQVARNA
$5.14
19
505848001 KIT, GUIDE ACTUATOR, GX4200 FOR EARLY ENTRY SAW BY HUSQVARNA
$878.20
20
505847901 KIT, THROTTLE ACTUATOR, GX4200 FOR EARLY ENTRY SAW BY HUSQVARNA
$832.68
21
510272802 PUMP CROSS BAR ASY, X4200-SERV FOR EARLY ENTRY SAW BY HUSQVARNA
$1,359.79
2
505611001 ACTUATOR for Husqvarna Soff Cut 2500 Walk Behind Saw
$56.25
4
505611101 ACTUATOR for Husqvarna Soff Cut 2500 Walk Behind Saw
$33.39
5
505715801 G2/X2500 THRTLE ARM W/SLOT for Husqvarna Soff Cut 2500 Walk Behind Saw
$40.05
6
505631701 NYLOC NUT 5/16-18 .265"HT. for Husqvarna Soff Cut 2500 Walk Behind Saw
$5.80
7
505630401 NYLOC NUT #10-24 CAD.PL. for Husqvarna Soff Cut 2500 Walk Behind Saw
$4.99
11
505686401 SHSB 1/4 X 3/8 BLK STL for Husqvarna Soff Cut 2500 Walk Behind Saw
$12.26
13
505633001 LK WASH 5/16 SPLIT SS for Husqvarna Soff Cut 2500 Walk Behind Saw
$4.99
