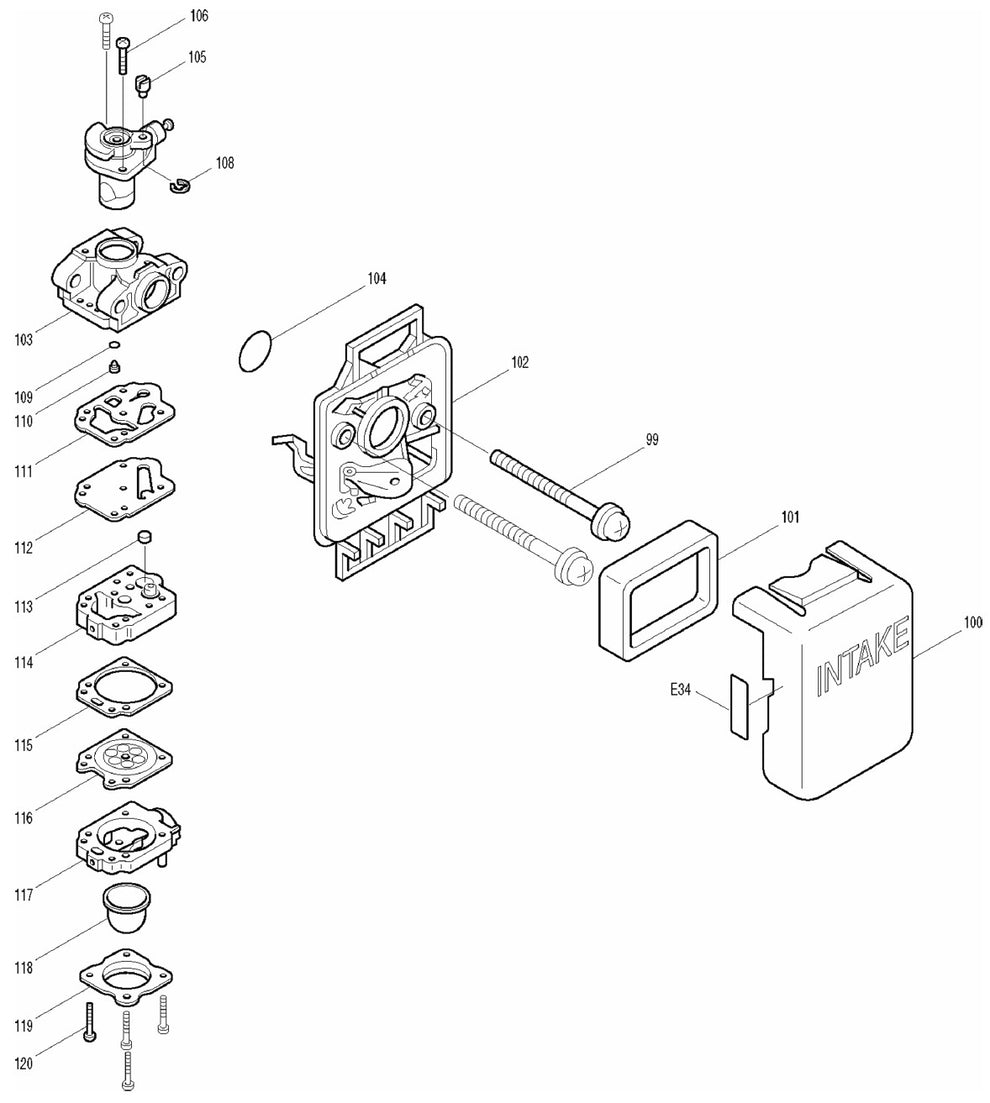

RBC201 Grass Trimmer Assembly-3 Parts by Makita

RBC201 Grass Trimmer Assembly-3 Parts by Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
99
0043105600 P.H. SCREW M5X60, RBC230 BY MAKITA
$5.99
99
0043305650 SCREW, EH760 BY MAKITA
$5.99
100
4529711 AIR CLEANER CASE, RBC201 BY MAKITA
$15.21
100
5193018020 CASE,AIR CLEANER, RBC201 BY MAKITA
$14.89
100
5203004030 AIR CLEANER COVER, EH760 BY MAKITA
$14.45
101
4431683 AIR CLEANER PLATE ELEMENT, RBC201 BY MAKITA
$8.94
101
5193017030 ELEMENT,AIR CLEANER, RBC201 BY MAKITA
$9.10
101
5203004010 AIR FILTER, EH760 BY MAKITA
$9.98
102
5193018010 PLATE,AIR CLEANER ASS'Y, RBC201 BY MAKITA
$25.07
102
5253004010 AIR CLEANER HOUSING, EH561 BY MAKITA
$21.72
103
1686817 CARBURETOR, RBC201 BY MAKITA
$140.30
103
5196036000 CARBURETOR, RBC201 BY MAKITA
$126.40
103
5196005000 CARBURETOR, RBC201 BY MAKITA
$159.86
104
5193017040 ORING, RBC201 BY MAKITA
$7.76
104
5236061000 O RING, RBC201 BY MAKITA
$5.99
105
5236018040 SWIVEL, BBX7600 BY MAKITA
$10.01
106
5206008030 P.H. SCREW, BHX2500 BY MAKITA
$5.99
108
5316005120 RING, BBX7600 BY MAKITA
$7.76
109
5246001010 O RING, RBC230 BY MAKITA
$7.76
110
5196002020 JET, RBC201 BY MAKITA
$17.25
111
5246001030 PUMP GASKET, RBC230 BY MAKITA
$9.10
112
5246001040 PUMP DIAPHRAGM, BBX7600 BY MAKITA
$10.93
113
5016004010 INLET SCREEN, RBC230 BY MAKITA
$7.76
114
5236046130 PUMP BODY ASSEMBLY, RBC230 BY MAKITA
$82.48
115
5236046040 METERING DIAPHRAGM GASKET,RBC260 BY MAKITA
$9.10
116
5316005250 METERING DIAPHRAGM ASS'Y,RBC260 BY MAKITA
$28.18
117
5236046060 AIR PURGE BODY ASS'Y, RST200 BY MAKITA
$24.50
118
5246001150 PRIMER PUMP, BBX7600 BY MAKITA
$10.56
119
5236046050 PRIMER PUMP COVER, EM4251 BY MAKITA
$10.56
120
5236046010 PUMP COVER SCREW, BBX7600 BY MAKITA
$5.99
99
Call for Price call for price call for price
102
Call for Price call for price call for price
104
Call for Price call for price call for price
View full details

Frequently asked questions

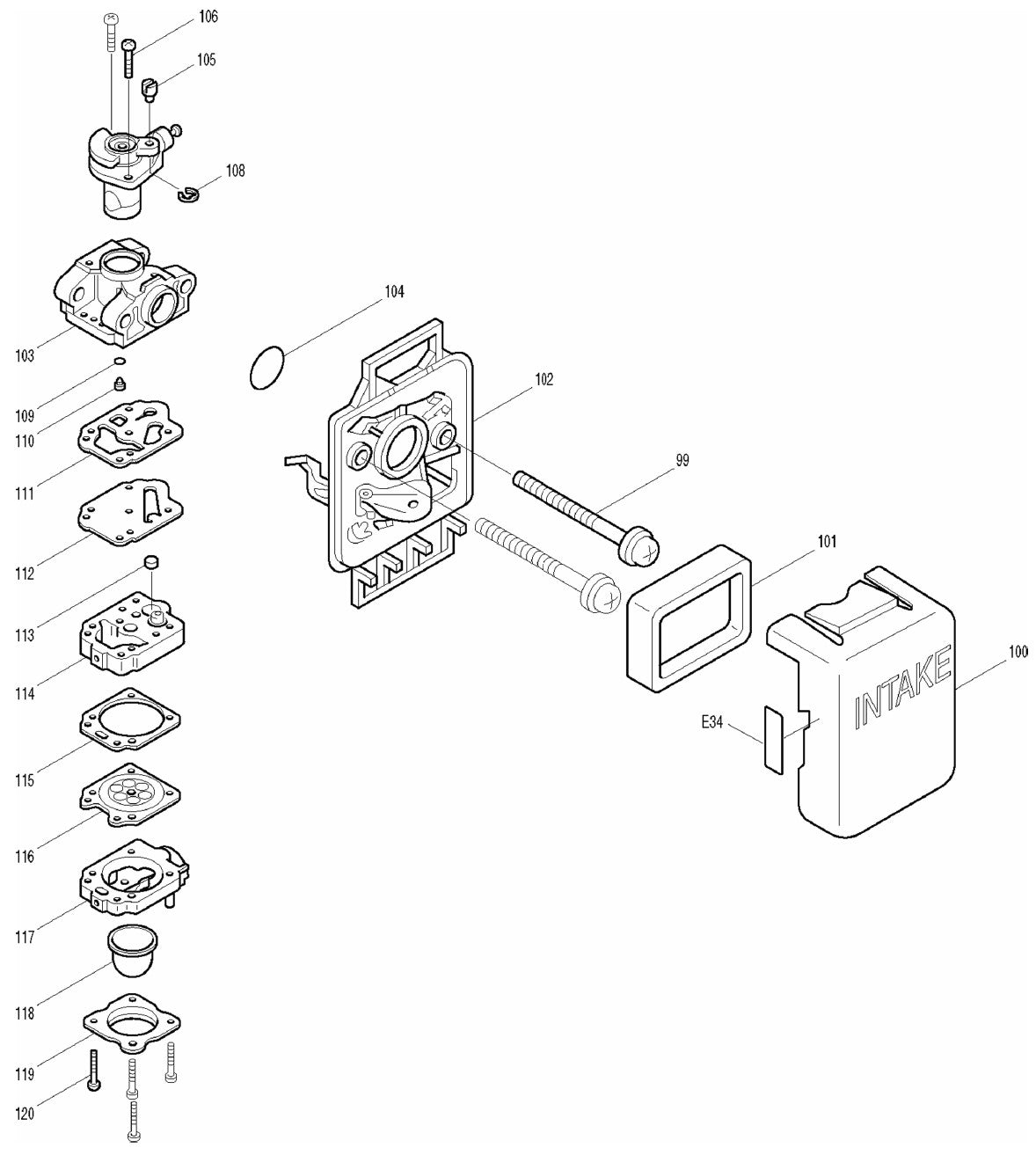

How do I use this diagram?
