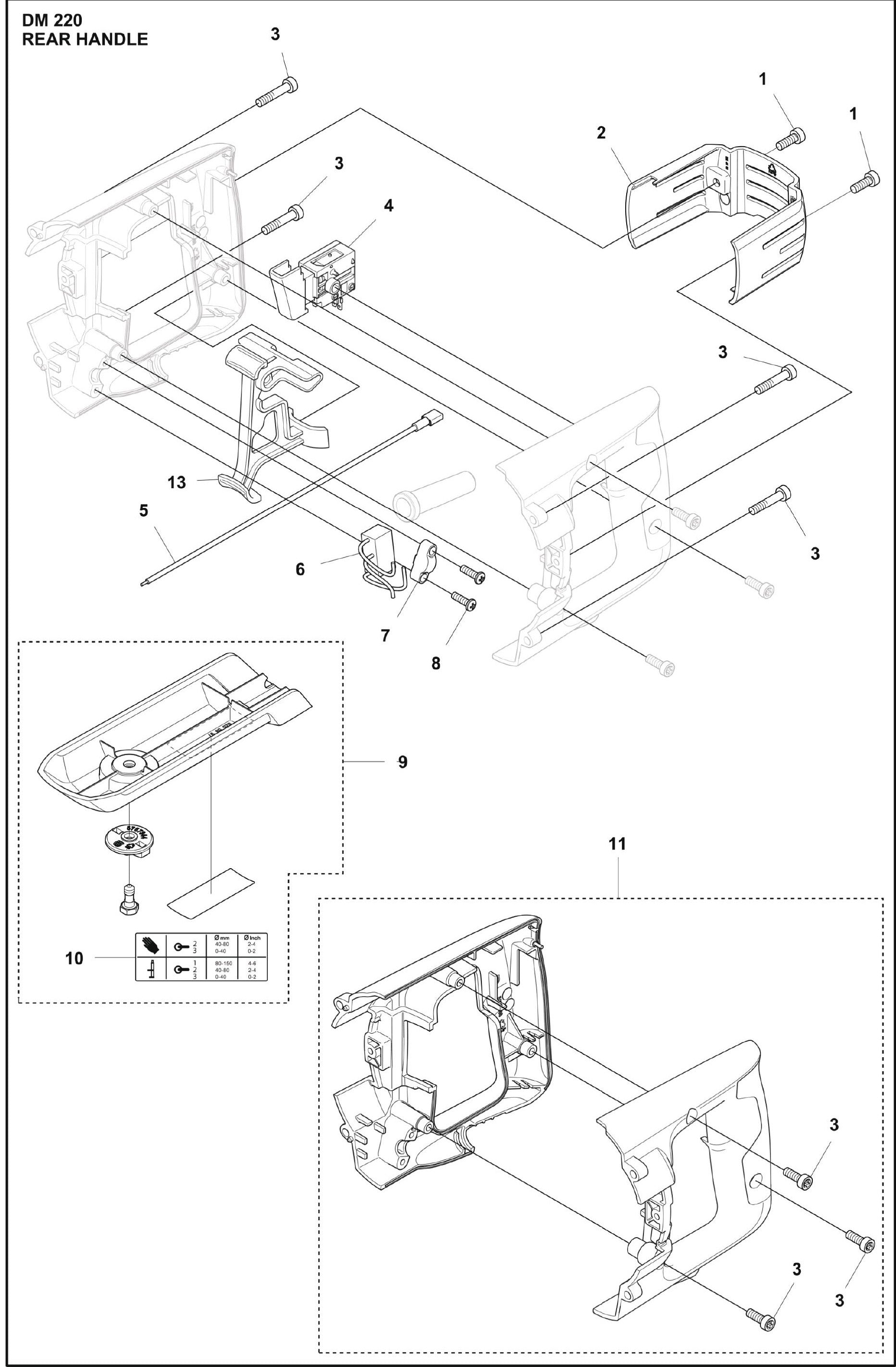

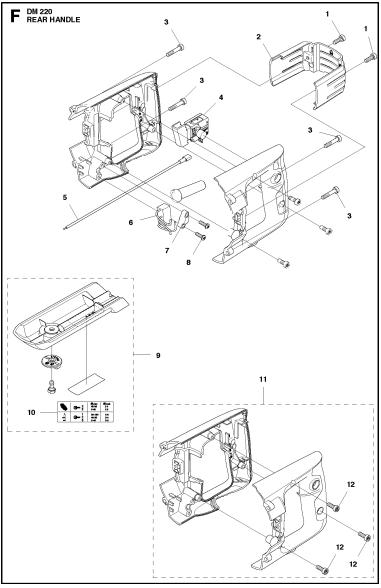

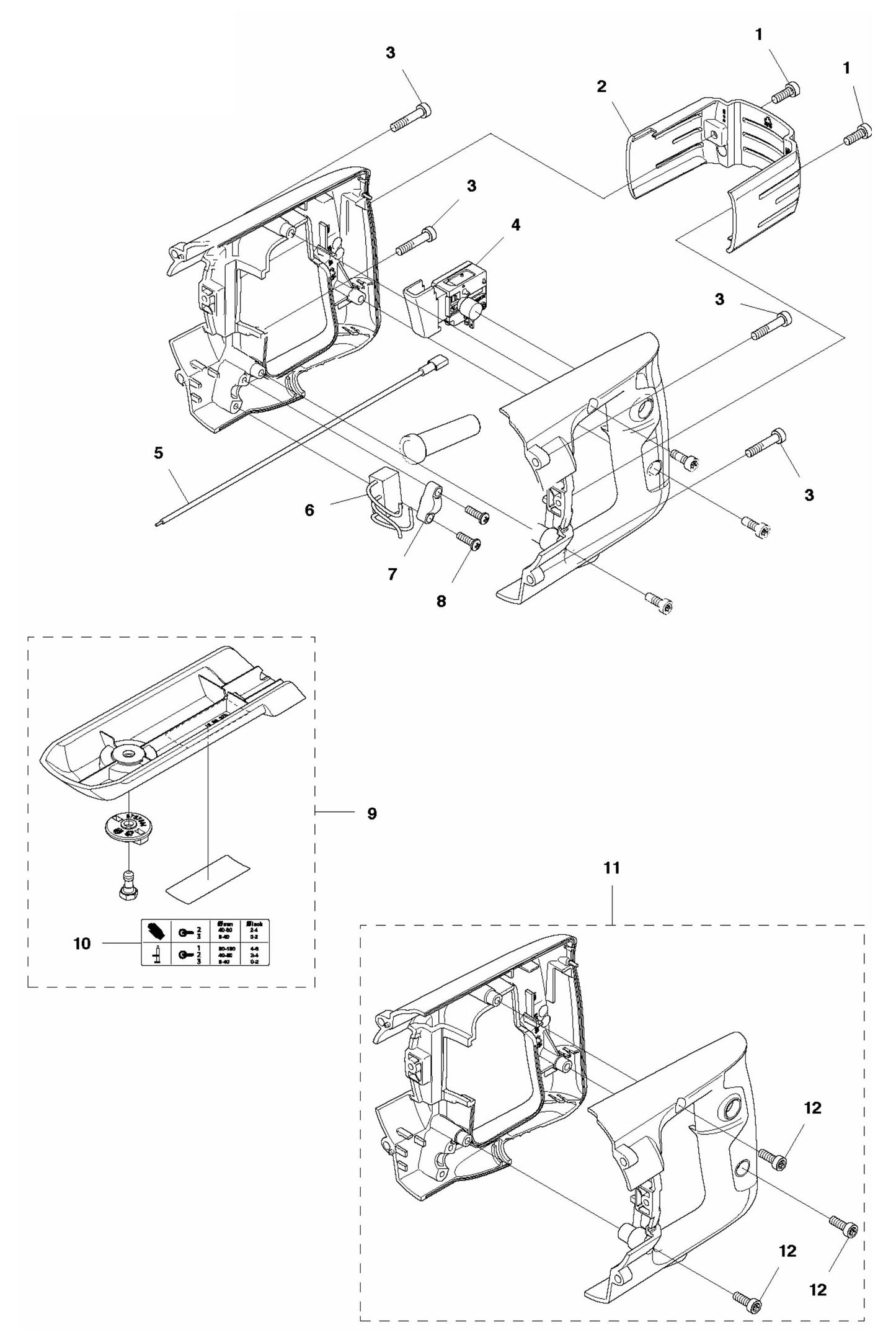

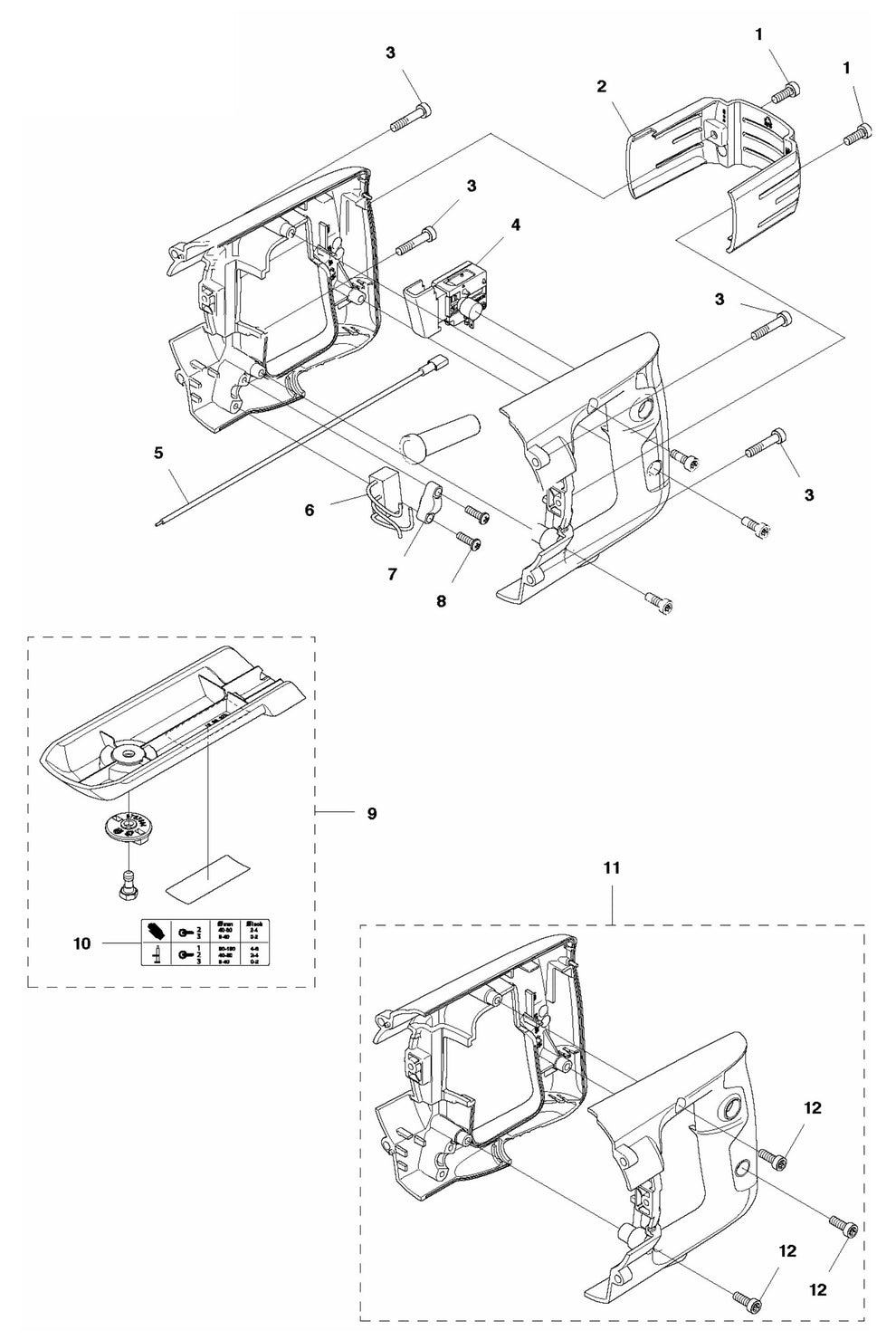

DM 220 Rear Handle Assembly Parts

DM 220 Rear Handle Assembly Parts

  • DM 220 Rear Handle Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
504909410 SCREW FOR POWER CUTTERS BY HUSQVARNA
$5.80
2
525444001 COVER LID FOR CORE DRILL BY HUSQVARNA
$21.95
3
504909425 SCREW FOR POWER CUTTERS BY HUSQVARNA
$5.14
12
504909425 SCREW FOR POWER CUTTERS BY HUSQVARNA
$5.14
6
504546301 CAPACITOR FOR CORE DRILL BY HUSQVARNA
$18.00
7
544123201 CABLE CLAMP FOR CORE DRILL BY HUSQVARNA
$5.80
9
525443001 COVER FOR CORE DRILL BY HUSQVARNA
$56.25
10
575347301 LABEL, GEARS FOR CORE DRILL BY HUSQVARNA
$5.80
4
525542101 TRIGGER FOR CORE DRILL BY HUSQVARNA
$76.89
5
576845401 CABLE FOR CORE DRILL BY HUSQVARNA
$7.64
8
525476301 C1 SCREW FOR CORE DRILL BY HUSQVARNA
$2.90
11
577244601 HANDLE KIT, REAR FOR CORE DRILL BY HUSQVARNA
$76.89
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
