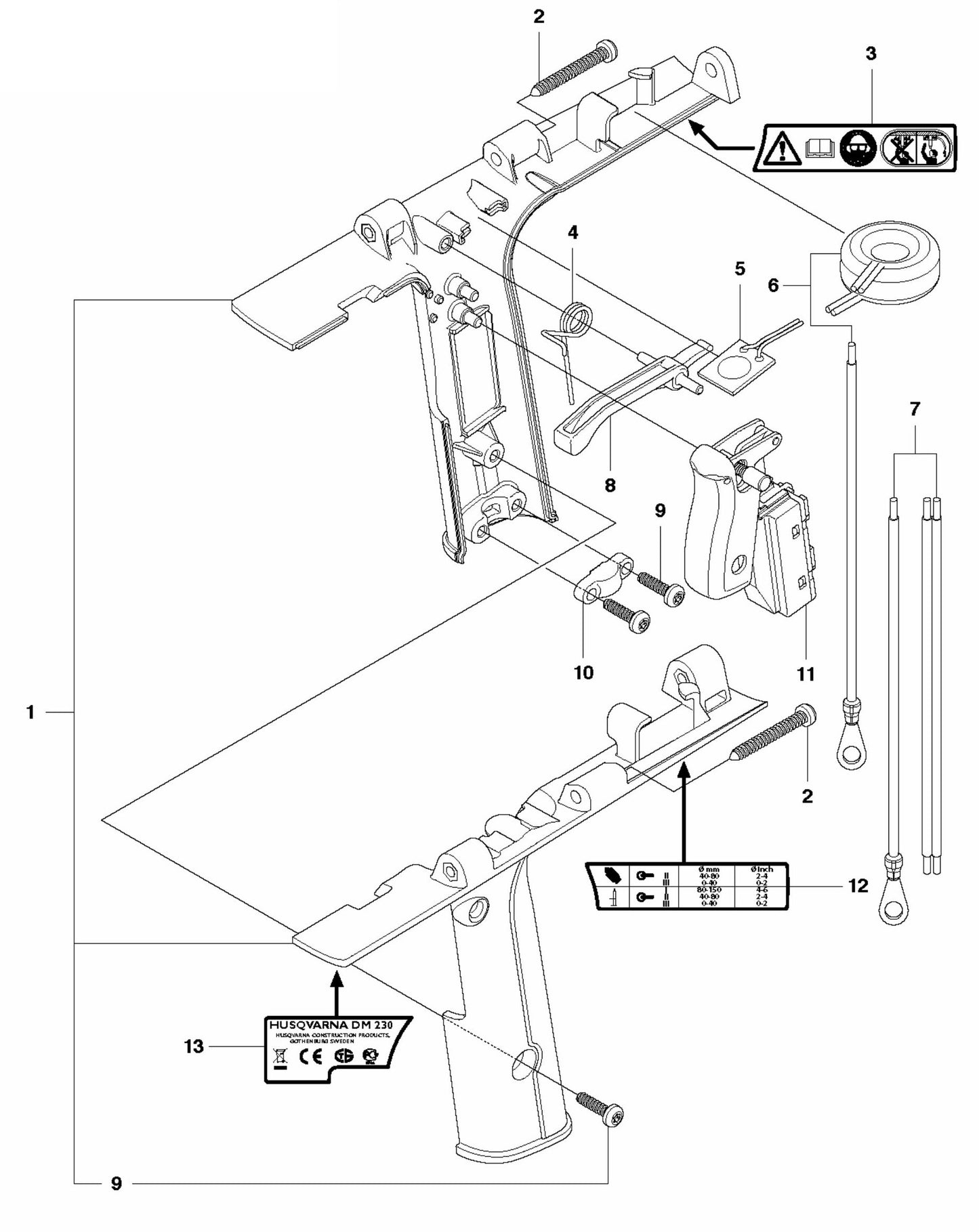

DM 230 Rear Handle Assembly Parts-1 by Husqvarna

DM 230 Rear Handle Assembly Parts-1 by Husqvarna

  • DM 230 Rear Handle Assembly Parts-1 by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
525476302 C1 SCREW FOR CORE DRILL BY HUSQVARNA
$2.90
3
502635302 Label for DM 230 Drill Motors by Husqvarna
Call for Price call for price call for price
4
544125601 SPRING FOR CORE DRILL BY HUSQVARNA
$5.80
5
544131401 BUTTON FOR CORE DRILL BY HUSQVARNA
$12.73
6
504571302 Cable Assy for DM 230 Drill Motors by Husqvarna
Call for Price call for price call for price
7
504571301 JOINTING CABLE FOR CORE DRILL BY HUSQVARNA
$94.91
8
544131201 LEVER FOR CORE DRILL BY HUSQVARNA
$2.90
9
525476301 C1 SCREW FOR CORE DRILL BY HUSQVARNA
$2.90
10
544123201 CABLE CLAMP FOR CORE DRILL BY HUSQVARNA
$5.80
11
544129501 TRIGGER FOR CORE DRILL BY HUSQVARNA
$79.80
12
502635001 LABEL FOR CORE DRILL BY HUSQVARNA
$7.26
13
502634903 Label for DM 230 Drill Motors by Husqvarna
Call for Price call for price call for price
13
502634904 Label for DM 230 Drill Motors by Husqvarna
Call for Price call for price call for price
13
502634905 Label for DM 230 Drill Motors by Husqvarna
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
