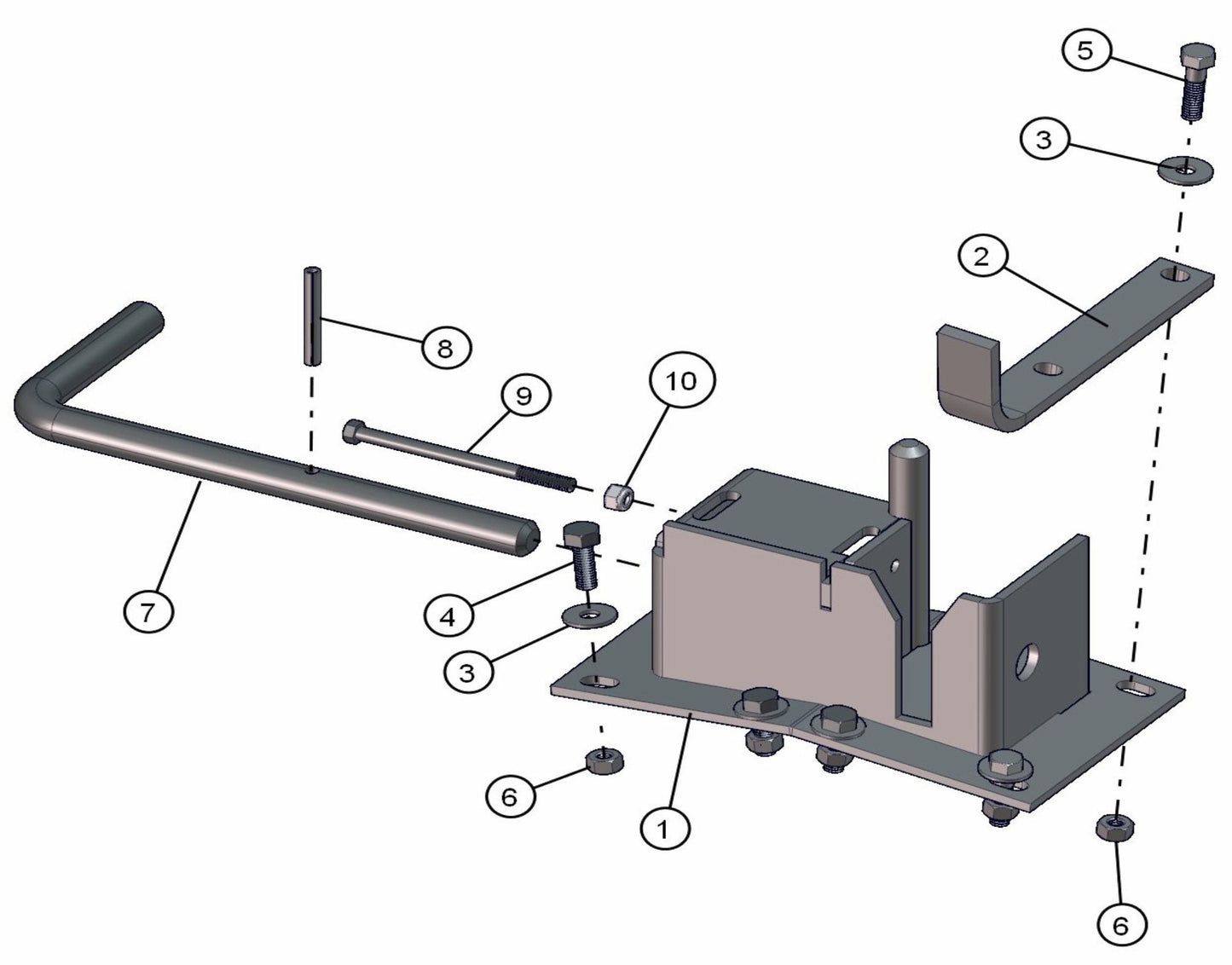

Rear Tower Support Assembly Parts for ML20B Series Maxi-Light (0001MXL08-0001MXL10) by Allmand

Rear Tower Support Assembly Parts for ML20B Series Maxi-Light (0001MXL08-0001MXL10) by Allmand

  • Rear Tower Support Assembly Parts for ML20B Series Maxi-Light (0001MXL08-0001MXL10) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
680110P Rear Tower Support for Maxi-Lite Hydraulic Tower Light Towers by Allmand
$378.00
3
047010 5/16 Flat Washer for Maxi-Lite 15330 & 20625 Light Towers by Allmand
$2.99
4
046050 Bolt Cs 5/16-18 X 1 Hex Gr5 Pl for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
5
046055 5/16-18 X 1 1/4 Hhcs for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
6
044031 5/16-18 Keps Nut for Maxi-Lite 15330 & 20355 Light Towers by Allmand
$2.99
7
330450 Locking Pin for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
$41.63
8
045156 Roll Pin, 1/4 X 2” Plated for Maxi-Lite 15330 & 20906 Light Towers by Allmand
$4.88
10
044023 1/4-20 Nylock Hex Nut for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
2
Call for Price call for price call for price
9
Call for Price call for price call for price
