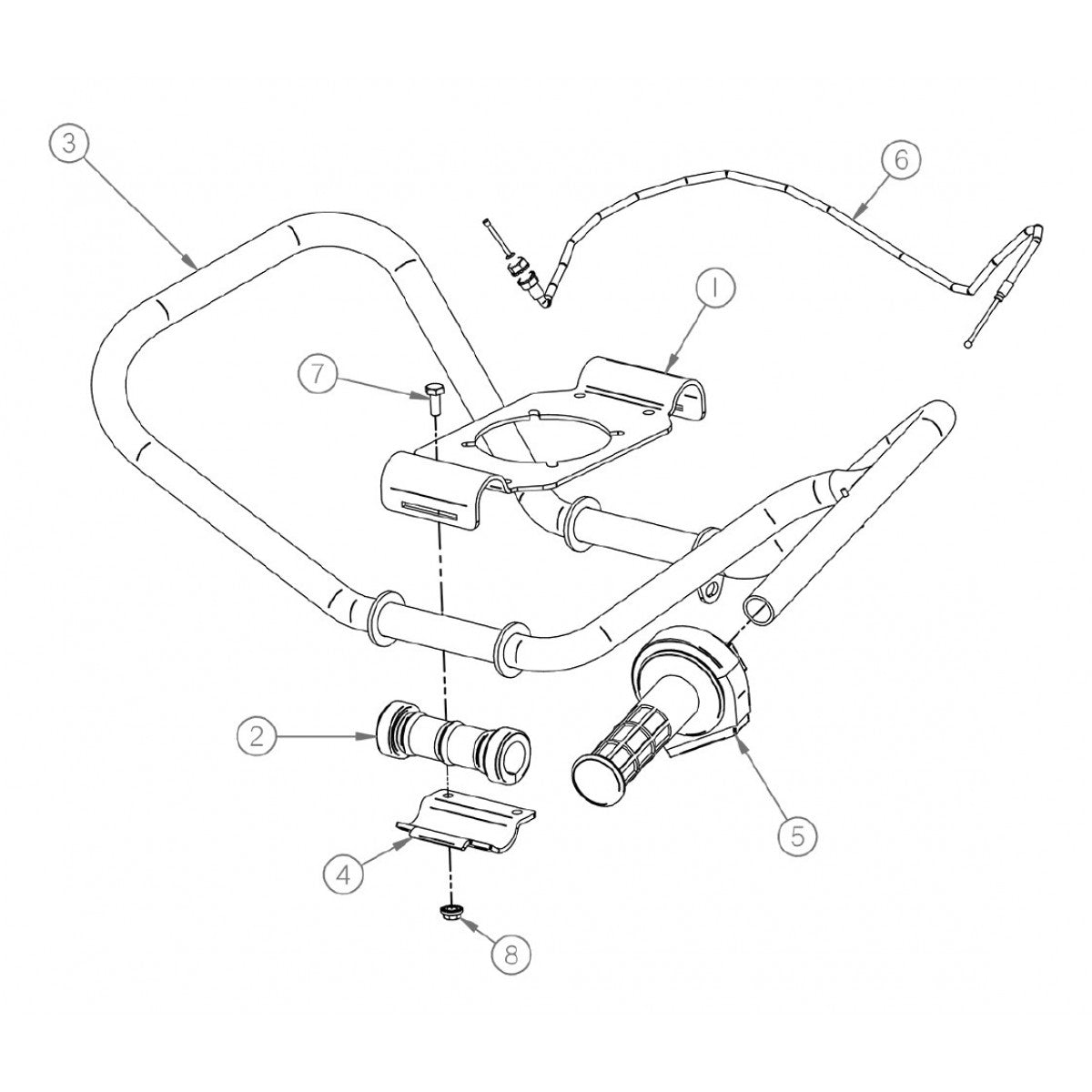

Replacement Parts Diagram Operator Handle Assembly 242H Parts By General Equipment

Replacement Parts Diagram Operator Handle Assembly 242H Parts By General Equipment

  • Replacement Parts Diagram Operator Handle Assembly 242H Parts By General Equipment
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
242-0050 Handle Bracket by General Equipment Co. 2420050
$94.39
2
242-0070 Bushing, Isolator, Handle by General Equipment Co. 2420070
$10.36
3
242-0090 Weldment, Handle, Operator by General Equipment Co. 2420090
$230.40
4
242-0060 Clamp, Handle by General Equipment Co. 2420060
$10.78
5
310-0030 Throttle Control Assembly by General Equipment Co. 3100030
$111.29
6
240H-0080PAK2 Pak2, Cable Throttle by General Equipment Co. 240H0080PAK2
$55.45
7
15040500 Hhcs, 1/4-20 X 5/8, Zy by General Equipment Co. 15040500
$5.99
8
86040000 Nut, Hex, Flange, 1/4-20, Zy by General Equipment Co. 86040000
$3.99
