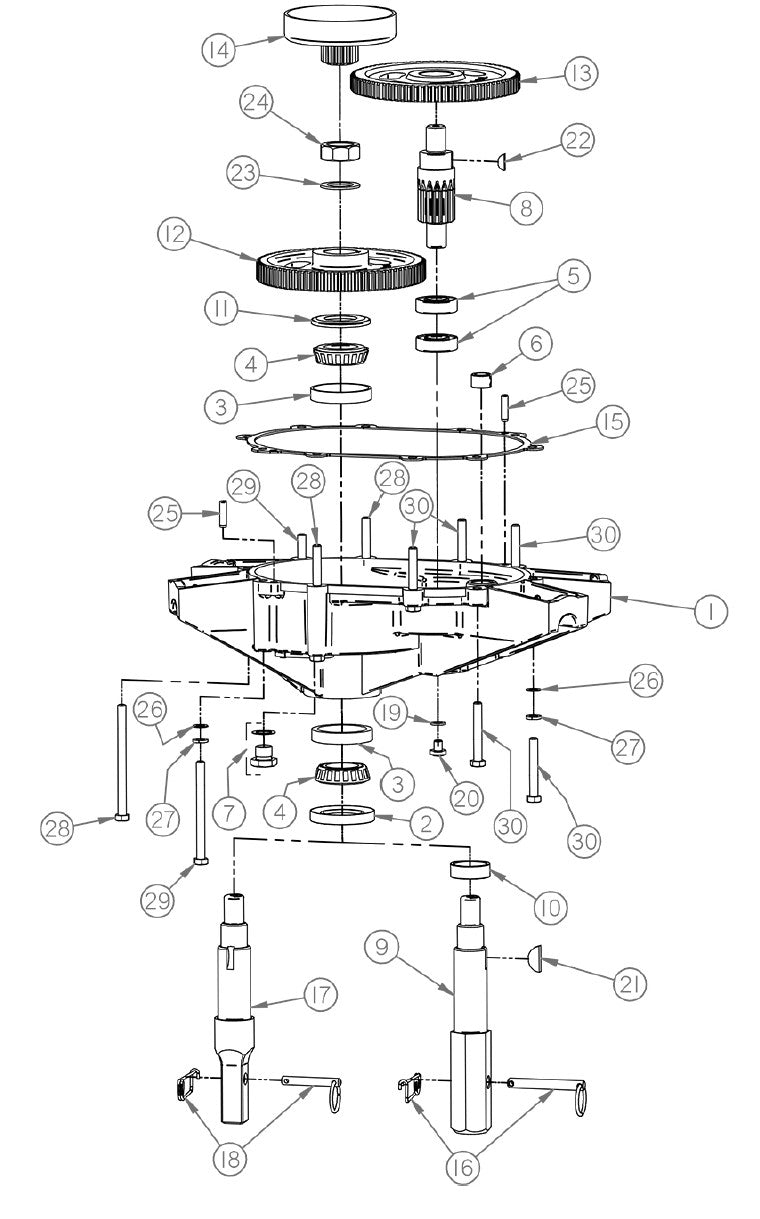

Replacement Parts Diagram Transmission Case Assembly Parts By General Equipment

Replacement Parts Diagram Transmission Case Assembly Parts By General Equipment

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
332-0120A Transmission Case Assembly by General Equipment Co. 3320120A
$914.40
2
471820 Seal, Oil by General Equipment Co. 471820
$32.54
3
08231 Bearing Cup by General Equipment Co. 08231
$23.46
4
08125G Bearing Cone by General Equipment Co. 08125G
$41.27
5
6203-2RS-12 Ball Bearing by General Equipment Co. 62032RS12
$13.52
6
235-0140 Bushing, Spring-Type by General Equipment Co. 2350140
$11.42
7
50100800A Plug, Drain, Oil, W/Gasket, Aluminum by General Equipment Co. 50100800A
$13.45
8
332-0310 Gear, Pinion, Secondary by General Equipment Co. 3320310
$302.40
9
332-0330A Drive Shaft Assembly 1.38Hex by General Equipment Co. 3320330A
$424.80
10
332-0330-010 Bushing, Shaft, Drive by General Equipment Co. 3320330010
$22.18
11
0812508231B-AV Ring, Nilos by General Equipment Co. 0812508231BAV
$38.56
12
332-0350 Gear, Secondary by General Equipment Co. 3320350
$424.80
13
7034 Gear, Primary by General Equipment Co. 7034
$246.46
14
3516 Clutch Drum With Pinion by General Equipment Co. 3516
$111.49
15
332-0100PAK2 Pak2, Gasket, Transmission by General Equipment Co. 3320100PAK2
$43.39
16
2121PAK3 Pak3, Pin, Auger, .375D by General Equipment Co. 2121PAK3
$36.88
17
348-0330 Shaft, Drive, .88Sq by General Equipment Co. 3480330
$443.23
18
2021PAK3 Pak3, Pin, Auger, .312D by General Equipment Co. 2021PAK3
$40.91
19
330H-0200 Washer, Nylon by General Equipment Co. 330H0200
$3.99
20
37050300 Phms, 5/16-18 X 3/8, Zy by General Equipment Co. 37050300
$3.99
21
15 Key, Woodruff, 1/4 X 1 by General Equipment Co. 15
$5.99
22
6 Key, Woodruff, 5/32 X 5/8 by General Equipment Co. 6
$5.99
23
85160000 Bushing, Machine, 1.0Nr by General Equipment Co. 85160000
$3.99
24
40160001 Nut, Jam, Hex, 1-14, Z by General Equipment Co. 40160001
$7.76
25
51040800 Pin, Dowel, 1/4 X 1 by General Equipment Co. 51040800
$5.99
26
AN-960-516L Washer, Flat, 5/16, Zy by General Equipment Co. AN960516L
$3.99
27
16050000 Washer, Lock, 5/16, Zy by General Equipment Co. 16050000
$3.99
28
15053400 Hhcs, 5/16-18 X 4-1/4, Zy by General Equipment Co. 15053400
$5.99
29
15053000 Hhcs, 5/16-18 X 3-3/4, Zy by General Equipment Co. 15053000
$5.99
30
15051800 Hhcs, 5/16-18 X 2-1/4, Zy by General Equipment Co. 15051800
$5.99
