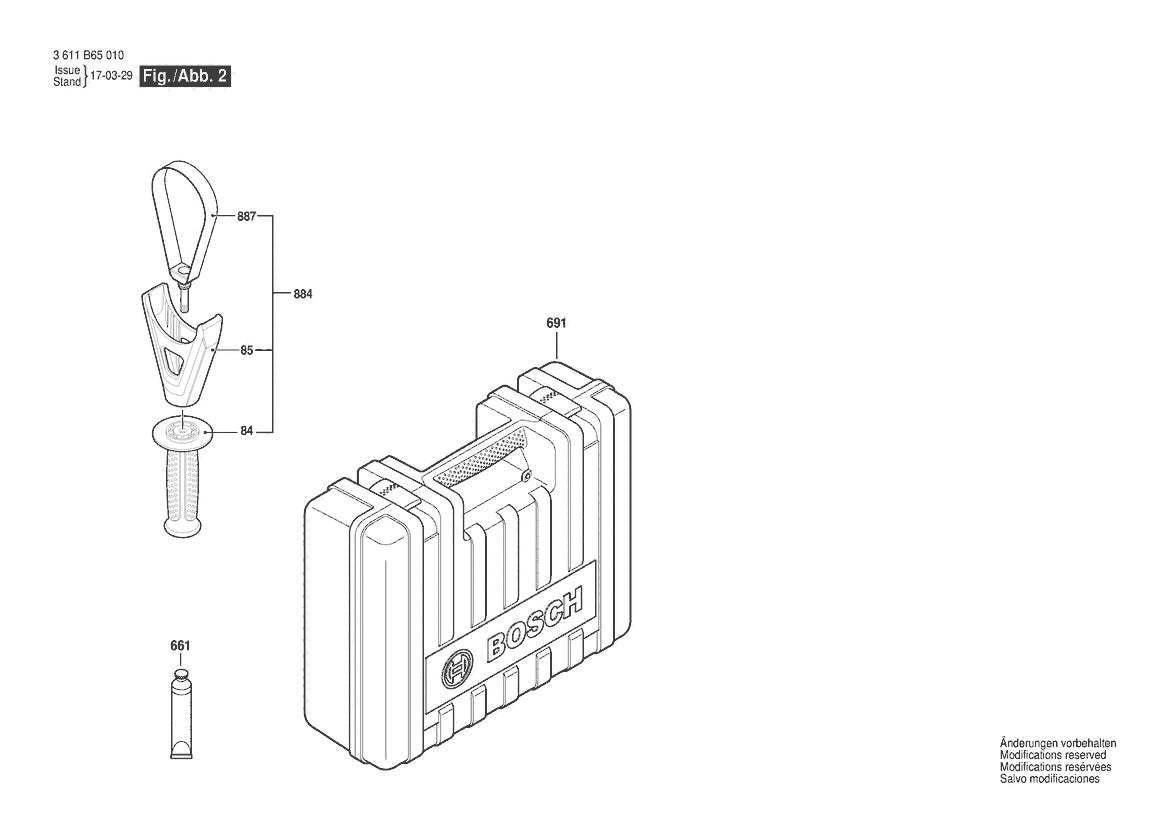

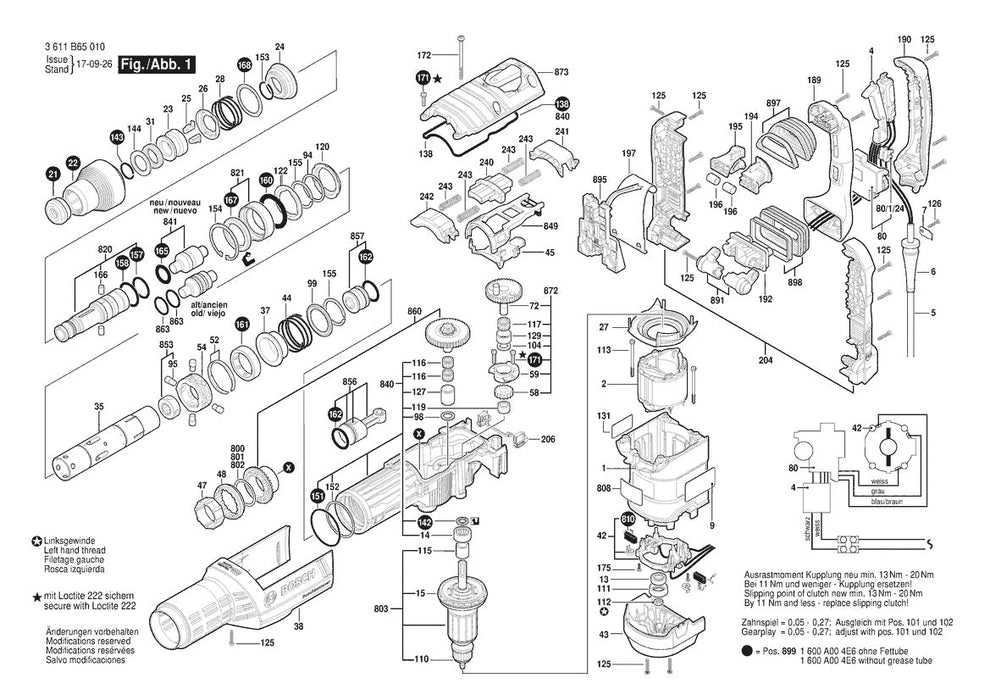

RH850VC Bosch 1-7 Bosch Rotary Hammer Parts Diagram

RH850VC Bosch 1-7 Bosch Rotary Hammer Parts Diagram

  • RH850VC Bosch 1-7 Bosch Rotary Hammer Parts Diagram
  • RH850VC Bosch 1-7 Bosch Rotary Hammer Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
1614220141 Field | Genuine OEM Bosch Part
$38.50
6
1610703053 Grommet | Genuine OEM Bosch Part
$4.89
7
1601302018 Fastening Clamp by Bosch
$4.89
13
1610900026 Deep-groove Ball Bearing by Bosch
$14.18
14
1610910089 Needle-roller Bearing by Bosch
$19.68
21
1610508038 Protective Cap by Bosch
$6.16
25
1612300027 Stopping Device by Bosch
$10.84
98
1610101015 Fitting Disc by Bosch
$3.91
104
1610190027 Stop Disc | Genuine OEM Bosch Part
$6.23
111
1610290046 Bushing | Genuine OEM Bosch Part
$3.91
112
1613300007 Hexagon Nut | Genuine OEM Bosch Part
$3.91
113
1613412001 Sheet Metal Screw by Bosch
$3.91
119
1610910081 Needle-roller Bearing by Bosch
$17.96
126
2603490023 Torx Oval-head Screw by Bosch
$4.89
153
2916540017 Retainer | Genuine OEM Bosch Part
$4.89
154
2916660027 Spring Retaining Ring by Bosch
$3.91
157
1610210103 O-ring | Genuine OEM Bosch Part
$3.91
175
2603490021 Screw | Genuine OEM Bosch Part
$3.91
85
1618040095 Support Clamp by Bosch
$5.38
661
1615430010 Grease Tube | Genuine OEM Bosch Part
$6.16
887
1617000807 Clamping Band by Bosch
$19.87
84
160202507H Auxiliary Handle by Bosch
$9.41
