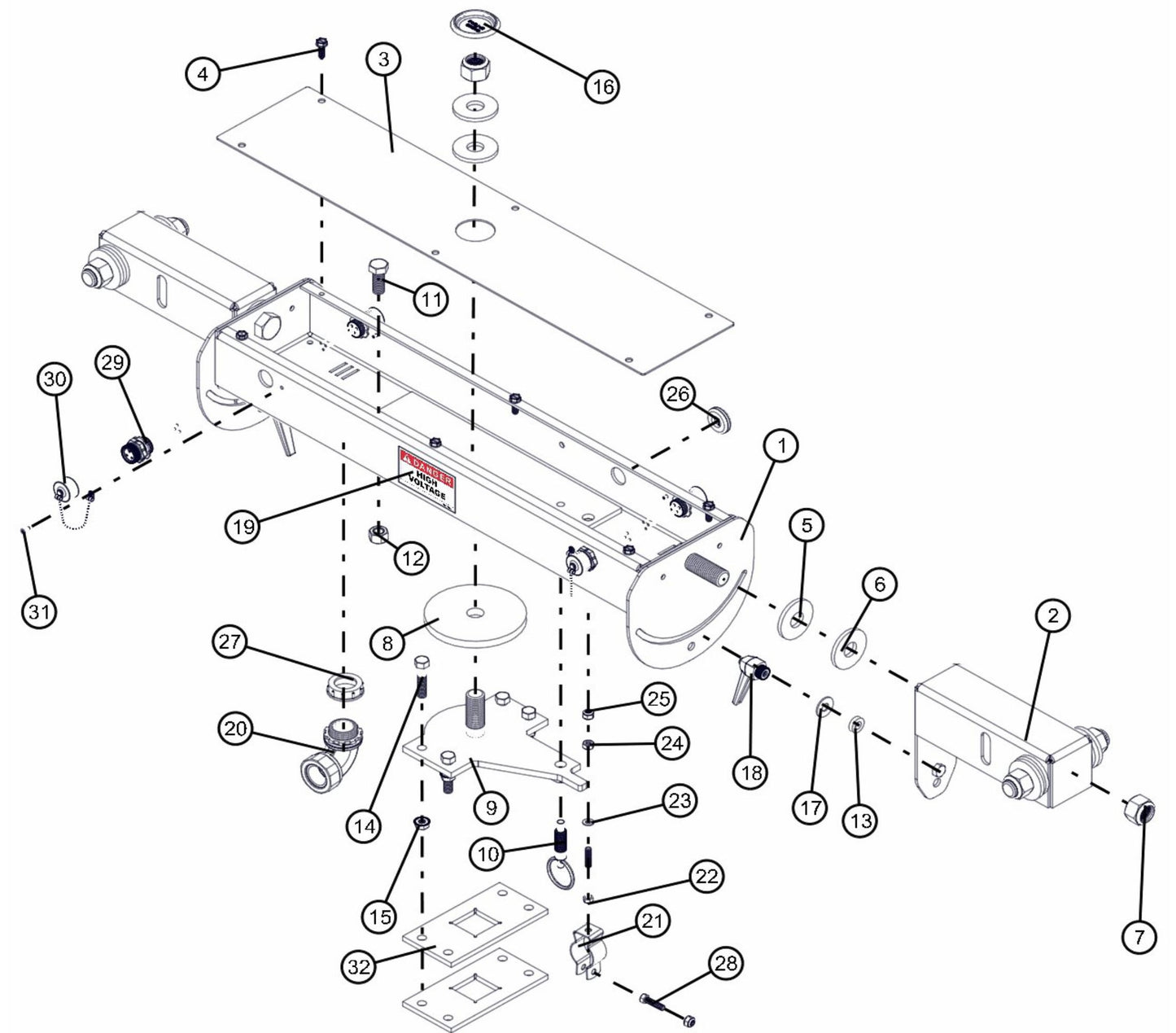

Rotational Light Bar-Nycoil Assembly Parts for Maxi-Lite FCS AS3000 (0001MXL10 TO 9999MXL13) by Allmand

Rotational Light Bar-Nycoil Assembly Parts for Maxi-Lite FCS AS3000 (0001MXL10 TO 9999MXL13) by Allmand

  • Rotational Light Bar-Nycoil Assembly Parts for Maxi-Lite FCS AS3000 (0001MXL10 TO 9999MXL13) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
101930P Light Bar for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$503.87
2
101931P Lampmount for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$148.44
3
101929P Cover for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$204.41
4
041070 1/4-20 X 3/4 Smshh Tp F for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
5
650550 .785 X 2" Hdpe Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
6
047035 3/4 Flat Washer Pltd for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
7
044058 3/4-10 Nylock Plated Hex Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
8
100147 Uhmw Bearing for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$44.93
9
100143P Rotational Mount for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$199.09
10
100148 Latch Assy for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$45.00
11
046180 1/2-13 X 1 1/4 Hhcs Gr 5 for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
12
044048 1/2-13 Nylock Hex Nut Pl for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
$2.99
13
047019 3/4 Od X .385 Id Nylon Bushing for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
14
046126 3/8 - 16 Nc X 1-3/4” Grade 8 Bolt for Maxi-Lite Laydown 6-8Kw Light Towers by Allmand
$2.99
15
044036 3/8 -16 Nc Keps Nut for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$2.99
16
680878 Caplug 1 3/4" for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
17
047015 3/8 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
18
102361 Adjustable Lever, for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$40.24
19
090002 High Voltage Decal for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
20
102979 Cord Grip 90° Elbow Liquid Tight for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$84.56
21
100474 1” Conduit Clamp for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$4.88
22
046037 1/4-20 X 2 3/4 Hex Head Cs Gr5 Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
23
047009 1/4 Flat Washer Sae Ss for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
24
044020 1/4-20 Hex Nut Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
25
044023 1/4-20 Nylock Hex Nut Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
26
100859 7/8 Id X 1 1/4 Od Grommet for Maxi-Lite Ii Ld-Series (10-000001 To 10-999999) Light Towers by Allmand
$2.99
27
101672 1” Insulating Bushing for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
28
046015 1/4-20 X 1 Hex Head Bolt for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
29
310414 Female Qd Connector for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$126.00
30
310413 Cap Quick Disconnect for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$85.91
31
045116 1/8 Pop Rivet for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
32
100104P Light Bar Bracket for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$114.23
