RP235 Rotor Assembly-Right Hand Parts by Allen Engineering

RP235 Rotor Assembly-Right Hand Parts by Allen Engineering

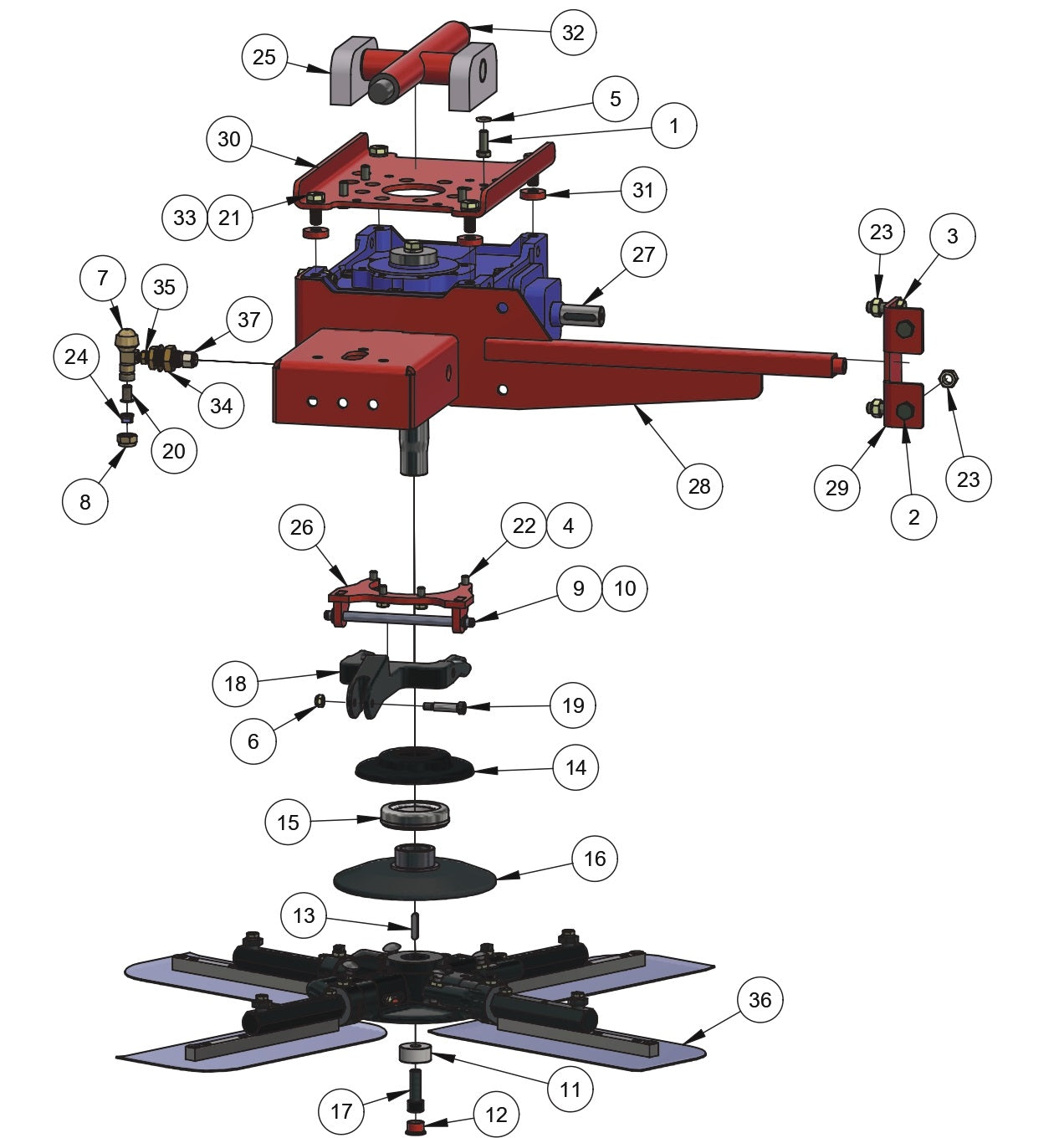

  • RP235 Polishing Trowels Rotor Assembly - Right Hand Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010036 Fstn, Hhcs 3/8-16 X 1 Grd8 by Allen Enginnering
$4.95
2
010067 Fstn, Hhcs 1/2-13 X 1 Gr8 by Allen Enginnering
$3.99
3
010069 Fstn Hhcs 1/2-13 X 1-1/2 Grd8 by Allen Enginnering
$4.95
4
010090 Fstn, Lw 5/16 Grd8 by Allen Enginnering
$4.95
5
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
6
012612 Fstn, Nut Hex Nylock 5/16-18 Gr by Allen Enginnering
$4.95
7
012704 Nozzle, Spray Power Work Bridge by Allen Enginnering
$210.65
8
012705 Spraying S Cp 1325 Brass Nozzle Nut by Allen Enginnering
$13.70
9
015677 Fstn, Ring, Ø7/16 E-Style Retaining by Allen Enginnering
$2.99
10
015678 Fstn, Pin Yoke Arm 7-3/8X7/16 by Allen Enginnering
$17.16
11
015690 Washer, Retaining For Trowels by Allen Enginnering
$29.40
12
015693 Plug, Plastic Cap Ec12 by Allen Enginnering
$2.99
13
015696 Key, .25" X 1.25"Lg Hard Rad. by Allen Enginnering
$9.00
14
015821 Cap, Pressure Plate by Allen Enginnering
$17.43
15
015822 Bearing, Thrust by Allen Enginnering
$213.18
16
015824 Plate, Pro Rider/Walker Pressure (P by Allen Enginnering
$255.47
17
020155 Fstn, Shcs 1/2-13 X 1-1/2, Left Hand Thread by Allen Enginnering
$35.40
18
026215 Yoke, Arm by Allen Enginnering
$207.29
19
026504 Fstn, Shld Blt 3/8 X 1-1/4 by Allen Enginnering
$7.20
22
032863 FSTN, HHCS M8 X 1.25 X 20MM GRD8 by Allen Engineering
$3.99
25
048561 Bearing Assembly F/ Rotor Mount X1 by Allen Enginnering
$145.67
34
071016 FTG, BULK HEAD BRASS 1/4" NPT by Allen Engineering
$24.00
35
071017 FTG, REDUCER HEX NIPPLE 1/4 TO 1/8 NPT by Allen Engineering
$12.96
38
071374 SEAL, SHAFT FOR HELICAL GEARBOX OUTPUT by Allen Engineering
$31.20
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
