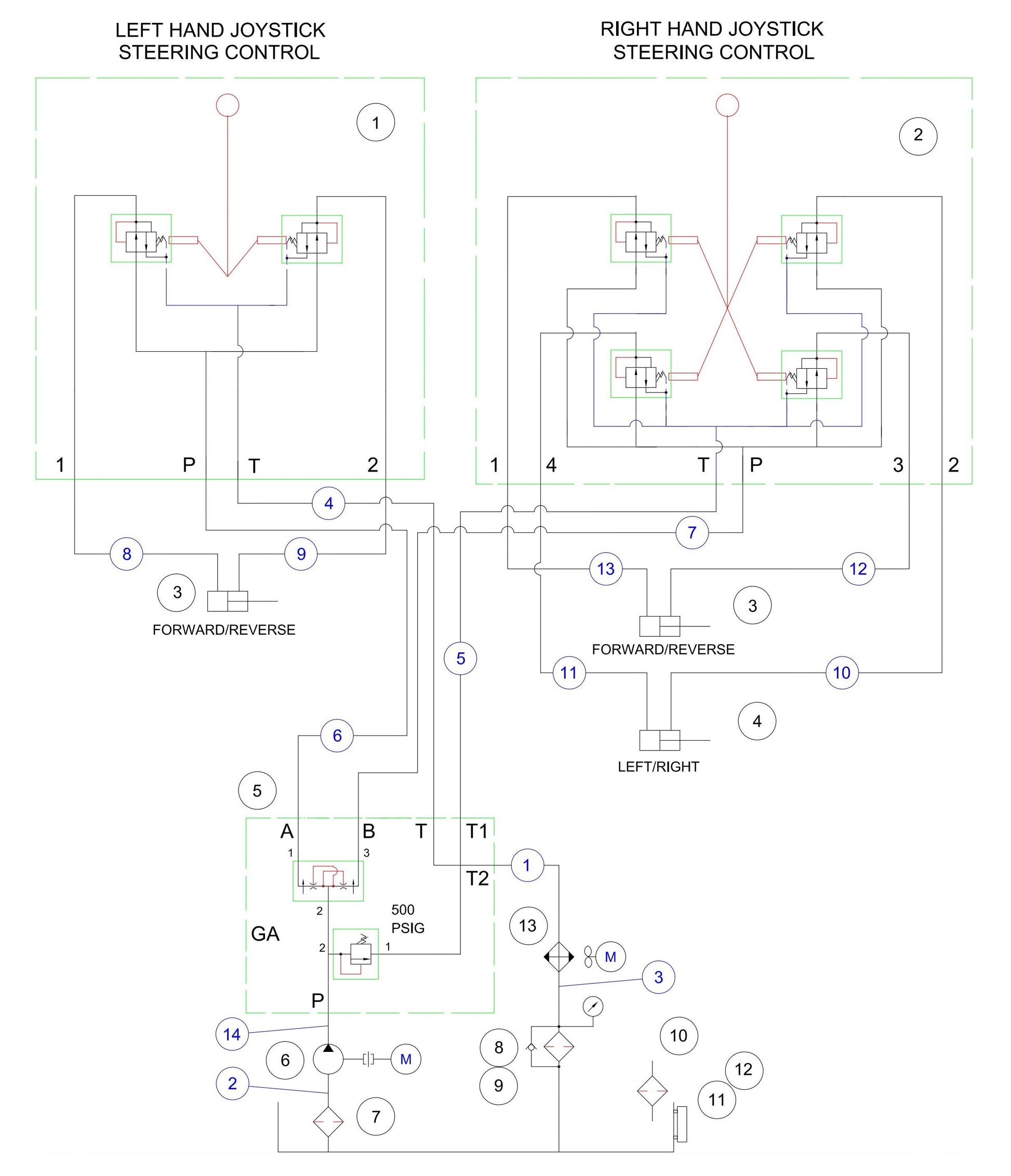

RP245 Hydraulic Schematic Assembly Parts

RP245 Hydraulic Schematic Assembly Parts

  • RP245 Hydraulic Schematic Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
064818 Control Valve, Lh Single Axis_2 by Allen Enginnering
$1,760.31
2
064817 Control Valve, Rh Dual Axis_2 by Allen Enginnering
$1,716.61
4
046735 Manifold, 1200C Hyd Steering by Allen Enginnering
$1,035.34
5
046732 Suction Strainer Tmf-02-60 by Allen Enginnering
$189.36
6
046729 Filter Head Slf-030 by Allen Enginnering
$114.29
7
046730 Filter Element Sf 6310-18 by Allen Enginnering
$90.00
8
FI0350 Filler Breather F/ Reservoir B-16 by Allen Enginnering
$77.60
9
052930 Cooler, Air/Oil 2005K-12S-Bp by Allen Enginnering
$1,575.42
10
066794 GEAR PUMP F/ MP245 by Allen Engineering
$1,737.60
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
