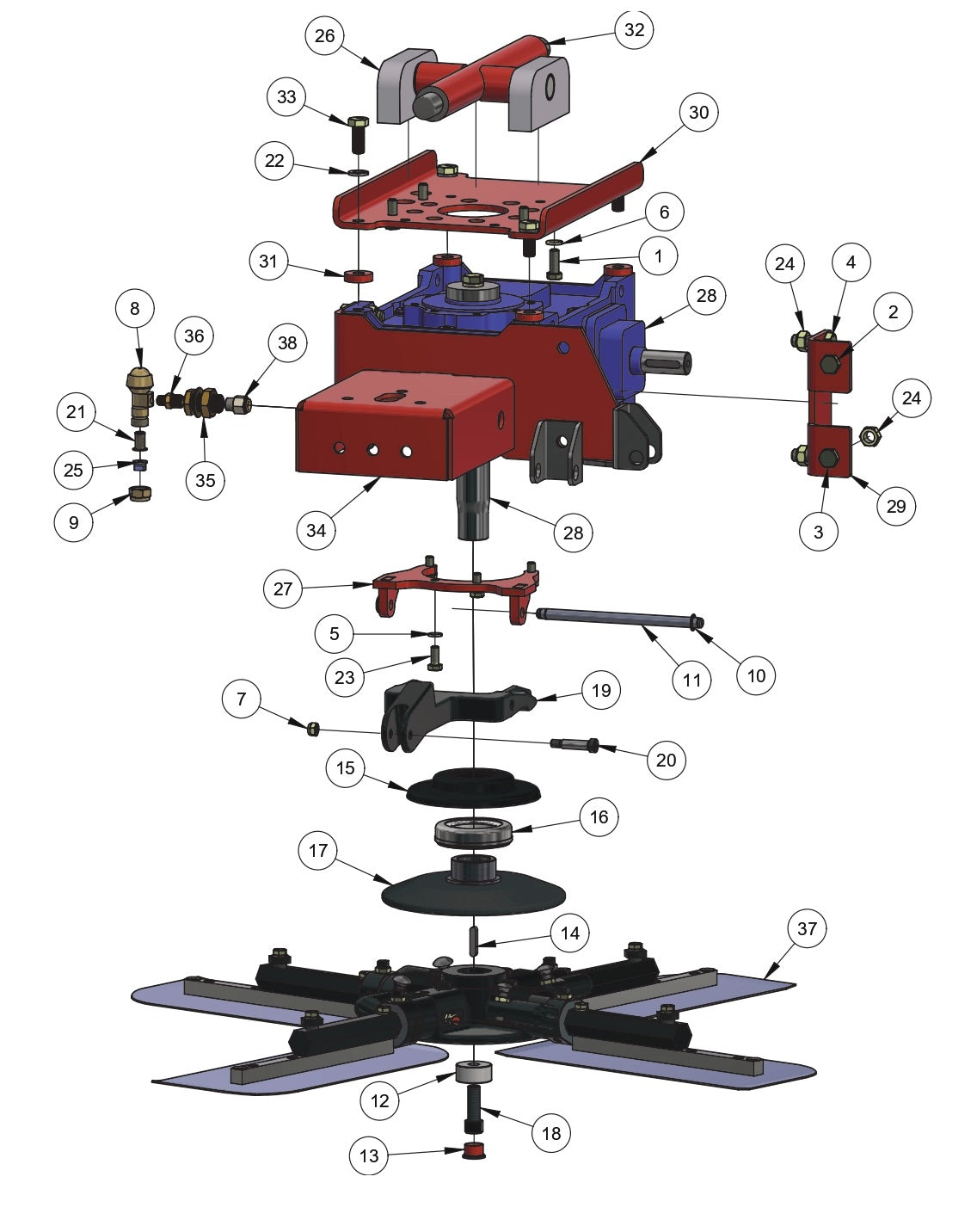

RP245 Rotor Assembly-Right Hand Parts by Allen Engineering

RP245 Rotor Assembly-Right Hand Parts by Allen Engineering

  • RP245 Polishing Trowels Rotor Assembly - Right hand Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010036 Fstn, Hhcs 3/8-16 X 1 Grd8 by Allen Enginnering
$4.95
2
010067 Fstn, Hhcs 1/2-13 X 1 Gr8 by Allen Enginnering
$3.99
3
010068 Fstn Hhcs 1/2-13 X 1-1/4 Gr8 by Allen Enginnering
$4.95
4
010069 Fstn Hhcs 1/2-13 X 1-1/2 Grd8 by Allen Enginnering
$4.95
5
010090 Fstn, Lw 5/16 Grd8 by Allen Enginnering
$4.95
6
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
7
012612 Fstn, Nut Hex Nylock 5/16-18 Gr by Allen Enginnering
$4.95
8
012704 Nozzle, Spray Power Work Bridge by Allen Enginnering
$210.65
9
012705 Spraying S Cp 1325 Brass Nozzle Nut by Allen Enginnering
$13.70
10
015677 Fstn, Ring, Ø7/16 E-Style Retaining by Allen Enginnering
$2.99
11
015678 Fstn, Pin Yoke Arm 7-3/8X7/16 by Allen Enginnering
$17.16
12
015690 Washer, Retaining For Trowels by Allen Enginnering
$29.40
13
015693 Plug, Plastic Cap Ec12 by Allen Enginnering
$2.99
14
015696 Key, .25" X 1.25"Lg Hard Rad. by Allen Enginnering
$9.00
15
015821 Cap, Pressure Plate by Allen Enginnering
$17.43
16
015822 Bearing, Thrust by Allen Enginnering
$213.18
17
015824 Plate, Pro Rider/Walker Pressure (P by Allen Enginnering
$255.47
18
020155 Fstn, Shcs 1/2-13 X 1-1/2, Left Hand Thread by Allen Enginnering
$35.40
19
026215 Yoke, Arm by Allen Enginnering
$207.29
20
026504 Fstn, Shld Blt 3/8 X 1-1/4 by Allen Enginnering
$7.20
23
032863 FSTN, HHCS M8 X 1.25 X 20MM GRD8 by Allen Engineering
$3.99
26
048561 Bearing Assembly F/ Rotor Mount X1 by Allen Enginnering
$145.67
35
071016 FTG, BULK HEAD BRASS 1/4" NPT by Allen Engineering
$24.00
36
071017 FTG, REDUCER HEX NIPPLE 1/4 TO 1/8 NPT by Allen Engineering
$12.96
39
071981 SHAFT SEAL, FOR HELICAL GEARBOX OUTPUT SHAFTS by Allen Engineering
$72.00
View full details
