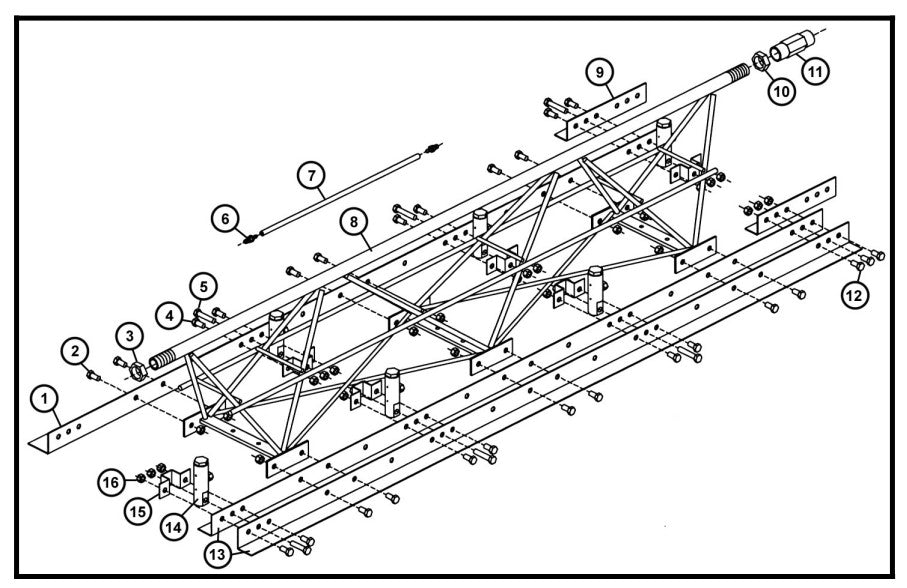

SA12 Assembly 7-1/2' Section By Allen Engineering

SA12 Assembly 7-1/2' Section By Allen Engineering

  • SA12 Assembly 7-1/2' Section By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
104000 Blade, Bullfloat 7.5 Ft 12Ga by Allen Enginnering
$242.03
-
104001 Blade, Bullfloat 7.5 Ft 10Ga by Allen Enginnering
$150.15
2
010067 Fstn, Hhcs 1/2-13 X 1 Gr8 by Allen Enginnering
$3.99
3
108000 Jam Nut Rh (Sx Ed) by Allen Enginnering
$30.24
4
010068 Fstn Hhcs 1/2-13 X 1-1/4 Gr8 by Allen Enginnering
$4.95
12
010068 Fstn Hhcs 1/2-13 X 1-1/4 Gr8 by Allen Enginnering
$4.95
5
011488 Fstn, Hhcs 1/2-20 X 2-1/2 Gr 8 by Allen Enginnering
$7.20
6
010193 Ftg, Pushlok Male 1/4 X 1/4-18 by Allen Enginnering
$13.70
7
013391 Hose, Python Blue 1/4" by Allen Enginnering
$9.00
-
132000 Assy, Hd Air Hose by Allen Enginnering
$56.03
8
016566 Screed Truss, 7 1/2 Fthed Wldmt by Allen Enginnering
$2,191.70
9
106000 Plate, Splice 12Ga by Allen Enginnering
$33.62
-
106001 Plate, Splice 10Ga by Allen Enginnering
$48.56
10
108001 Jam Nut Lh (Sx Ed) by Allen Enginnering
$22.94
11
107000 Coupler, Top Pipe Sx Ed by Allen Enginnering
$287.97
13
102000 Blade, Screed 7.5 Ft 12Ga by Allen Enginnering
$162.47
-
102001 Blade, Screed 7.5 Ft 10Ga by Allen Enginnering
$128.86
14
111000 Vibrator Brass Assy by Allen Enginnering
$257.72
15
020053 Bracket, Brass Vibrator Mount by Allen Enginnering
$13.70
16
010106 Fstn, Nut Hex 1/2-13 Grd8 by Allen Enginnering
$4.95
-
010107 Fstn, Nut Hex 1/2-20 by Allen Enginnering
$4.95
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
