SE12 Crown Invert Bracket Assembly Parts By Allen Engineering

SE12 Crown Invert Bracket Assembly Parts By Allen Engineering

  • SE12 Crown Invert Bracket Assembly Parts By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
010068 Fstn Hhcs 1/2-13 X 1-1/4 Gr8 by Allen Enginnering
$4.95
3
010069 Fstn Hhcs 1/2-13 X 1-1/2 Grd8 by Allen Enginnering
$4.95
4
010072 Fstn, Hhcs 1/2-13 X 2-1/4 Gr8 by Allen Enginnering
$4.99
5
010089 Fstn, Lw 1/4 by Allen Enginnering
$4.95
6
010098 Fstn, Nut Hex 1/4-20 Grd8 by Allen Enginnering
$4.95
7
010106 Fstn, Nut Hex 1/2-13 Grd8 by Allen Enginnering
$4.95
8
010273 Key, 3/16" Sq X 2" Lg by Allen Enginnering
$10.32
11
010434 Blade, 12Hd Rh Crown Invert Scd by Allen Enginnering
$29.04
12
010435 Blade, 12Hd Lh Crown Invert Scrd (P by Allen Enginnering
$29.04
13
010440 Rod Rh Crown Adj by Allen Enginnering
$134.46
14
010441 Rod Lh Crown Adj by Allen Enginnering
$134.46
15
010454 Rod Rh Invert Adj by Allen Enginnering
$53.78
16
010455 Rod-Lh Invert Adj by Allen Enginnering
$57.60
17
016885 Turnbuckle Invert Coupler Assy 4" by Allen Enginnering
$219.62
18
017751 Fstn, Fw 3/8 Hard A325 Grade 8 by Allen Enginnering
$2.99
20
020514 Fstn, Nut Stover Lock 3/8-16 by Allen Enginnering
$4.95
22
022635 Universal Joint Assy Mod,Ed Sc by Allen Enginnering
$608.43
25
040637 Fstn, Hhcs 3/8-16 X 2 1/4 Grade 8 by Allen Enginnering
$4.95
26
046656 Bearing Support Crown Invert Brkt by Allen Enginnering
$170.32
27
046657 Cover, Shaft F/ Nci Crown by Allen Enginnering
$155.75
28
046658 Shaft, Nci Crown Invert by Allen Enginnering
$165.83
29
113000 Nut, End Handle by Allen Enginnering
$59.30
30
114000 Adaptor, Rh Air End Sx by Allen Enginnering
$165.59
32
221165 Hinge Assy by Allen Enginnering
$490.78
1
010008 FSTN, HHCS 1/4-20 X 2-1/4 GR8 by Allen Engineering
$3.99
9
010432 BLADE, 12HD RH CROWN INV BULLFLT (P by Allen Engineering
$26.40
19
018212 HANDLE,CROWN INVERT by Allen Engineering
$812.40
31
115000 Adaptor, Lh Air End Sx by Allen Enginnering
$149.03
View full details

Frequently asked questions

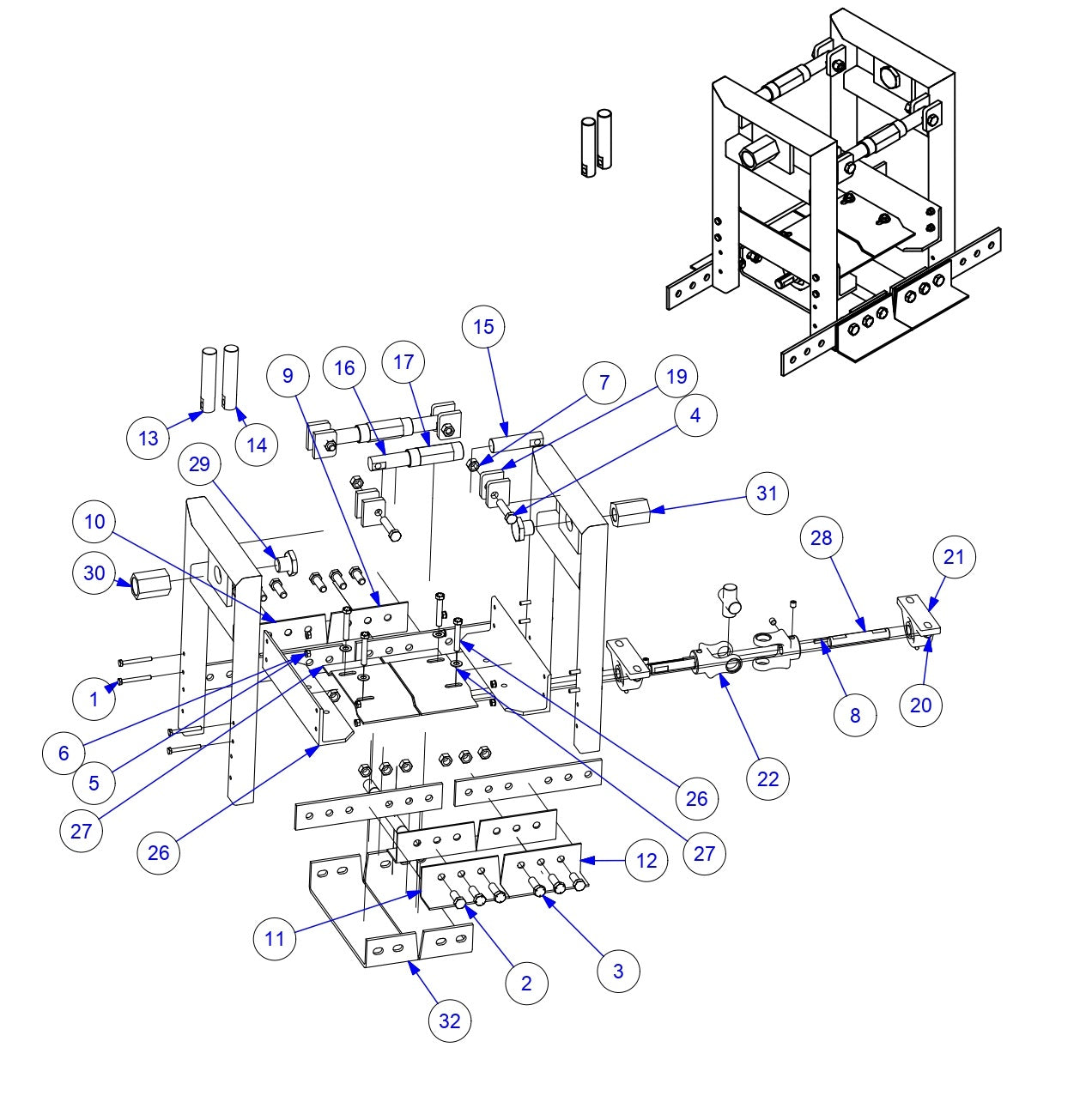

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
