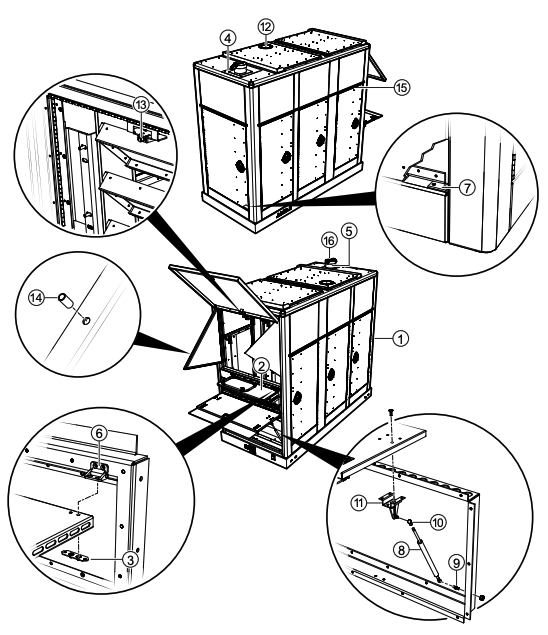

SG1400C4F & SG1600C4F Housing (W/O Bus Door) Assembly Parts

SG1400C4F & SG1600C4F Housing (W/O Bus Door) Assembly Parts

  • SG1400C4F & SG1600C4F Housing (W/O Bus Door) Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
EE56248 Assy,Housing,1600 Amp Studio,Tier 4F by Multiquip
$26,091.67
2
EE56628 Door,Controls,InteliGen,Friction Hinge by Multiquip
$1,228.58
3
EE56649 Nut Plate,Controls Door,Friction Hinge by Multiquip
$34.95
5
EE39267 Assy,Flange & Nipple,6in Low Profile by Multiquip
$147.87
6
EE56645 Hinge,Friction,Csnk,24.7 in-lb Torque,SS - Multiquip
$176.87
8
EE58407 Gas Spring,18.22" Extended,20 Lbs. by Multiquip
$106.58
9
EE58409 Stud,Gas Spring,10mm Ball,Steel by Multiquip
$8.46
10
EE58408 Socket,10mm Ball,M6 Thd,Steel by Multiquip
$17.05
11
EE58425 Angle,Long,Bus Door Gas Spring by Multiquip
$13.55
12
EE16330 Plate, Deck, Plast, Tempress, 6in by Multiquip
$100.25
13
EE10644 Switch,Omron,Enclosed Limit by Multiquip
$446.94
15
EE22204 J-Strip, Bly Finish, Rain Gutter * by Multiquip
$8.27
16
EE16596 Rain Cap,Alum,6in *USE PN: EE64160* by Multiquip
$96.28
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
