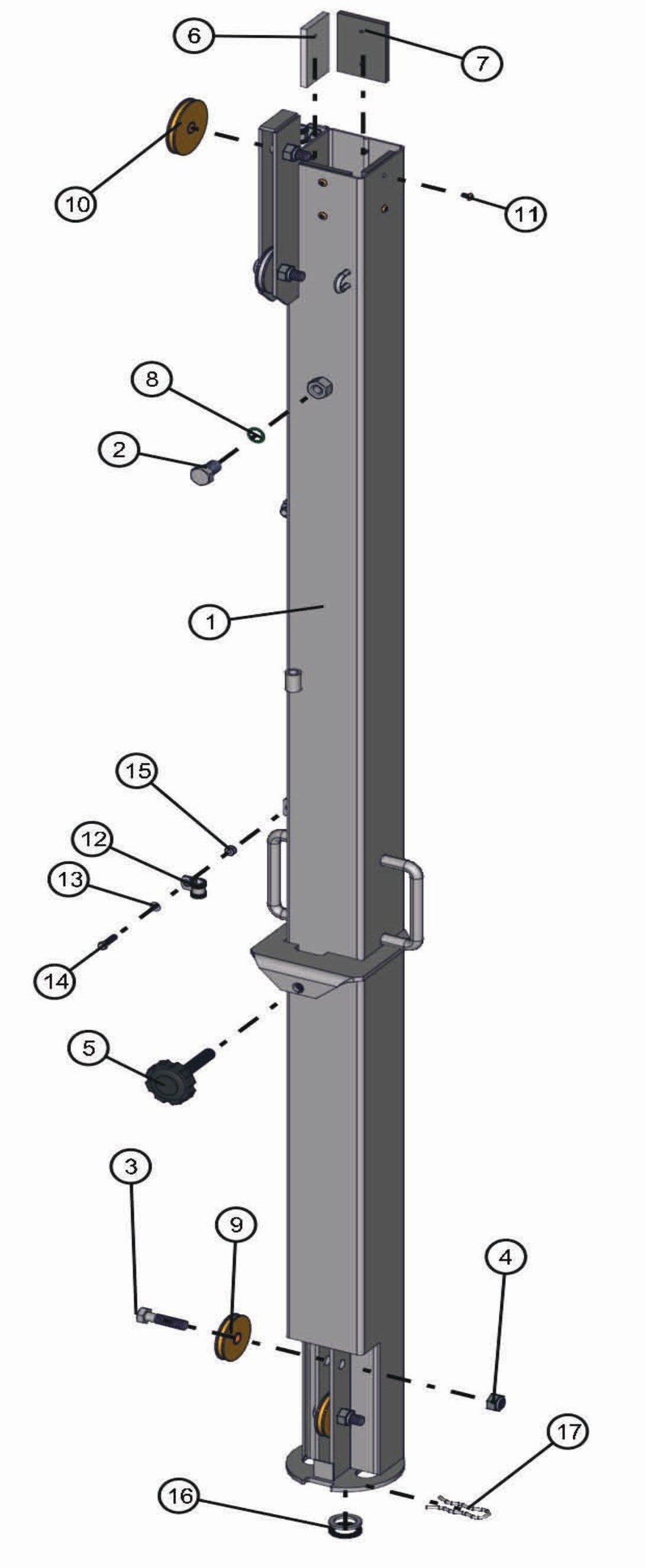

Shed-Lite PAL 4000 GP 4" Tower Section Assembly Parts By Allmand

Shed-Lite PAL 4000 GP 4" Tower Section Assembly Parts By Allmand

  • Shed-Lite PAL 4000 GP 4" Tower Section Assembly Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
046242 5/8-11 X 1 Hex Head Cs Gr5 Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
3
046200 1/2-13 X 2 1/4 Hex Head Cs Gr5 Pl for Night-Lite Pro Ii Ld-Series (0877Pro214 To 9999Pro216) Light Towers by Allmand
$2.99
4
044048 1/2-13 Nylock Hex Nut Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
5
620550 1/2-13 X 2 1/8 Locking Knob for Night-Lite Pro Ii Ld-Series (0877Pro214 To 9999Pro216) Light Towers by Allmand
$27.20
6
352280 Plastic Tower Pad 5/16 Short for Maxi-Lite 15330 & 20422 Light Towers by Allmand
$14.63
8
043100 5/8 Int Lock Washer for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
9
320112 2 1/2 Pulley With Bushing for Maxi-Lite 15330 & 20756 Light Towers by Allmand
$58.83
10
320110 Pulley 3 Od With Bushing for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$102.26
11
041023 #10 X 3/8 Pls for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
12
310212 Clamp Cush #10 1/4 Hole for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
13
047009 1/4 Sae Ss Fw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
14
046015 1/4-20 X 1 Hex Bolt for Night-Lite Pro V-Series Ce Light Towers by Allmand
$2.99
15
044023 1/4-20 Nylock Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
16
047055 1” Narrow Rim Plated Machine Bushing for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$4.88
17
620545 3/4 Plated Hairpin Clip for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$2.99
1
Call for Price call for price call for price
7
Call for Price call for price call for price
