CA4HM Spider Assembly Parts by Multiquip Whiteman

CA4HM Spider Assembly Parts by Multiquip Whiteman

  • Spider Assembly Parts for CA4HM Trowels by Multiquip Whiteman
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
11299 Screw, Shs 5/16-18 X 9/16 Cone Pt for CA4HC Walk Behind Trowel by Multiquip Whiteman
$4.50
4
10587 Arm Retaining Assy, Short for CA4HC Walk Behind Trowel by Multiquip Whiteman
$15.07
9
10768 Arm, Trowel W/A for CA4HC Walk Behind Trowel by Multiquip Whiteman
$70.43
11
0181 B Lock Washer 1/4" for HTH Series Walk Behind Trowels by Multiquip Whiteman
$2.19
12
30148 Spring, Trowel Arm Ca4 for Multiquip Whiteman CA4HM Walk Behind Trowel
$13.21
13
11860 Spider Asm for CA4HC Walk Behind Trowel by Multiquip Whiteman
$625.22
1
10563 Spider Plate, 1-1/8 Shaft 4Bld Ca4 for Multiquip Whiteman CA4HM Walk Behind Trowel
$278.03
3
1875 Washer, Int. Shkp, 3/8 for Multiquip Whiteman CA4HM Walk Behind Trowel
$16.27
5
1162 A Cap, Grease Zerk #2 Yellow for CA4HM Trowels by Multiquip Whiteman
$4.39
6
0166 A Washer, Lock, 3/8 Med. for Multiquip Whiteman CA4HM Walk Behind Trowel
$4.39
7
0164 B Screw,Trowel Adjustment 3/8-16 for Multiquip Whiteman CA4HM Walk Behind Trowel
$4.39
8
1876 Nut, Hex Jam 3/8-16 Class 2B for Multiquip Whiteman CA4HM Walk Behind Trowel
$4.39
10
10790 Screw, Hhc M6- 1 X 30Mm for Multiquip Whiteman CA4HM Walk Behind Trowel
$4.39
View full details

Frequently asked questions

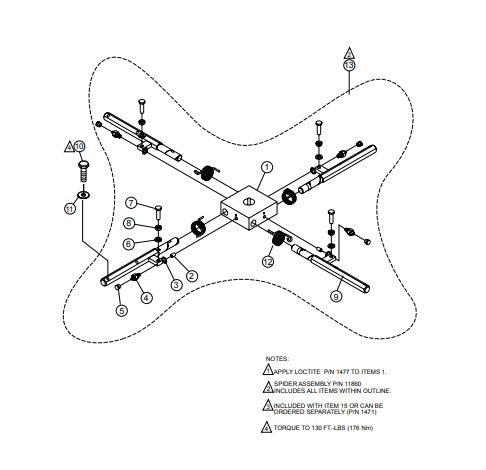

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
