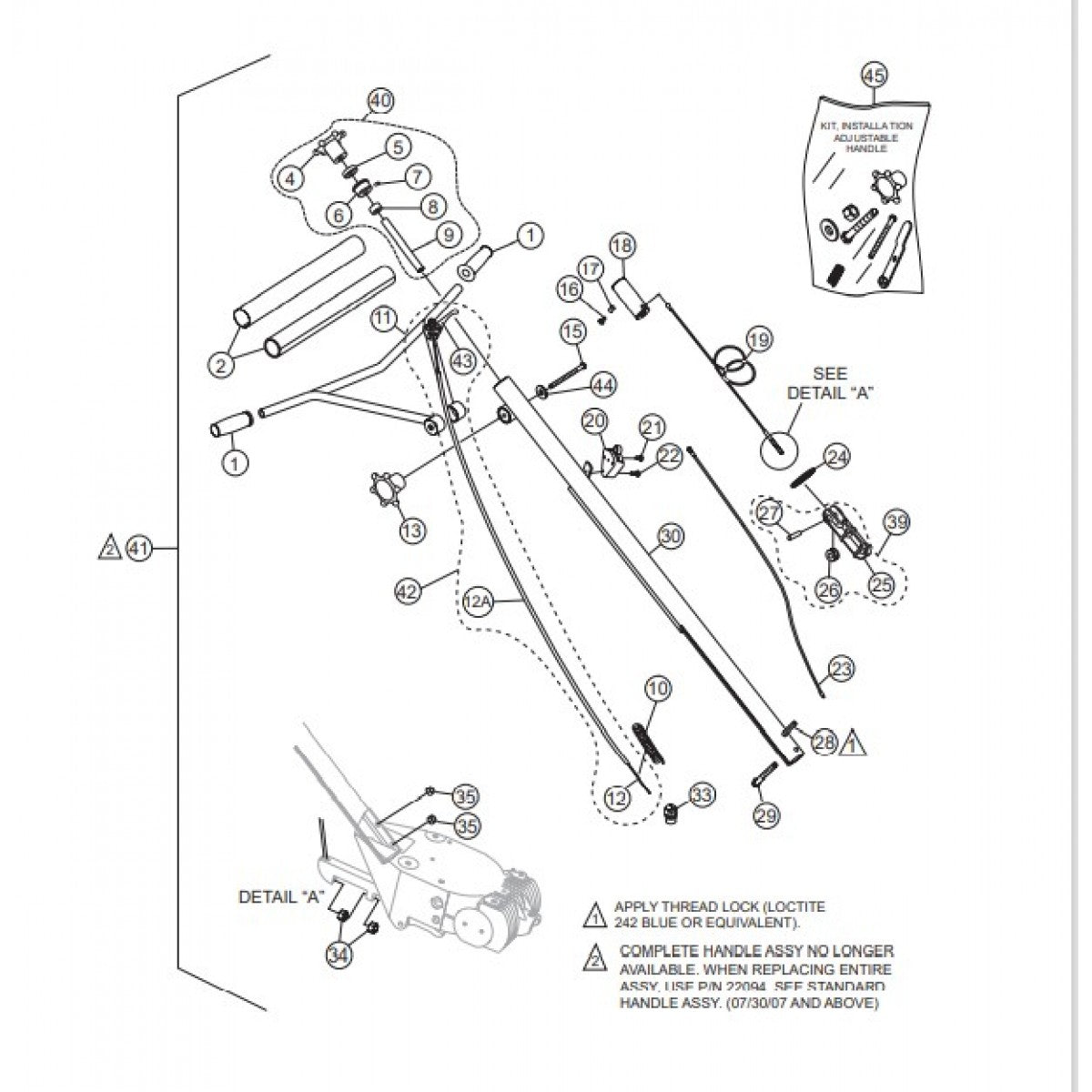

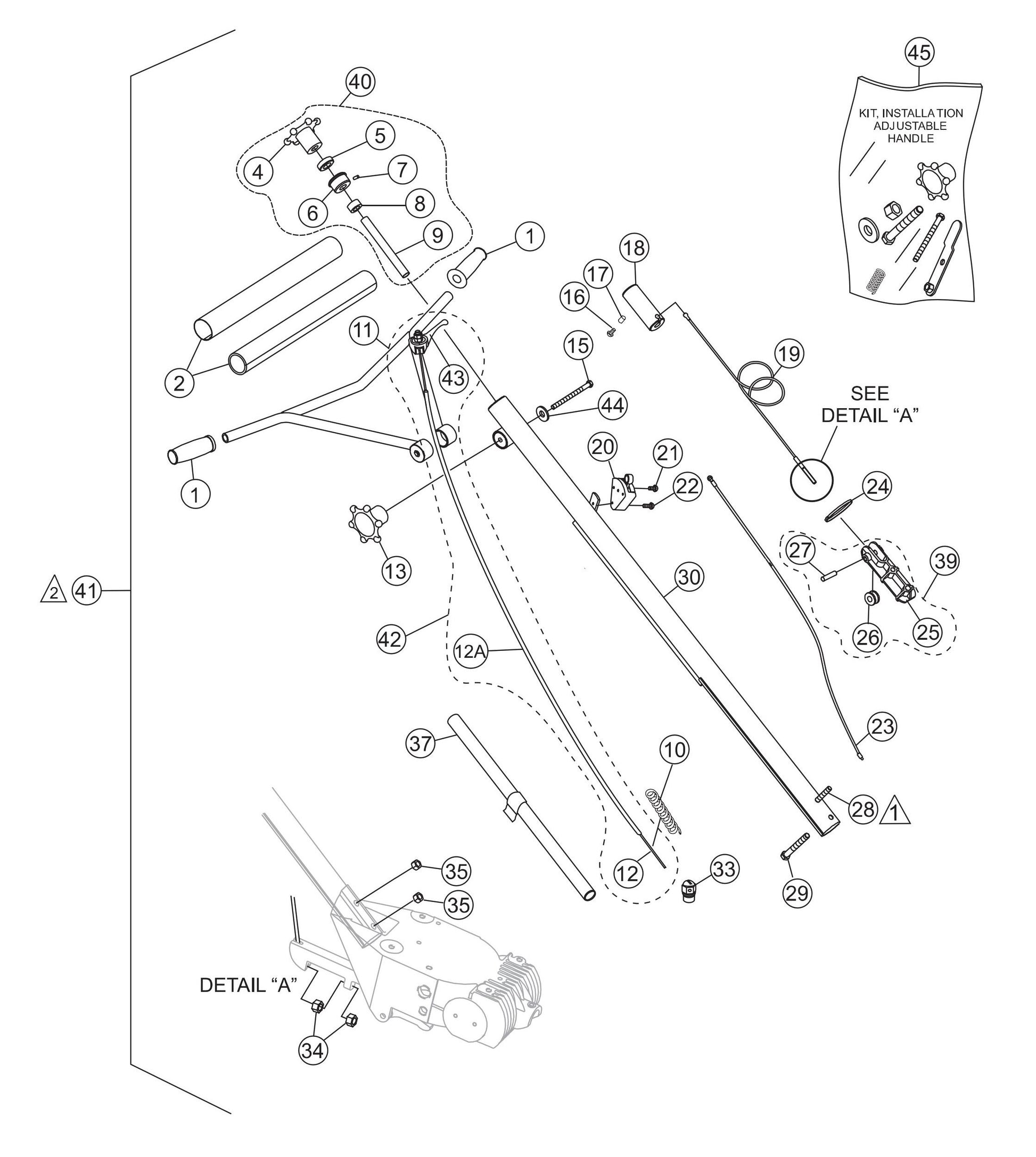

B46 Series Standard Handle Assembly Parts by Multiquip Whiteman

B46 Series Standard Handle Assembly Parts by Multiquip Whiteman

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
22762 Grip, Handle for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$10.85
2
20774 Cover, Pad Handle for J36 M30 Walk Behind Trowels by Multiquip Whiteman
Call for Price call for price call for price
4
20817 Wheel, Hand for SP118 Walk Behind Flat Concrete Saw by Multiquip
$24.58
5
0281 Bearing for J Series Walk Behind Trowels by Multiquip Whiteman
$10.23
6
20282 Bearing, Trowel Control for BH90C BH11C BS90C Walk Behind Trowels by Multiquip Whiteman
$21.10
7
0122C Screw, Shs 3/8-16 X 1/2 for JA Series Walk Behind Trowels by Multiquip Whiteman
$2.19
8
3615 Collar, Set 3/4 Id for CA4HC Walk Behind Trowel by Multiquip Whiteman
$2.99
9
1478 Shaft, Trowel Control for BH90C BH11C BS90C Walk Behind Trowels by Multiquip Whiteman
$15.03
10
21746 Spring, 0.42 Od X 2.5L, Throttle Rtn. for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$6.99
11
12556 Handle, Adjustable for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$79.34
12
21172 Cable Throttle 70" For BH11C-Series Whiteman Walk-Behind Power Trowels By Multiquip
$7.99
12A
21173 Housing, Cable 63" for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$14.47
13
20439 Wheel Assembly, Hand for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$41.71
15
20438 Screw, Hhc 3/8-16 X 5.00 for JA Series Walk Behind Trowels by Multiquip Whiteman
$2.19
16
0786 A Spacer, Slide Block Guide for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$5.25
17
0786A Spacer for J Series Walk Behind Trowels by Multiquip Whiteman
$5.25
18
20287 Slide Block Trowel Control for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$52.67
19
20285 Cable, Control, Std for JH55C JH90C JS60C Walk Behind Trowels by Multiquip Whiteman
$32.05
20
20856 Safety Switch for JA Series Walk Behind Trowels by Multiquip Whiteman
$45.76
21
1602 Nut For Apt-137 by Tamco Toku
$5.99
22
20988 Screw, Fhsc Phillips 8-32 X 1 1/4 for JA Series Walk Behind Trowels by Multiquip Whiteman
$2.19
23
20514 Wire Assy., Centrifugal Stop Switch for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$4.25
24
1662 Tie, Cable Ty-Rap Black for SP2 13H20 S13H20 S20H20 Flat Concrete Saw by Multiquip
$2.19
25
20275 Block, Support for BH90C BH11C BS90C Walk Behind Trowels by Multiquip Whiteman
$19.12
26
1118 Pulley, Pitch Cable for J36E2 SN LE0118040 and above Walk Behind Trowels by Multiquip Whiteman
$9.67
27
20279 Pin, Support Block for BH90C BH11C BS90C Walk Behind Trowels by Multiquip Whiteman
$3.85
28
21017 Screw, Hhc 3/8"-16 X 3-1/4" Full Grd 5 for BH90C BH11C BS90C Walk Behind Trowels by Multiquip Whiteman
$3.85
29
1493 Screw, Hhc 3/8"-16 X 3-1/4" for BH90C BH11C BS90C Walk Behind Trowels by Multiquip Whiteman
$1.99
30
12567 Handle, J/B Std for JA Series Walk Behind Trowels by Multiquip Whiteman
Call for Price call for price call for price
33
20845 Swivel Assembly for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$14.89
34
1116 Brass Jam Nut 5/16- 18 for Multiquip Whiteman C42H Finisher Walk Behind Trowel
$1.99
35
10133 Lock Nut 3/8- 16 for Multiquip Whiteman C42H Finisher Walk Behind Trowel
$2.19
39
20280 Block, Cable Assembly for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$25.37
40
20819 Hand Wheel Assembly, Pitch Control for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$105.76
42
21243 Kit, Throttle For B46 Series Whiteman Walk-Behind Power Trowels By Multiquip
$42.00
43
21171 Throttle Lever for J36 M30 Walk Behind Trowels by Multiquip Whiteman/22732
$28.08
44
3233 Washer, Fender 1.5 O.D X 3/8 Id. for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$2.19
45
20493 Kit, Installation Adjustable Handle for J36 M30 Walk Behind Trowels by Multiquip Whiteman
$31.52
