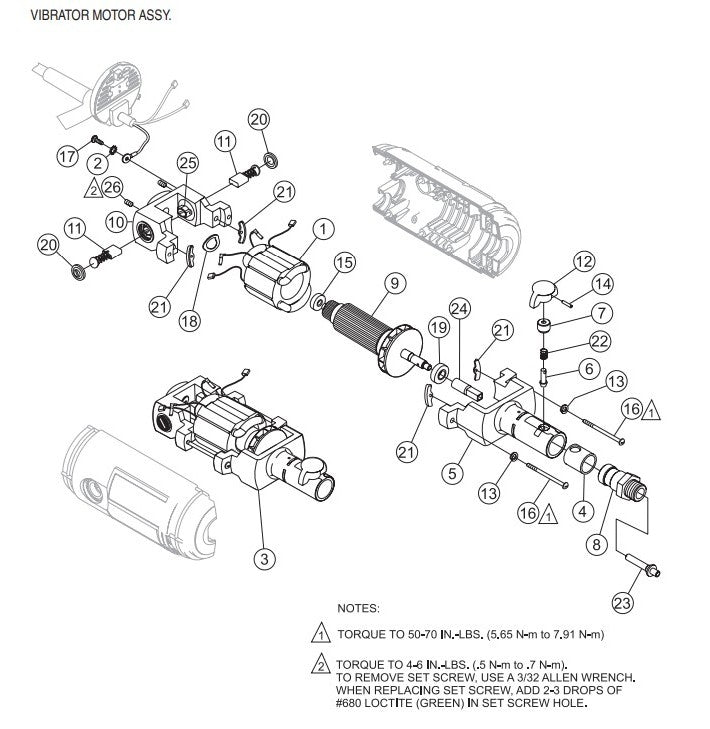

Vibrator Motor Assembly Parts- SVA-1, SVA-2, SVA-2E, SVA-3, SVA-3E SVA-series

Vibrator Motor Assembly Parts- SVA-1, SVA-2, SVA-2E, SVA-3, SVA-3E SVA-series

  • Vibrator Motor Assembly Parts- SVA-1, SVA-2, SVA-2E, SVA-3, SVA-3E SVA-series
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3061-045 Field Assy, 1Hp 115V Sva-1 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$128.33
1
3061-044 Field Assy, 2Hp 115V Sva-2 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$138.02
1
3061-047 Field Assy, 2Hp 230V Sva-2 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$135.97
1
3061-043 Field Assy, 3Hp 115V Sva-3 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$152.43
1
3061-046 Field Assy, 3Hp 230V Sva-3 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$163.09
2
52003-12 Washer, Star #10 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$4.39
3
1000-055 Motor Assy, 1Hp 115V Sva-1 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$663.15
3
1000-056 Motor Assy, 2Hp 115V Sva-2 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$595.37
3
1000-057 Motor Assy, 2Hp 230V Sva-2 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$687.00
3
1000-058 Motor Assy, 3Hp 115V Sva-3 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$699.98
3
1000-059 Motor Assy, 3Hp 230V Sva-3 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$709.77
4
6100-003 Bushing, Bronze Wear for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$22.91
5
8100-015 End Bell Assy, Output 1Hp for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$232.34
5
8100-016 End Bell Assy, Output 2Hp for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$270.91
5
8100-017 End Bell Assy, Output 3Hp for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$255.58
6
7200-001 Lock Pin, Quick Disconnect for CV Series Flex Shaft Concrete Vibrators by Multiquip
$16.57
7
7200-002 Housing, Spring for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$20.41
8
7200-004 Shaft Coupling, Qd 314V (Sva-1) for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$67.07
8
7200-003 Shaft Coupling, Qd 382V (Sva-2/2E-3/3E) for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$86.35
9
8001-045 Armature & Bearing Assy, 1Hp 115V Sva-1 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$182.34
9
8001-044 Armature & Bearing Assy, 2Hp 115V Sva-2 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$205.71
9
8001-047 Armature & Bearing Assy, 2Hp 230V Sva-2 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$189.49
9
8001-043 Armature & Bearing Assy, 3Hp 11511 Sva-3 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$193.67
9
8001-046 Armature & Bearing Assy, 3Hp 230V Sva-3 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$192.39
10
8005-030 End Bell Assy, Comm. for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$132.90
11
43000-03 Brush Assy, Carbon for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
Call for Price call for price call for price
12
50125-04 Knob, Plastic Quick Disconnect for BPX Flex Shaft Concrete Vibrators by Multiquip
$16.93
13
52003-05 Washer, Lock #10 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$4.39
14
53002-09 Pin, Slotted Pin 5/32 X 1 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.39
15
55005-03 Bearing, Rear for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$7.47
16
53001-14 Screw, #10-32 X 4.00 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$2.83
17
53101-04 Screw, Ground 10 - 32 X .375 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$4.39
18
56000-06 Wave Spring for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$4.76
19
55008-03 Bearing, Front for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$8.42
20
57001-02 Cap, Brush for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$3.99
21
59001-06 Insulator, Plastic Field for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$3.82
22
59999-08 Spring, Compression for CV Series Flex Shaft Concrete Vibrators by Multiquip
$5.57
23
90004-03 Shaft, Spindle 314V Sva-1 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$69.12
23
90004-01 Shaft, Spindle 382V Sva-2/2E-3/3E for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$33.31
24
90004-02 Drive Coupler, Quick Disconnect for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$64.90
25
57000-03 Brush Holder for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$17.40
26
53051-01 Brush Holder Set Screw #10-32 X .375 for SVA Series Stow Flex Shaft Concrete Vibrators by Multiquip
$4.39
