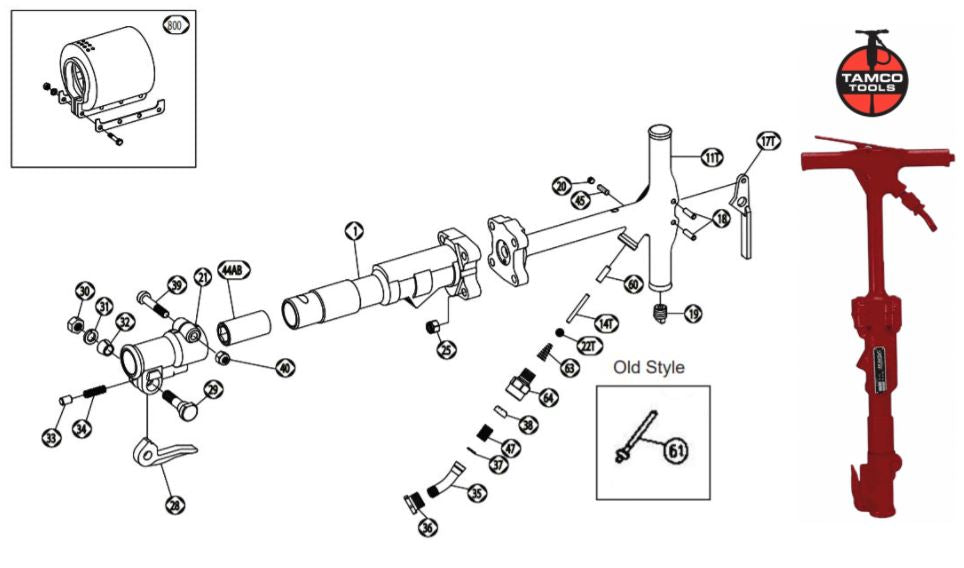

TD30, TRC-30 Trench Digger Assembly Parts

TD30, TRC-30 Trench Digger Assembly Parts

  • TD30 Clay Digger (Trencher) Replacement Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
410201010 Cylinder for TD 30 Trencher by Tamco Harper 66301 Thor 43026 Jet PB30-01 Kent K06145
$852.44
11T
410221480 Back Head for TD 30 Trencher by Tamco Harper 66309 Thor 44011 Jet TD30-11 APT 91159
$1,034.48
11TCP
41022148A Back Head Complete for TD 30 Trencher by Tamco Harper 66368 Thor 45294
$1,514.38
14T
410221E00 Throttle Pin for TD 30 Trencher by Tamco
$23.90
17T
410221310 Throttle Lever for TD 30 Trencher by Tamco Harper 66316 Thor 48879 Jet TD30-17T APT 1819
$53.65
18
410201330*** Throttle Lever Pin for TD 30 Trencher by Tamco Harper 66918 Thor 43393 Jet PB30-18 APT 105
$7.53
19
134905012 Oil Plug (NPTF) for TD 30 Trencher by Tamco Harper 66319 Jet PB30-19 APT 209
$12.50
20
134903001 Oil Control Plug (PP-2 PT 1/8”) for TD 30 Trencher by Tamco Harper 66920 Thor 68073 Jet PB30-20 Kent
$5.99
21
410201530 Front Head for TD 30 Trencher by Tamco Harper 66321 Thor 43783 Jet PB30-18 Kent K01283 APT 3143
$407.16
21CP
41020153D Front Head (Complete) for TD 30 Trencher by Tamco Harper 66369 Kent KBM06146 APT 3143
$931.40
22T
130505036 Throttle Valve Ball 9/16” for TD 30 Trencher by Tamco
$16.27
25
134201012 Nylon Nut (UNF 1/2”) for TD 30 Trencher by Tamco Harper 66325 Thor 49019 Jet PB30-21 Kent K00694
$5.99
28
410201610 Steel Retainer for TD 30 Trencher by Tamco Harper 66328 Thor 43784 Kent K01137 APT 893
Call for Price call for price call for price
29
410201621 Steel Retainer Bolt for TD 30 Trencher by Tamco Harper 66329 Thor 43787 Jet PB30-23
$39.10
30
134601016*** Nylon Nut (UNF 5/8”) for TD 30 Trencher by Tamco Jet PB30-25 Kent K00520
$16.00
31
131301116 Spring Washer M16 for TD 30 Trencher by Tamco Harper 66924 Thor 46897 Jet PB30-28 Kent K09847
$3.99
32
410201640 Steel Retainer Bolt Bushing for TD 30 Trencher by Tamco Harper 66332 Thor 43786 Jet PB30-29 Kent K00667
$16.59
33
410201650 Steel Retainer Plunger for TD 30 Trencher by Tamco Harper 66333 Thor 43788 Jet PB30-30 Kent K02034 APT 207
Call for Price call for price call for price
34
130801028 Steel Retainer Spring for TD 30 Trencher by Tamco Harper 66334 Thor 43785 Jet TS-50101 Kent K02033
$12.85
35
410201370 Air Inlet Swivel for TD 30 Trencher by Tamco Harper 66335 Thor 43791 Jet PB30-35 Kent K06116
$66.76
36
410201390 Air Inlet Swivel Nut for TD 30 Trencher by Tamco Harper 66336 Thor 43792 Jet PB30-36 Kent K06113
$49.74
37
131103014 O-Ring (S-16) for TD 30 Trencher by Tamco Harper 66346 Thor 91108 Jet PB30-37 Kent K02278
$3.99
38
136801005 Air Inlet Screen for TD 30 Trencher by Tamco Harper 66338 Thor 43044 Jet PB30-38 Kent K02043
$11.78
39
410201540 Front Head Bolt for TD 30 Trencher by Tamco Harper 66339 Thor 47947 Jet PB30-36
$20.90
40
134201012 Nylon Nut (UNF 1/2”) for TD 30 Trencher by Tamco Harper 66340 Thor 91126 Jet PB30-37 Kent K00694
$5.99
44A
410201570 Front Head Bushing 7/8” for TD 30 Trencher by Tamco Harper 66343 Thor 43024 Kent K01280 APT 191
$99.94
44B
410205570 Front Head Bushing 1” for TD 30 Trencher by Tamco Harper 66344 Thor 43025 Jet PB30-38 Kent K01282 APT 192
$99.94
45
136101011*** Oil Control Felt for TD 30 Trencher by Tamco Harper 66945 Thor 43473 Jet PB30-45 APT 112
$5.99
47
130801027 Air Inlet Swivel Spring for TD 30 Trencher by Tamco Harper 66347 Thor 47754 Jet PB30-47 Kent K06114
$7.53
60
410221300 Throttle Valve Stem Guide for TD 30 Trencher by Tamco Harper 66360 Thor 61952 Jet TD30-60 Kent APT 212
$27.08
61
410221270 Throttle Valve for TD 30 Trencher by Tamco Harper 66361 Thor 43761 Jet TD30-61 APT 3360
$102.35
63
130801030 Throttle Valve Spring for TD 30 Trencher by Tamco Harper 66363 Thor 44007 Jet TD30-63 APT 1821
$10.34
64
410221790 Screw Bushing for TD 30 Trencher by Tamco Harper 66364 Thor 47995 Jet TD30-64
$45.43
800
41020187C Muffler for TD 30 Trencher by Tamco Harper Thor Jet Kent Muffler APT
$289.92
