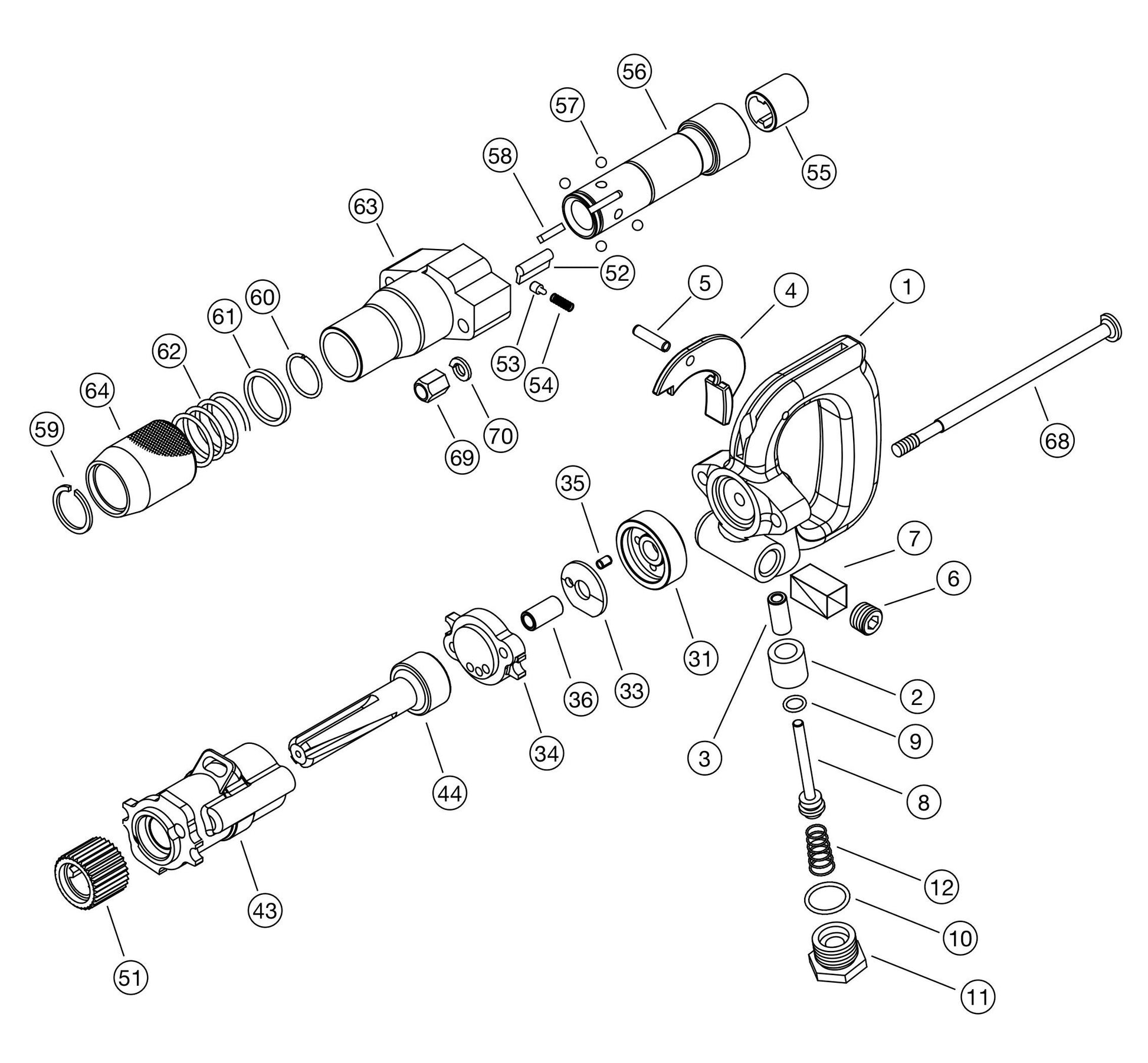

TH-800 Rock Drill Assembly Parts

TH-800 Rock Drill Assembly Parts

  • TH-800 Rock Drill Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
430430A00 Handle Th-800 by Tamco Toku
$419.34
2
430430D50 Throttle Valve Bushing Th-800 by Tamco Toku
$36.01
3
430430N00 Plunger Bushing Th-800 by Tamco Toku
$35.64
4
430430D40 Throttle Lever Th-800 by Tamco Toku
$54.02
5
130606025 Spring Pin 6 X 25 Th-800 by Tamco Toku
$5.99
6
134901003 Plug Pt 3/8 Pp-2 Th-800 by Tamco Toku
$11.78
7
136303011 Lubricator Felt Th-800 by Tamco Toku
$10.09
8
430430D60 Throttle Valve Th-800 by Tamco Toku
$45.71
9
131108009 O Ring P-10A (Hs90) Th-800 by Tamco Toku
$5.99
10
131101020 O Ring (P-22) T-6 & Th-800 by Tamco Toku
$5.99
11
430430M60 Inlet Adaptor Npt 3/8 Th-800 by Tamco Toku
$74.83
12
130803062 Throttle Valve Spring Th-800 by Tamco Toku
$7.68
31
430432C40 Valve Chest Th-800 by Tamco Toku
$196.71
33
430432C00 Valve Th-800 by Tamco Toku
$77.35
34
430432C2B Valve Seat Th-800 by Tamco Toku
$196.71
35
130605008 Spring Pin 5 X 8 Th-800 by Tamco Toku
$4.99
36
430432C10 Valve Guide Th-800 by Tamco Toku
$28.15
43
430430D00 Cylinder Th-800 by Tamco Toku
$349.03
44
430430R70 Piston Th-800 by Tamco Toku
$325.53
51
430442K40 Ratchet Ring Th-800 by Tamco Toku
$166.32
52
430430K50 Rotation Pawl Th-800 by Tamco Toku
$35.26
53
430432N20 Pawl Plunger Th-800 by Tamco Toku
$13.17
54
130803075 Pawl Spring Th-800 by Tamco Toku
$7.68
55
430430L00 Guide Nut Th-800 by Tamco Toku
$135.72
56
430432E90 Chuck Th-800 by Tamco Toku
$419.34
57
430432L90 Steel Ball M6 Th-800 by Tamco Toku
$7.68
58
130409011 Retainer Key Th-800 by Tamco Toku
$11.07
59
130803065 Retainer Ring (F) Th-800 by Tamco Toku
$10.45
60
130803064 Retainer Ring (R) Th-800 by Tamco Toku
$7.68
61
430430L20 Thrust Ring Th-800 by Tamco Toku
$12.22
62
130803066 Retainer Spring Th-800 by Tamco Toku
$24.14
63
430430E5B Front Cover Cp Th-800 by Tamco Toku
$302.21
64
430430P20 Steel Retainer (Ball Type) Th-800 by Tamco Toku
$81.94
68
131503041 Through Bolt Th-800 by Tamco Toku
$27.26
69
134203012 Through Bolt Nut Th-800 by Tamco Toku
$16.80
70
131301008 Spring Wahser M8 Th-800 by Tamco Toku
$4.99
